Nissan Maxima Service and Repair Manual: Precaution
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT
PRE-TENSIONER", used along with a front seat belt, helps to reduce the risk
or severity of injury to the driver and front passenger for certain types of
collision. This system includes seat belt switch inputs and dual stage front air
bag modules. The SRS system uses the seat belt switches to determine the
front air bag deployment, and may only deploy one front air bag, depending on
the severity of a collision and whether the front occupants are belted or
unbelted.
Information necessary to service the system safely is included in
the SR and SB section of this Service Manual.
WARNING:
- To avoid rendering the SRS inoperative, which could increase the
risk of personal injury or death in the event of a collision which would
result in air bag inflation, all maintenance must be performed by an
authorized NISSAN/INFINITI dealer.
- Improper maintenance, including incorrect removal and
installation of the SRS, can lead to personal injury caused by
unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SR section.
- Do not use electrical test equipment on any circuit related to
the SRS unless instructed to in this Service Manual. SRS wiring harnesses
can be identified by yellow and/or orange harnesses or harness
connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
- When working near the Airbag Diagnosis Sensor Unit or other Airbag
System sensors with the Ignition ON or engine running, DO NOT use air or
electric power tools or strike near the sensor(s) with a hammer. Heavy
vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.
- When using air or electric power tools or hammers, always switch
the Ignition OFF, disconnect the battery, and wait at least 3 minutes
before performing any service.
Precaution for Work
- When removing or disassembling each component, be careful not to
damage or deform it. If a component may be subject to interference, be
sure to protect it with a shop cloth.
- When removing (disengaging) components with a screwdriver or
similar tool, be sure to wrap the component with a shop cloth or vinyl
tape to protect it.
- Protect the removed parts with a shop cloth and prevent them from
being dropped.
- Replace a deformed or damaged clip.
- If a part is specified as a non-reusable part, always replace it
with a new one.
- Be sure to tighten bolts and nuts securely to the specified
torque.
- After installation is complete, be sure to check that each part
works properly.
- Follow the steps below to clean components: - Water soluble
dirt:
- Dip a soft cloth into lukewarm water, wring the water out of the
cloth and wipe the dirty area.
- Then rub with a soft, dry cloth.
- Oily dirt:
- Dip a soft cloth into lukewarm water with mild detergent
(concentration: within 2 to 3%) and wipe the dirty area.
- Then dip a cloth into fresh water, wring the water out of the
cloth and wipe the detergent off.
- Then rub with a soft, dry cloth.
- Do not use organic solvent
such as thinner, benzene, alcohol or gasoline.
- For genuine leather
seats, use a genuine leather seat cleaner.
PREPARATION

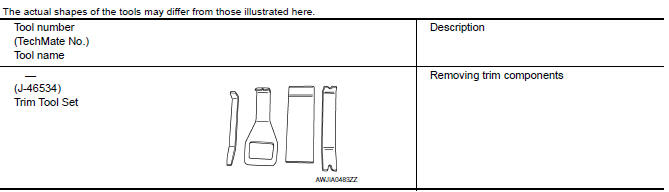

Special Service Tool
ADP SYSTEM SYMPTOMS
Symptom Table
SYMPTOM 1
SYMPTOM 2
SYMPTOM 3
SYMPTOM 4
SYMPTOM 5
NORMAL OPERATING CONDITION
Description
The following symptoms are normal operations, and they do ...
