Nissan Maxima Service and Repair Manual: Symptom diagnosis
ADP SYSTEM SYMPTOMS
Symptom Table

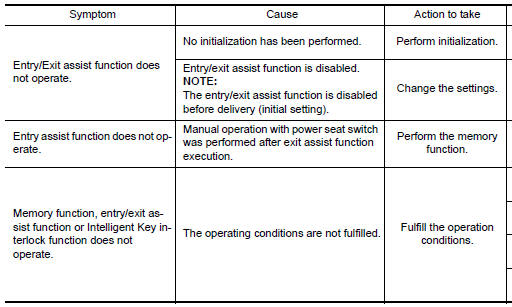

SYMPTOM 1

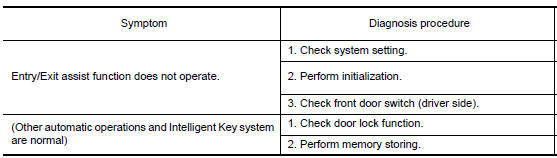

SYMPTOM 2

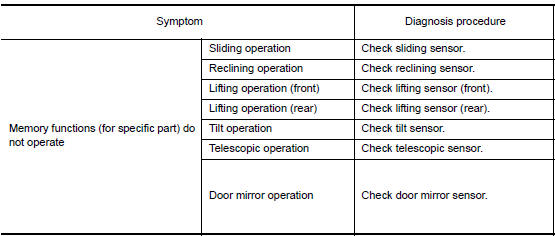

SYMPTOM 3

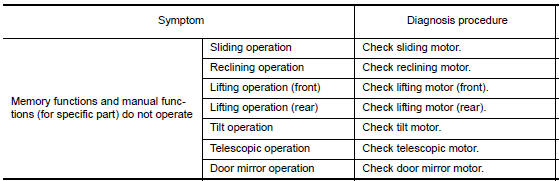

SYMPTOM 4

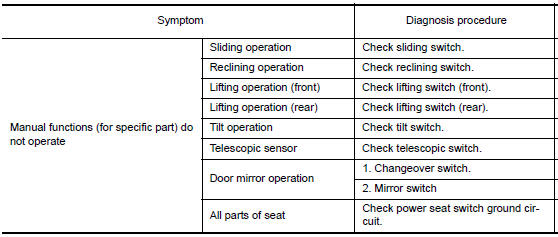

SYMPTOM 5
NORMAL OPERATING CONDITION
Description
The following symptoms are normal operations, and they do not indicate a malfunction.
Wiring diagram
AUTOMATIC DRIVE POSITIONER
Wiring Diagram
...
Precaution
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT
PRE-TENSIONER", used alo ...
