Nissan Maxima Service and Repair Manual: Inside mirror

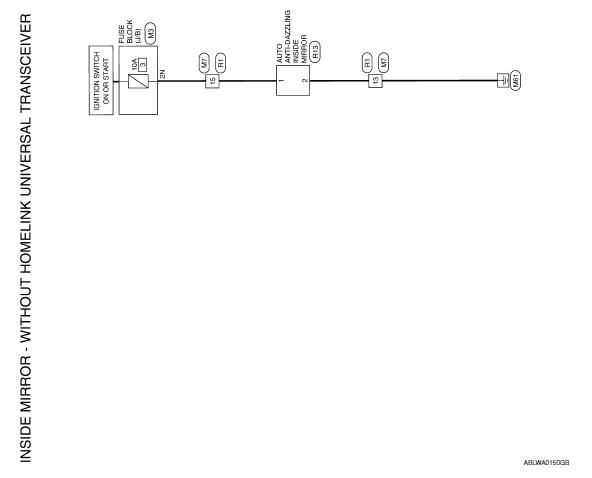

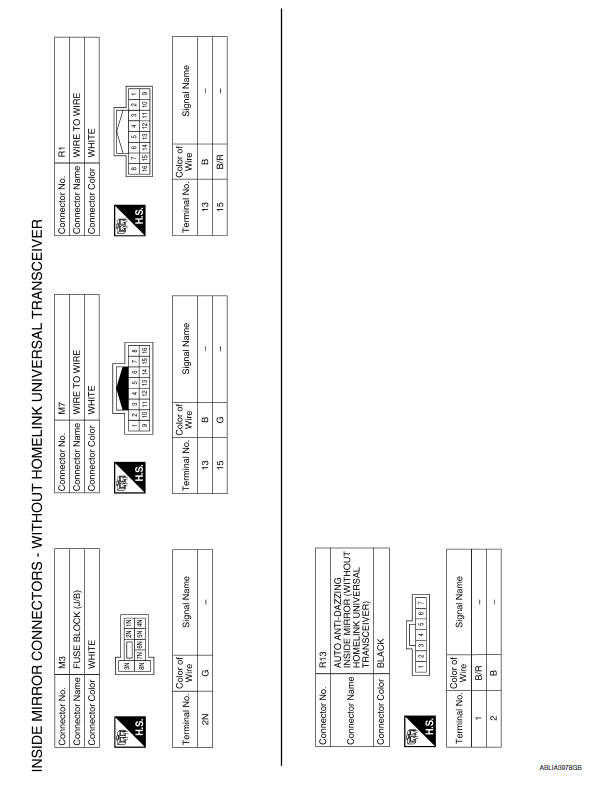

Wiring Diagram - Without Homelink Universal Transceiver

Nissan Maxima. Wiring Diagram - Without Homelink Universal Transceiver

Nissan Maxima. Wiring Diagram - Without Homelink Universal Transceiver

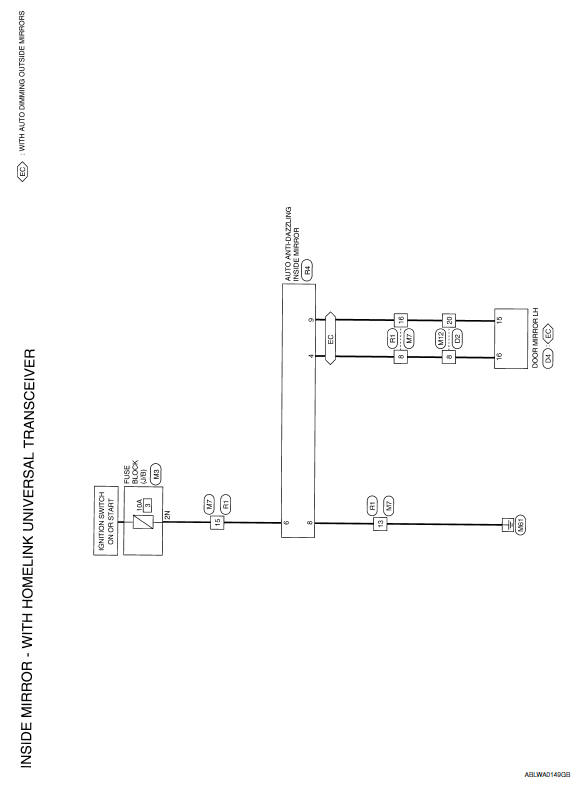

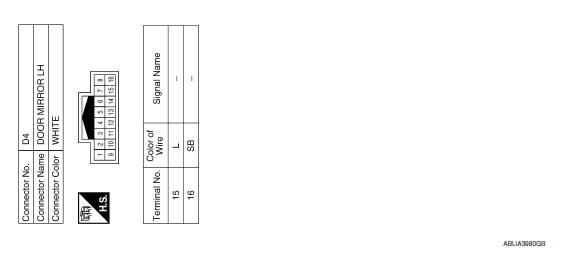

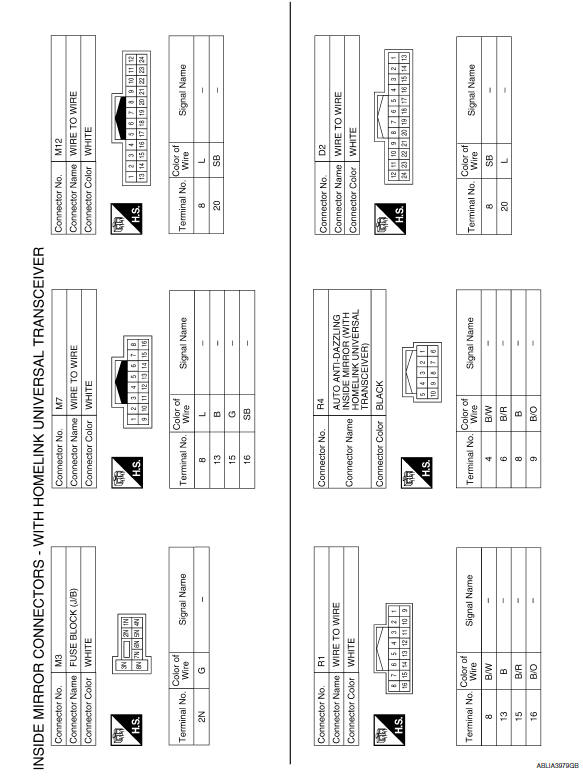

Wiring Diagram - With Homelink Universal Transceiver

Nissan Maxima. Wiring Diagram - With Homelink Universal Transceiver

Nissan Maxima. Wiring Diagram - With Homelink Universal Transceiver

Nissan Maxima. Wiring Diagram - With Homelink Universal Transceiver

    Wiring diagram
    ...

    Door mirror
    Wiring Diagram - Without Automatic Drive Positioner ...
