Nissan Maxima Service and Repair Manual: Trouble diagnosis - specification value

Description

The specification (SP) value indicates the tolerance of the value that is displayed in "SPEC" of "DATA MONITOR" mode of CONSULT during normal operation of the Engine Control System. When the value in "SPEC" in "DATA MONITOR" mode is NOT within the SP value, the Engine Control System may have one or more malfunctions.

The SP value is used to detect malfunctions that may affect the Engine Control System, but will not illuminate the MIL.

The SP value will be displayed for the following three items:

  • B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board correction)
  • A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
  • MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)

Component Function Check

1.START

Check that all of the following conditions are satisfied.

  • Vehicle driven distance: More than 5,000 km (3,107 miles)
  • Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm2, 14.25 - 15.12 psi)
  • Atmospheric temperature: 20 - 30C (68 - 86F)
  • Engine coolant temperature: 75 - 95C (167 - 203F)
  • Transmission: Warmed-up - After the engine is warmed up to normal operating temperature, drive vehicle until "ATF TEMP SEN" in "DATA MONITOR" mode of "CVT" system indicates less than 0.9 V.
  • Electrical load: Not applied - Rear window defogger switch, air conditioner switch lighting switch are OFF. Steering wheel is straight ahead.
  • Engine speed: Idle

2.PERFORM "SPEC" OF "DATA MONITOR" MODE

With CONSULT

NOTE: Perform "SPEC" in "DATA MONITOR" mode in maximum scale display.

  1. Perform "EC-14, "BASIC INSPECTION : Special Repair Requirement".
  2. Select "B/FUEL SCHDL", "A/F ALPHA-B1", "A/F ALPHA-B2" and "MAS A/F SE-B1" in "SPEC" of "DATA MONITOR" mode with CONSULT.
  3. Check that monitor items are within the SP value.

Diagnosis Procedure

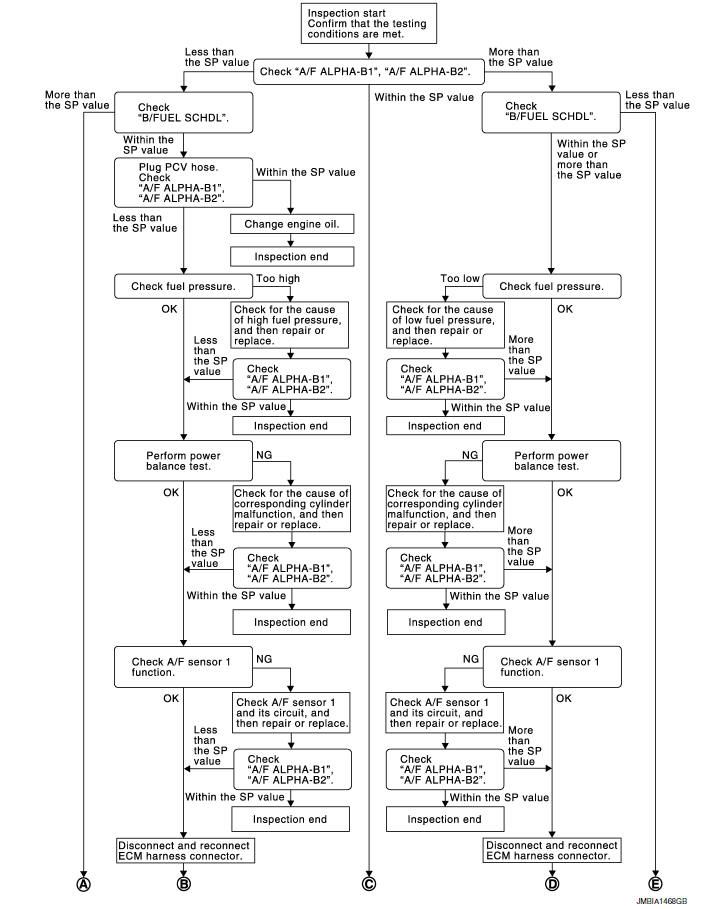

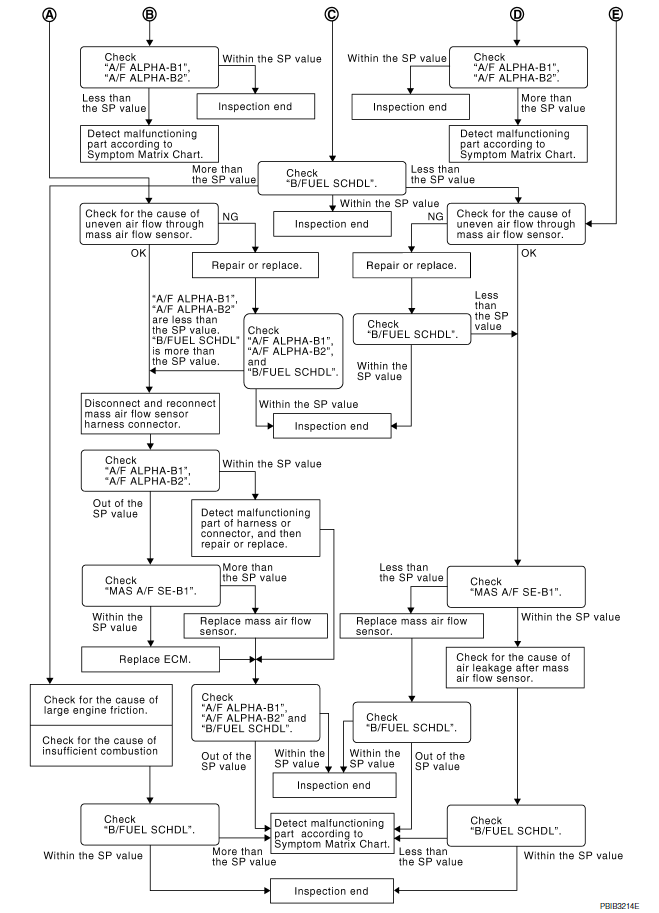

OVERALL SEQUENCE

Nissan Maxima. OVERALL SEQUENCE

Nissan Maxima. OVERALL SEQUENCE

DETAILED PROCEDURE

1.CHECK "A/F ALPHA-B1", "A/F ALPHA-B2"

With CONSULT

  1. Start engine.
  2. Confirm that the testing conditions are met. Refer to EC-149, "Component Function Check".
  3. Select "A/F ALPHA-B1", "A/F ALPHA-B2" in "SPEC" of "DATA MONITOR" mode, and check that each indication is within the SP value.

NOTE: Check "A/F ALPHA-B1", "A/F ALPHA-B2" for approximately 1 minute because they may fluctuate. It is NG if the indication is out of the SP value even a little.

2.CHECK "B/FUEL SCHDL"

Select "B/FUEL SCHDL" in "SPEC" of "DATA MONITOR" mode, and check that the indication is within the SP value.

3.CHECK "B/FUEL SCHDL"

Select "B/FUEL SCHDL" in "SPEC" of "DATA MONITOR" mode, and check that the indication is within the SP value.

4.CHECK "A/F ALPHA-B1", "A/F ALPHA-B2"

  1. Stop the engine.
  2. Disconnect PCV hose, and then plug it.
  3. Start engine.
  4. Select "A/F ALPHA-B1", "A/F ALPHA-B2" in "SPEC" of "DATA MONITOR" mode, and check that each indication is within the SP value.

5.CHANGE ENGINE OIL

  1. Stop the engine.
  2. Change engine oil.

NOTE: This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving conditions (such as when engine oil temperature does not rise enough since a journey distance is too short during winter). The symptom will not be detected after changing engine oil or changing driving conditions.

6.CHECK FUEL PRESSURE

Check fuel pressure.

7.DETECT MALFUNCTIONING PART

Check fuel hoses and fuel tubes for clogging.

8.CHECK "A/F ALPHA-B1", "A/F ALPHA-B2"

  1. Start engine.
  2. Select "A/F ALPHA-B1", "A/F ALPHA-B2" in "SPEC" of "DATA MONITOR" mode, and check that each indication is within the SP value.

9.PERFORM POWER BALANCE TEST

  1. Perform "POWER BALANCE" in "ACTIVE TEST" mode.
  2. Check that each cylinder produces a momentary engine speed drop.

10.DETECT MALFUNCTIONING PART

Check the following below.

  • Ignition coil and its circuit (Refer to EC-502, "Component Function Check".)
  • Fuel injector and its circuit (Refer to EC-496, "Component Function Check".)
  • Intake air leakage
  • Low compression pressure

11.CHECK "A/F ALPHA-B1", "A/F ALPHA-B2"

  1. Start engine.
  2. Select "A/F ALPHA-B1", "A/F ALPHA-B2" in "SPEC" of "DATA MONITOR" mode, and check that each indication is within the SP value.

12.CHECK A/F SENSOR 1 FUNCTION

Perform all DTC CONFIRMATION PROCEDURE related with A/F sensor 1.

  • For DTC P0130, P0150, refer to EC-218, "DTC Logic".
  • For DTC P0131, P0151, refer to EC-222, "DTC Logic".
  • For DTC P0132, P0152, refer to EC-226, "DTC Logic".
  • For DTC P014C, P014D, P014E, P014F, P015A, P015B, P015C, P015D, refer to EC-255, "DTC Logic".
  • For DTC P2096, P2097, P2098, P2099

13.CHECK A/F SENSOR 1 CIRCUIT

Perform Diagnostic Procedure according to corresponding DTC.

14.CHECK "A/F ALPHA-B1", "A/F ALPHA-B2"

  1. Start engine.
  2. Select "A/F ALPHA-B1", "A/F ALPHA-B2" in "SPEC" of "DATA MONITOR" mode, and check that each indication is within the SP value.

15.DISCONNECT AND RECONNECT ECM HARNESS CONNECTOR

  1. Stop the engine.
  2. Disconnect ECM harness connector. Check pin terminal and connector for damage, and then reconnect it.

16.CHECK "A/F ALPHA-B1", "A/F ALPHA-B2"

  1. Start engine.
  2. Select "A/F ALPHA-B1", "A/F ALPHA-B2" in "SPEC" of "DATA MONITOR" mode, and check that each indication is within the SP value.

17.CHECK "B/FUEL SCHDL"

Select "B/FUEL SCHDL" in "SPEC" of "DATA MONITOR" mode, and check that the indication is within the SP value

18.DETECT MALFUNCTIONING PART

  1. Check for the cause of large engine friction. Refer to the following.
  • Engine oil level is too high
  • Engine oil viscosity
  • Belt tension of power steering, alternator, A/C compressor, etc. is excessive
  • Noise from engine
  • Noise from transmission, etc.
  1. Check for the cause of insufficient combustion. Refer to the following.
  • Valve clearance malfunction
  • Intake valve timing control function malfunction
  • Camshaft sprocket installation malfunction, etc.

19.CHECK INTAKE SYSTEM

Check for the cause of uneven air flow via the mass air flow sensor. Refer to the following.

  • Crushed air ducts
  • Malfunctioning seal of air cleaner element
  • Uneven dirt of air cleaner element
  • Improper specification of intake air system

20.CHECK "A/F ALPHA-B1", "A/F ALPHA-B2", AND "B/FUEL SCHDL"

Select "A/F ALPHA-B1", "A/F ALPHA-B2", and "B/FUEL SCHDL" in "SPEC" of "DATA MONITOR" mode, and check that each indication is within the SP value.

21.DISCONNECT AND RECONNECT MASS AIR FLOW SENSOR HARNESS CONNECTOR

  1. Stop the engine.
  2. Disconnect mass air flow sensor harness connector. Check pin terminal and connector for damage and then reconnect it again.

22.CHECK "A/F ALPHA-B1", "A/F ALPHA-B2"

  1. Start engine.
  2. Select "A/F ALPHA-B1", "A/F ALPHA-B2" in "SPEC" of "DATA MONITOR" mode, and check that each indication is within the SP value.

23.CHECK "MAS A/F SE-B1"

Select "MAS A/F SE-B1" in "SPEC" of "DATA MONITOR" mode, and check that the indication is within the SP value.

24.REPLACE ECM

  1. Replace ECM.

25.CHECK INTAKE SYSTEM

Check for the cause of uneven air flow via the mass air flow sensor. Refer to the following.

  • Crushed air ducts
  • Malfunctioning seal in air cleaner element
  • Uneven dirt in air cleaner element
  • Improper specification in intake air system

26.CHECK "B/FUEL SCHDL"

Select "B/FUEL SCHDL" in "SPEC" of "DATA MONITOR" mode, and check that the indication is within the SP value

27.CHECK "MAS A/F SE-B1"

Select "MAS A/F SE-B1" in "SPEC" of "DATA MONITOR" mode, and check that the indication is within the SP value.

28.CHECK INTAKE SYSTEM

Check for the cause of air leakage after the mass air flow sensor. Refer to the following.

  • Disconnection, looseness, and cracks in air duct
  • Looseness of oil filler cap
  • Disconnection of oil level gauge
  • Open stuck, breakage, hose disconnection, or cracks in PCV valve
  • Disconnection or cracks in EVAP purge hose, stuck open EVAP canister purge volume control solenoid valve
  • Malfunctioning seal in rocker cover gasket
  • Disconnection, looseness, or cracks in hoses, such as a vacuum hose, connecting to intake air system parts
  • Malfunctioning seal in intake air system, etc.

29.CHECK "A/F ALPHA-B1", "A/F ALPHA-B2", AND "B/FUEL SCHDL"

Select "A/F ALPHA-B1", "A/F ALPHA-B2", and "B/FUEL SCHDL" in "SPEC" of "DATA MONITOR" mode, and check that each indication is within the SP value.

30.CHECK "B/FUEL SCHDL"

Select "B/FUEL SCHDL" in "SPEC" of "DATA MONITOR" mode, and then check that the indication is within the SP value.
