Nissan Maxima Service and Repair Manual: Performance test
Inspection
INSPECTION PROCEDURE
- Connect recovery/recycling/recharging equipment (for HFC-134a) or manifold gauge.

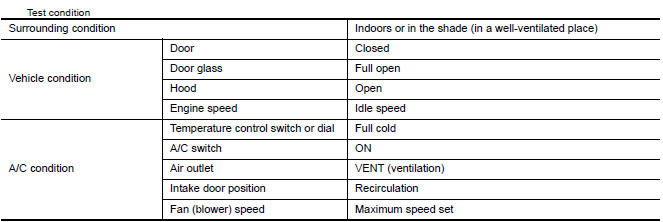

- Start the engine, and set to the following condition.
- Maintain test condition until A/C system becomes stable. (Approximately 10 minutes)
- Check that test results of "recirculating-to-discharge air temperature" and "ambient air temperature-tooperating pressure" are within the specified value.
- When test results are within the specified value, inspection is complete.
If any of test result is out of the specified value, perform diagnosis by gauge pressure. Refer to HA-21, "WITH COLOR DISPLAY : Symptom Matrix Chart".
RECIRCULATING-TO-DISCHARGE AIR TEMPERATURE TABLE

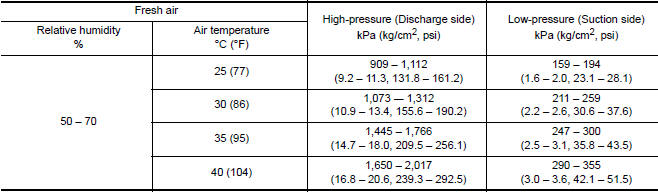

AMBIENT AIR TEMPERATURE-TO-OPERATING PRESSURE TABLE
Refrigeration system
Inspection
1.CHECK BLOWER MOTOR OPERATION
Check blower motor operation
2.CHECK COMPRESSOR OPERATION
Check compressor operatio
3.CHECK REFRIGERANT CYCLE PRESSURE
Connect recovery/recycling ...
Removal and installation
COMPRESSOR
Removal and Installation for Compressor
REMOVAL
CAUTION: Before servicing, turn the ignition
switch off, disconnect both battery terminals and wait at least three
minutes.
Di ...
