Nissan Maxima Service and Repair Manual: Diagnosis system (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

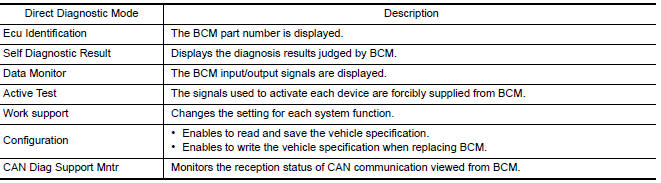

CONSULT performs the following functions via CAN communication with BCM

Nissan Maxima. APPLICATION ITEM

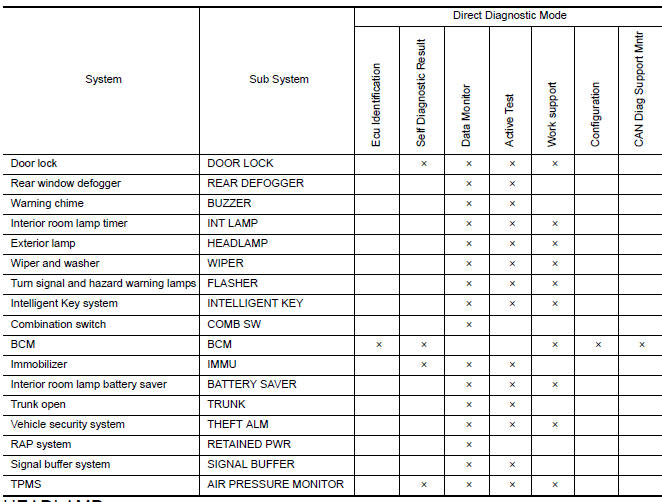

SYSTEM APPLICATION

BCM can perform the following functions.

Nissan Maxima. SYSTEM APPLICATION

HEADLAMP

HEADLAMP : CONSULT Function (BCM - HEAD LAMP)

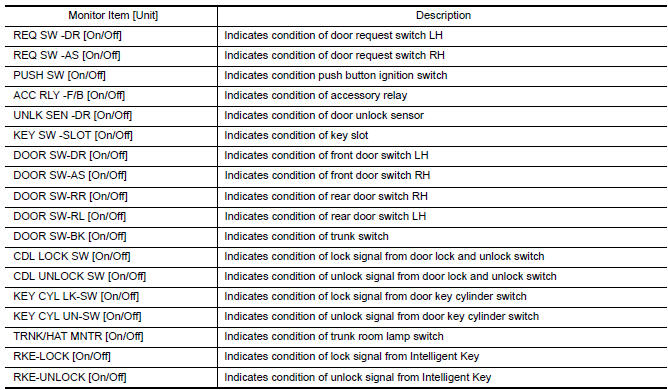

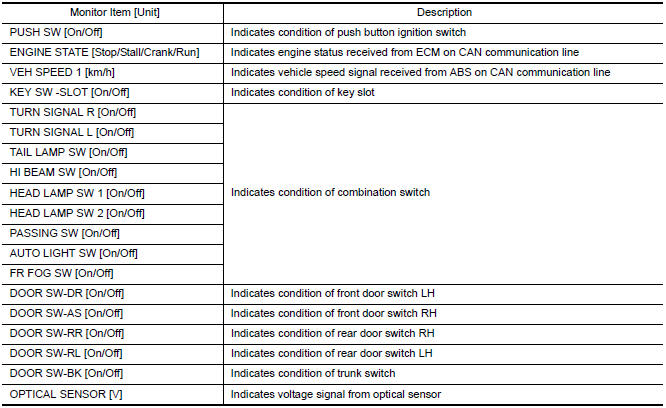

DATA MONITOR

Nissan Maxima. DATA MONITOR

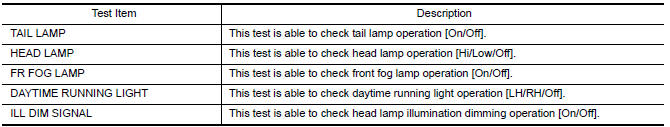

ACTIVE TEST

Nissan Maxima. ACTIVE TEST

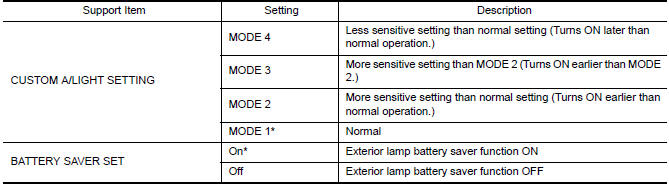

WORK SUPPORT

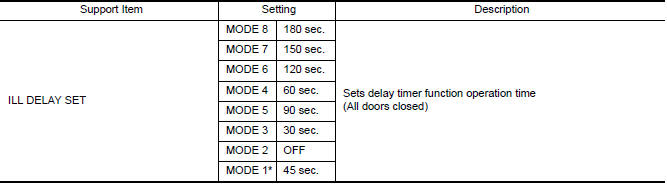

Nissan Maxima. WORK SUPPORT

Nissan Maxima. WORK SUPPORT

* : Initial setting

FLASHER

FLASHER : CONSULT Function (BCM - FLASHER)

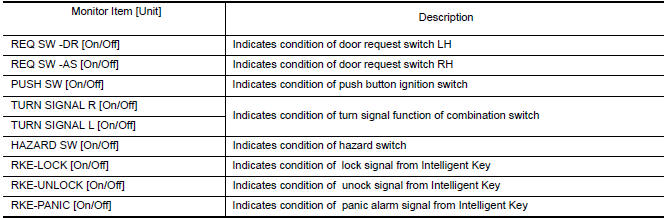

DATA MONITOR

Nissan Maxima. DATA MONITOR

ACTIVE TEST

Nissan Maxima. ACTIVE TEST

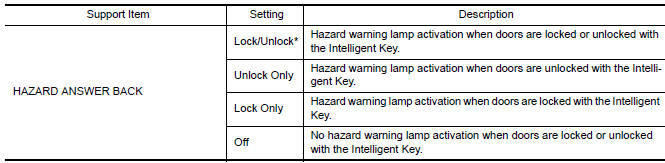

WORK SUPPORT

Nissan Maxima. WORK SUPPORT

* : Initial setting

COMB SW

COMB SW : CONSULT Function (BCM-COMB SW)

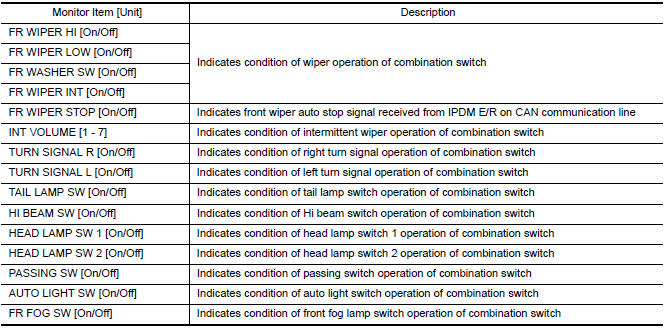

DATA MONITOR

Nissan Maxima. DATA MONITOR

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

DATA MONITOR

Nissan Maxima. DATA MONITOR

ACTIVE TEST

Nissan Maxima. ACTIVE TEST

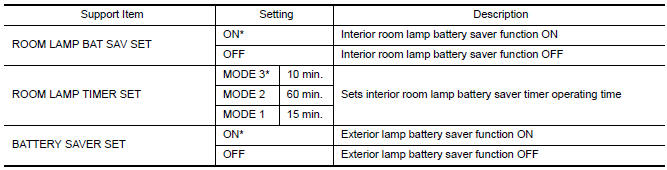

WORK SUPPORT

Nissan Maxima. WORK SUPPORT

* : Initial setting
