Nissan Maxima Service and Repair Manual: Rear combination lamp
Disassembly and Assembly

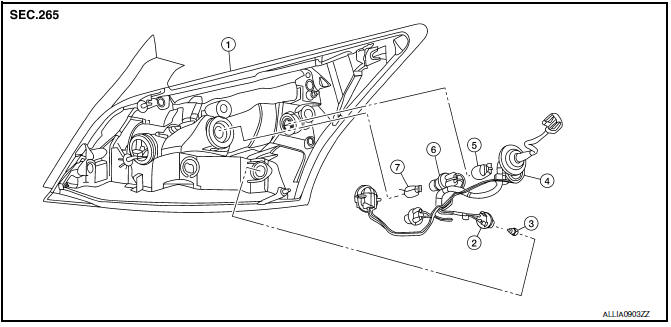

- Rear combination lamp
- Rear side marker lamp socket
- Rear side marker lamp bulb
- Rear turn signal lamp socket
- Rear turn signal lamp bulb
- Back-up lamp socket
- Back-up lamp bulb
DISASSEMBLY
- Rotate the rear side marker lamp socket counterclockwise and unlock it.
- Remove the bulb from rear side marker lamp socket.
- Rotate the rear turn signal lamp socket counterclockwise and unlock it.
- Remove the bulb from rear turn signal lamp socket.
- Rotate the back-up lamp socket counterclockwise and unlock it.
- Remove the bulb from back up lamp socket.
ASSEMBLY
Assembly is in the reverse order of disassembly.
Front combination lamp
Disassembly and Assembly
EXPLODED VIEW
Front combination lamp
Halogen bulb (low beam)
Halogen bulb socket (low beam)
Side marker lamp bulb
Side marker lamp socket
Front turn signa ...
Service data and specifications (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Bulb Specifications
*: Always check with the Parts Department for the latest parts informatio ...
