REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUSTMENT
REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUSTMENT : Description
Adjust the center position of the possible route line of the rear view monitor if it is shifted.
REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUSTMENT : Special Repair Requirement
1.STEERING OPERATION
Steer the steering wheel to the leftmost and rightmost positions
2.DRIVING
Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
BEFORE REPLACEMENT
When replacing AV control unit, save current vehicle specification with CONSULT configuration before replacement.
AFTER REPLACEMENT
CAUTION: When replacing AV control unit, you must perform "WRITE CONFIGURATION" with CONSULT.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement
1.SAVING VEHICLE SPECIFICATION
2.REPLACE AV CONTROL UNIT
3.WRITING VEHICLE SPECIFICATION
CONSULT Configuratio
4.OPERATION CHECK
Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course lines) are normal.
CONFIGURATION (AV CONTROL UNIT)
CONFIGURATION (AV CONTROL UNIT) : Description
| Function | Description |
| READ CONFIGURATION |
|
| WRITE CONFIGURATION-Manual selection | Writes the vehicle configuration with manual selection |
| WRITE CONFIGURATION-Config file | Writes the vehicle configuration with saved data |
CONFIGURATION (AV CONTROL UNIT) : Special Repair Requirement
1.WRITING MODE SELECTION
CONSULT Configuration
Select "CONFIGURATION" of AV control unit.
2.PERFORM "WRITE CONFIGURATION-CONFIG FILE"
CONSULT Configuration
Perform "WRITE CONFIGURATION-Config file".
3.PERFORM "WRITE CONFIGURATION-MANUAL SELECTION"
CONSULT Configuration
Select "WRITE CONFIGURATION-Manual selection" to write vehicle specifications into the AV control unit
4.OPERATION CHECK
Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course lines) are normal.

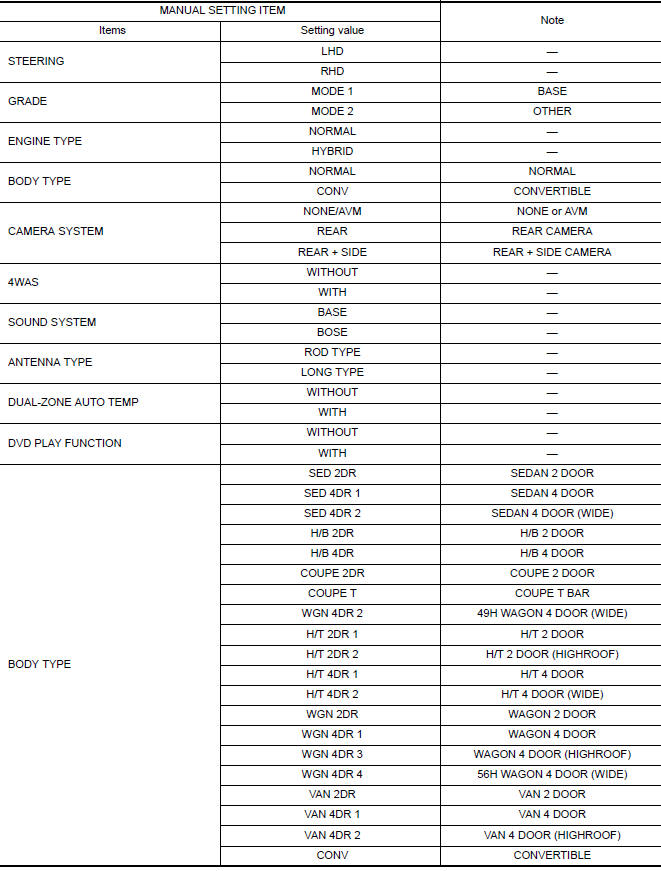

CONFIGURATION (AV CONTROL UNIT) : Configuration List
Check vehicle specifications before servicing.

Diagnosis and repair workflowBlower unit
BLOWER UNIT
BLOWER UNIT : Removal and Installation
COMPONENTS
Heater and cooling unit
Blower unit Front
REMOVAL
Remove the heater and cooling unit assembly. Refer to HA-47,
"HEATER & COOLING UNIT ASSEMBLY : Removal and Installation".
Disconnect the harness connector from ...
Power supply and ground circuit
Diagnosis Procedure
1.CHECK GROUND CONNECTION-I
Turn ignition switch OFF.
Check ground connection E9. Refer to Ground Inspection
2.CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
Disconnect ECM harness connector.
Check the continuity between ECM harness connector and ground.
Also che ...
How to set srt code
Description
OUTLINE
In order to set all SRTs, the self-diagnoses as in the "SRT ITEM" table must
have been performed at least
once. Each diagnosis may require actual driving for a long period of time under
various conditions.
SRT ITEM
The table below shows required self-diagnostic items to ...
