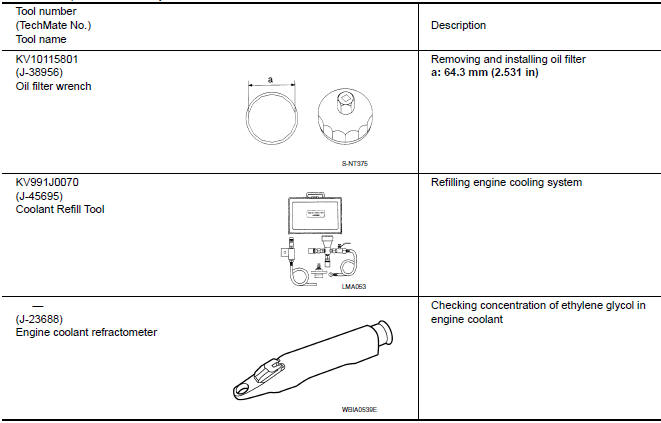

Special Service Tool

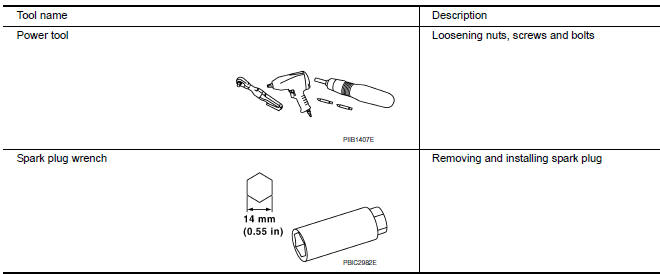

The actual shapes of the tools may differ from those illustrated here.
Commercial Service Tool
The fuel gauge pointer does not move
Description
Fuel gauge needle will not move from a certain position.
Diagnosis Procedure
1.CHECK COMBINATION METER INPUT SIGNAL
Select "METER/M&A" on CONSULT.
Using "FUEL METER" of "DATA MONITOR", compare
the monitor value with the fuel gauge reading on
the co ...
Pre-inspection for diagnostic
Pre-Inspection for Multi-System Diagnostic
The engine start function, door lock function, power distribution system and
NATS-IVIS/NVIS are closely
related to each other. Narrow down the system in question by performing this
inspection to identify which system
is malfunctioning. For example, ...
IPDM E/R (intelligent power distribution module engine room)
Reference Value
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
PHYSICAL VALUES
Fail Safe
CAN COMMUNICATION CONTROL
When CAN communication with ECM and BCM is impossible,
IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal ...
