FOR USA AND CANADA
FOR USA AND CANADA : Explanation of General Maintenance
General maintenance includes those items which should be checked during the normal day-to-day operation of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform checks and inspections themselves or have their NISSAN dealers do them.

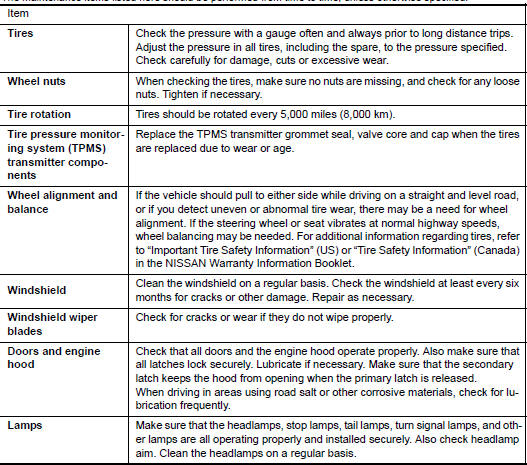

OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified

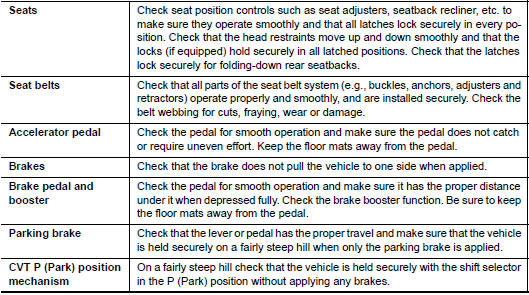

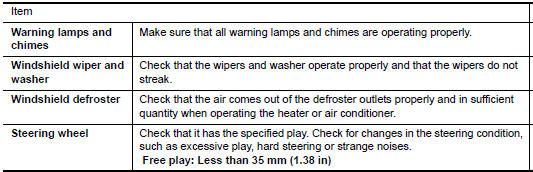

INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the vehicle, etc.

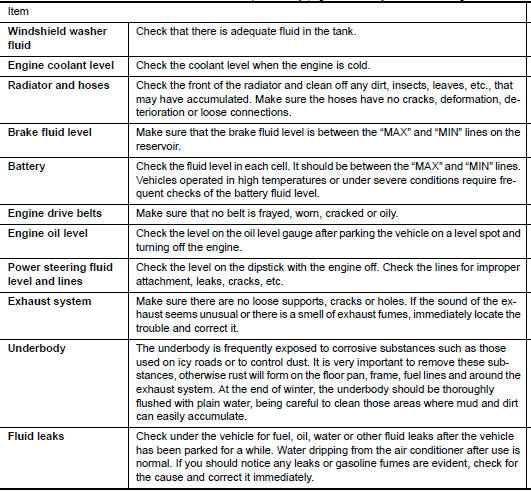

UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically (e.g., each time you check the engine oil or refuel).
The maintenance items listed here should be checked periodically (e.g., each time you check the engine oil or refuel).
FOR MEXICO
FOR MEXICO : Explanation of General Maintenance
General maintenance includes those items which should be checked during the normal day-to-day operation of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform the checks and inspections themselves or they can have their NISSAN dealers do them.

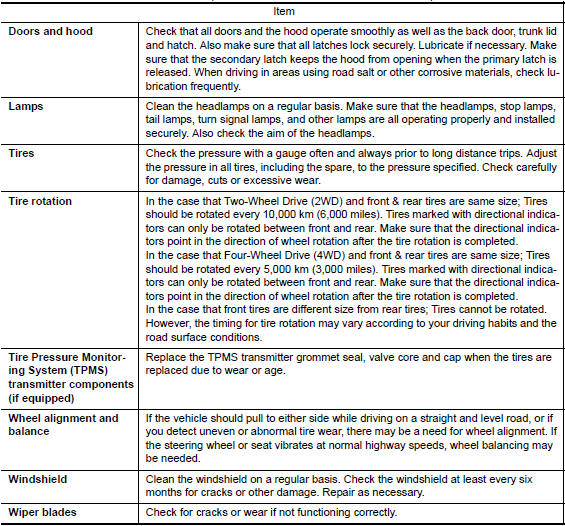

OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified

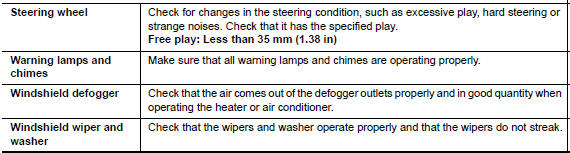

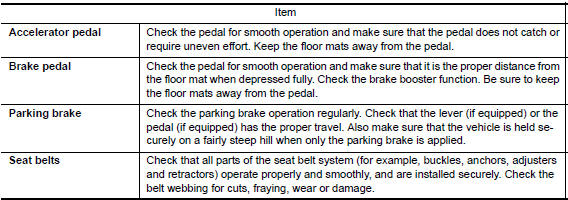

INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the vehicle, etc.

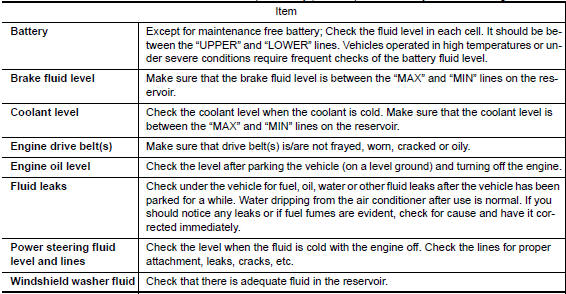

UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically (for example, each time you check the engine oil or refuel.)
