Nissan Maxima Owners Manual: Fuel gauge

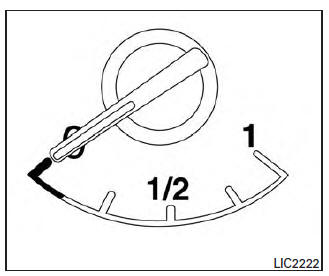

The gauge indicates the approximate fuel level in the tank.
The gauge may move slightly during braking, turning, acceleration, or going up or down hills.
The gauge needle returns to 0 (Empty) after the ignition switch is placed in the OFF position.
The low fuel warning message shows in the vehicle information display when the amount of fuel in the tank is getting low.
Refill the fuel tank before the gauge registers 0 (Empty).
The
indicates that the
fuel-filler door is
located on the driver's side of the vehicle.
CAUTION
- If the vehicle runs out of fuel, the
Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips. the
light
should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected. It is recommended that you
visit a NISSAN dealer for this service. - For additional information, refer to "Malfunction Indicator Light (MIL)" in this section.
Engine coolant temperature gauge
The gauge indicates the engine coolant temperature.
The engine coolant temperature is within the
normal range 1 when the gauge needle points
within the zone shown in the illustration.
The ...
