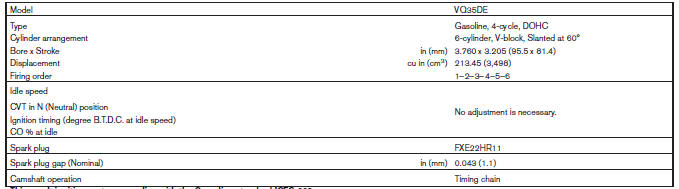

Engine
This spark ignition system complies with the Canadian standard ICES-002.

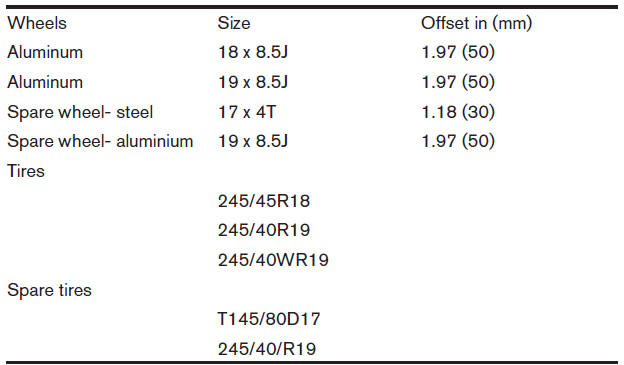

Wheels and tires

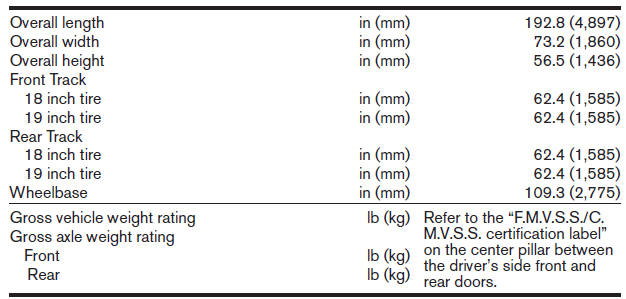

Dimensions and weights
Pre-inspection for diagnostic
Pre-Inspection for Multi-System Diagnostic
The engine start function, door lock function, power distribution system and
NATS-IVIS/NVIS are closely
related to each other. Narrow down the system in question by performing this
inspection to identify which system
is malfunctioning. For example, ...
Parking lamp circuit
Description
The IPDM E/R (intelligent power distribution module engine room) controls the
tail lamp relay based on inputs from the BCM over the CAN communication
lines. When the tail lamp relay is energized, power flows through fuses 46
and 47, located in the IPDM E/R. Power then flows to the ...
B2608 starter relay
Description
Located in IPDM E/R, it runs the starter motor. The
starter relay is turned ON by the BCM when the ignition
switch is in START position. IPDM E/R transmits the starter relay ON signal to
BCM via CAN communication.
DTC Logic
DTC DETECTION LOGIC
NOTE:
If DTC B2608 is displ ...
