Nissan Maxima Service and Repair Manual: System description

AUTOMATIC AIR CONDITIONER SYSTEM

WITH COLOR DISPLAY

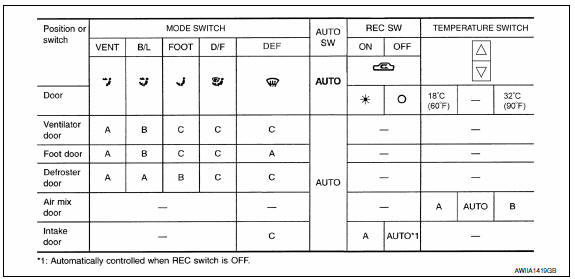

WITH COLOR DISPLAY : Switches And Their Control F

Nissan Maxima. WITH COLOR DISPLAY

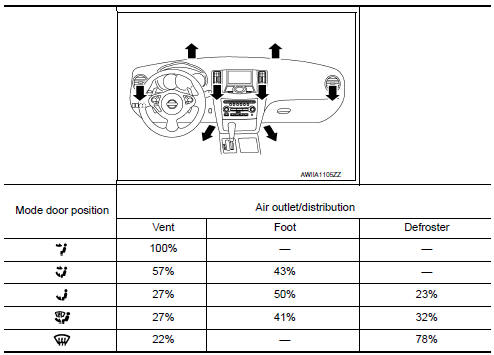

WITH COLOR DISPLAY : Discharge Air Flow

Nissan Maxima. WITH COLOR DISPLAY

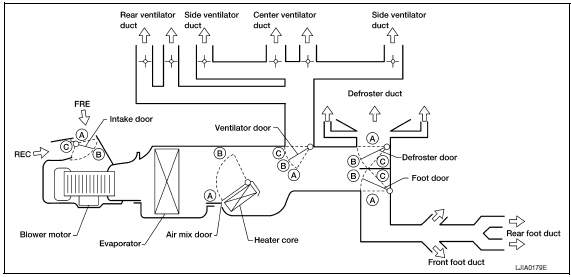

WITH MONOCHROME DISPLAY

WITH MONOCHROME DISPLAY : Switches And Their Control Function

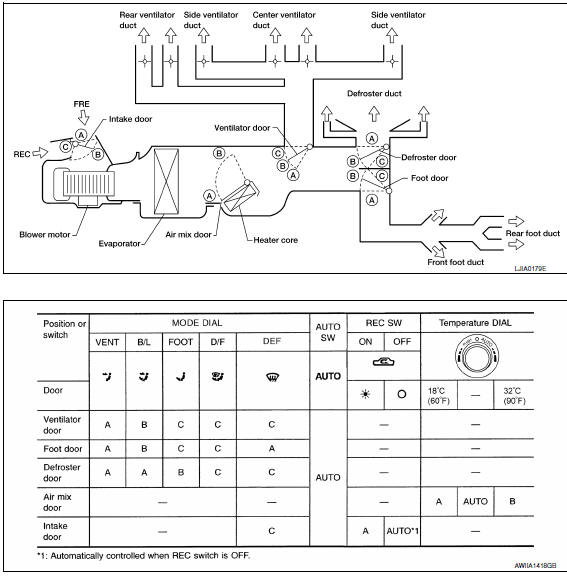

Nissan Maxima. WITH MONOCHROME DISPLAY

Nissan Maxima. WITH MONOCHROME DISPLAY

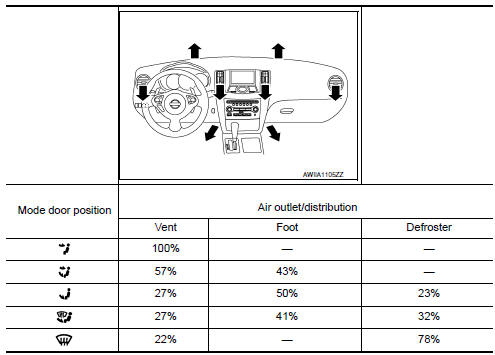

WITH MONOCHROME DISPLAY : Discharge Air Flow

Nissan Maxima. WITH MONOCHROME DISPLAY

    Preparation
    Special Service Tool The actual shapes of the tools may differ from those illustrated her Commercial Service Tool ...

    Periodic maintenance
    IN-CABIN MICROFILTER Removal and Installation REMOVAL Disengage the filter cover tab (1) by pushing up and pull out to remove the filter cover. Remove the in-cabin microfilter from the bl ...
