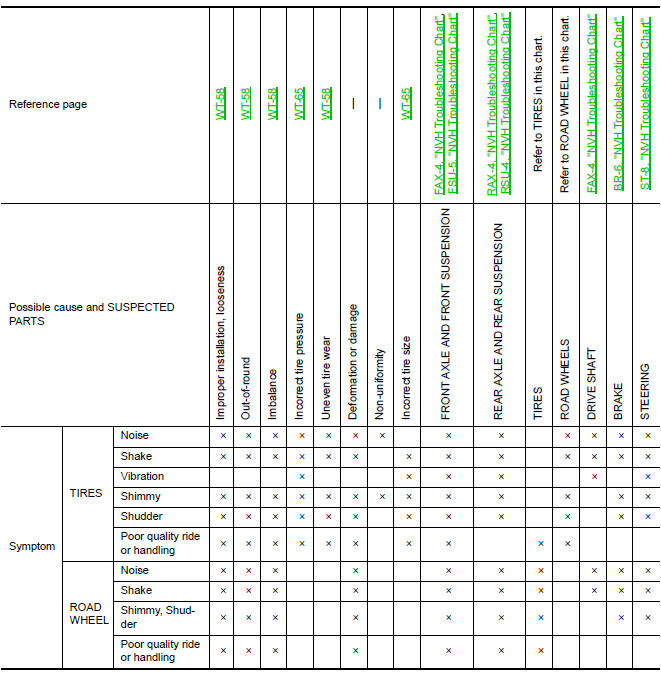

NVH Troubleshooting Chart
Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: Applicable
Parking brake switch signal circuit
Description
Transmits the parking brake switch signal to the
combination meter.
Component Function Check
1.COMBINATION METER INPUT SIGNAL
Select "METER/M&A" on CONSULT.
Monitor "PKB SW" of "DATA MONITOR" while
applying and releasing the parking brake.
> ...
RGB synchronizing signal circuit
Description
Transmit the RGB synchronizing signal to the display unit so as to
synchronize the RGB image displayed with
AV control unit.
Diagnosis Procedure
1.CHECK CONTINUITY RGB SYNCHRONIZING SIGNAL CIRCUIT
Turn ignition switch OFF.
Disconnect display unit connector M141 and AV co ...
System malfunction
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound, the
FEB system warning light (orange) will illuminate
and the warning message [Malfunction] will appear
in the vehicle information display.
Action to take
If the warning light (orange) comes on, stop the
...
