Steering Wheel

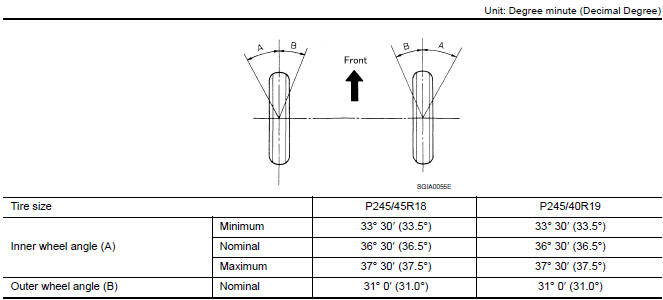

Steering Angle

Steering Column

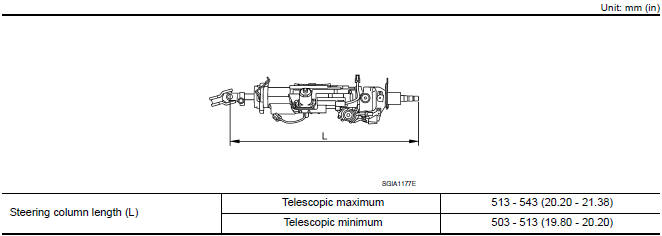

STEERING COLUMN LENGTH

Nissan Maxima. STEERING COLUMN LENGTH

STEERING COLUMN ROTATING TORQUE

Nissan Maxima. STEERING COLUMN ROTATING TORQUE

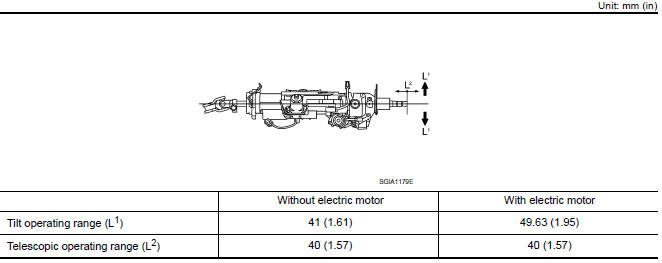

TILT MECHANISM OPERATING RANGE

Nissan Maxima. TILT MECHANISM OPERATING RANGE

Steering Gear

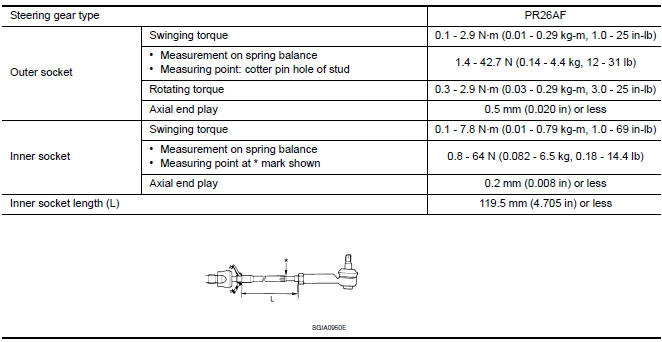

STEERING OUTER SOCKET AND INNER SOCKET

Nissan Maxima. STEERING OUTER SOCKET AND INNER SOCKET

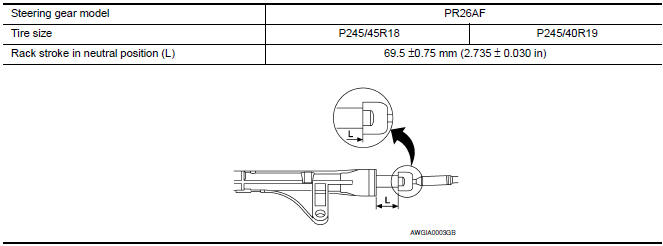

RACK STROKE

Nissan Maxima. RACK STROKE

RACK SLIDING FORCE

Nissan Maxima. RACK SLIDING FORCE

Oil Pump

Nissan Maxima. Oil Pump

Steering Fluid

Nissan Maxima. Steering Fluid

    Steering gear and linkage
    Exploded View Outer socket Boot clamp Boot Inner socket Boot clamp SSPS valve (part of gear assembly) Gear assembly Front Three Bond 1111B or equivalent Disassembly Remove ...
