Nissan Maxima Service and Repair Manual: ECU diagnosis information

A/C AUTO AMP.

Reference Value

VALUES ON THE DIAGNOSIS TOOL

CONSULT MONITOR ITEM

Nissan Maxima. CONSULT MONITOR ITEM

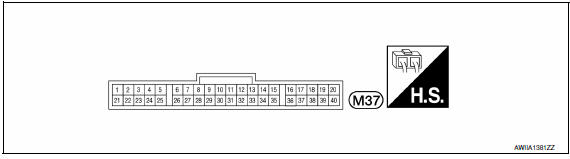

A/C AUTO AMP. HARNESS CONNECTOR TERMINAL LAYOUT

Nissan Maxima. A/C AUTO AMP. HARNESS CONNECTOR TERMINAL LAYOUT

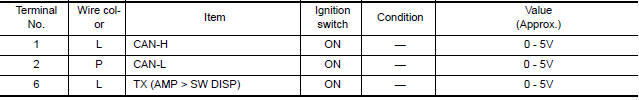

TERMINALS AND REFERENCE VALUES FOR A/C AUTO AMP.

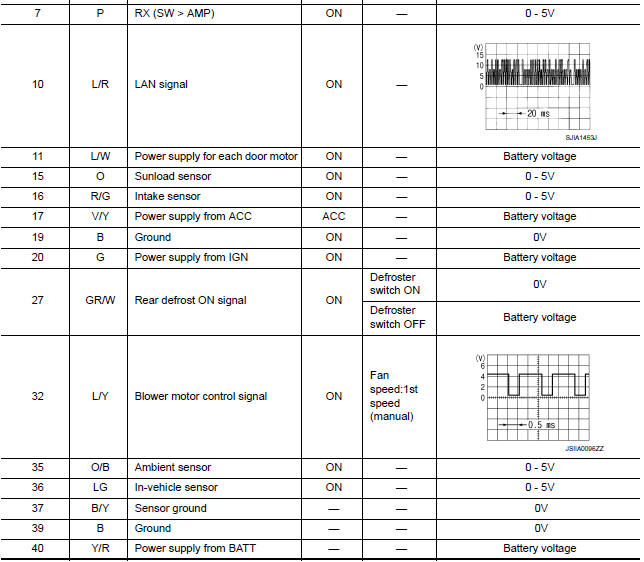

Nissan Maxima. TERMINALS AND REFERENCE VALUES FOR A/C AUTO AMP.

Nissan Maxima. TERMINALS AND REFERENCE VALUES FOR A/C AUTO AMP.

DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.

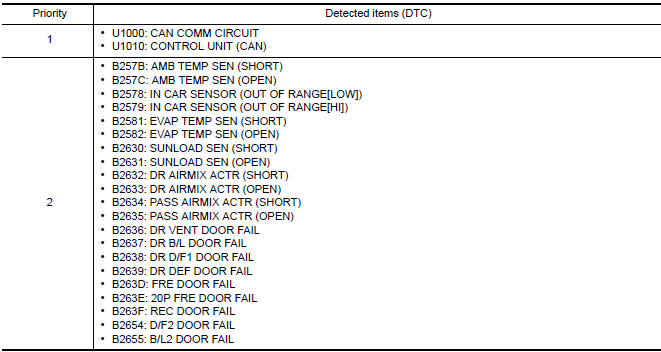

Nissan Maxima. DTC Inspection Priority Chart

DTC Index

Nissan Maxima. DTC Index

*: Perform self-diagnosis under direct sunlight. When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise selfdiagnosisreports an error even though the sunload sensor is functioning normally.

    Power supply and ground circuit
    A/C AUTO AMP. A/C AUTO AMP.: Description COMPONENT DESCRIPTION A/C Auto Amp. (Air Conditioner Automatic Amplifier) The A/C auto amp. (1) has a built-in microcomputer that processes informatio ...

    Wiring diagram
    AIR CONDITIONER CONTROL Wiring Diagram - With Monochrome Display ...
