Nissan Maxima Service and Repair Manual: Power seat for driver side

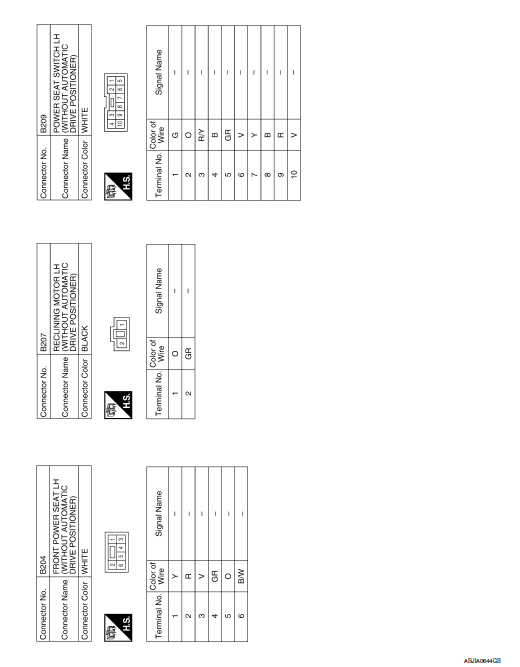

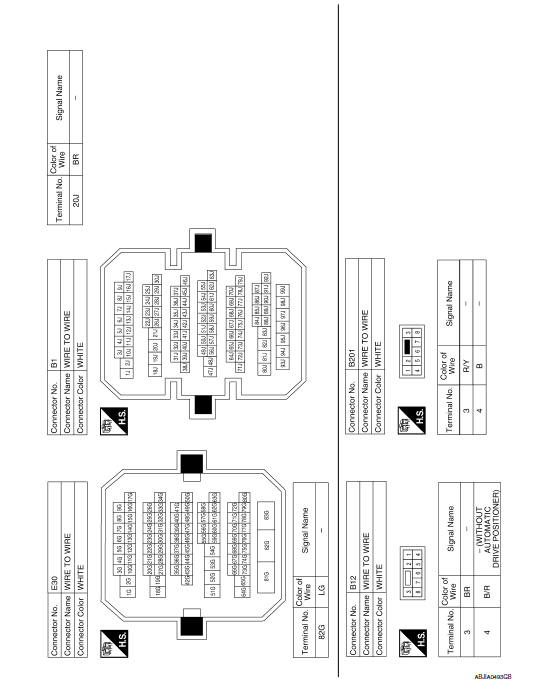

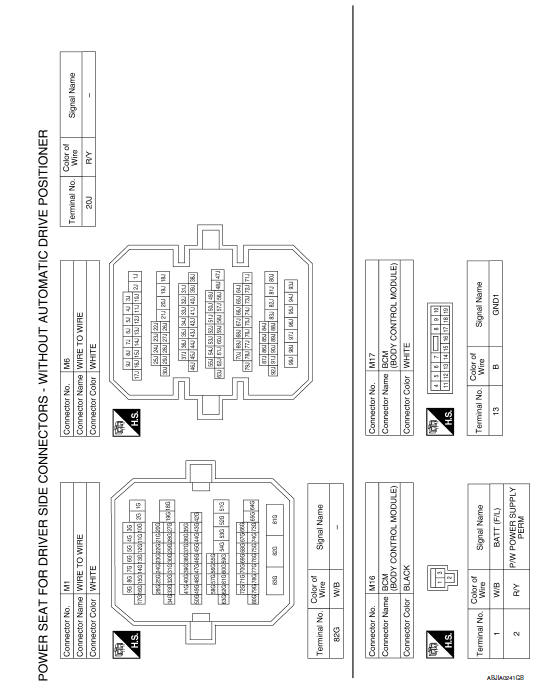

Wiring Diagram - Without Automatic Drive Positioner

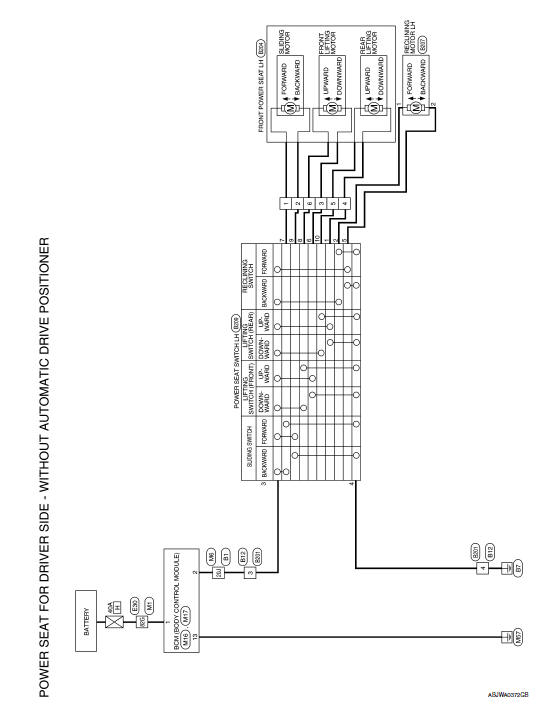

    Wiring diagram
    ...

    Power seat for passenger side
    Wiring Diagram       ...
