Reference Value

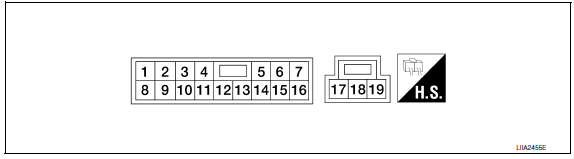

TERMINAL LAYOUT

Nissan Maxima. TERMINAL LAYOUT

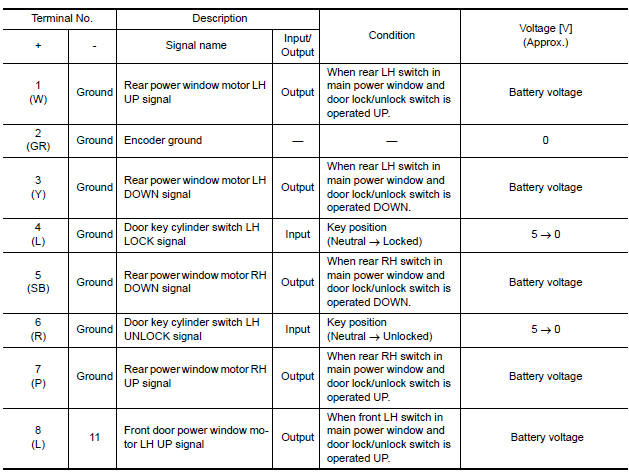

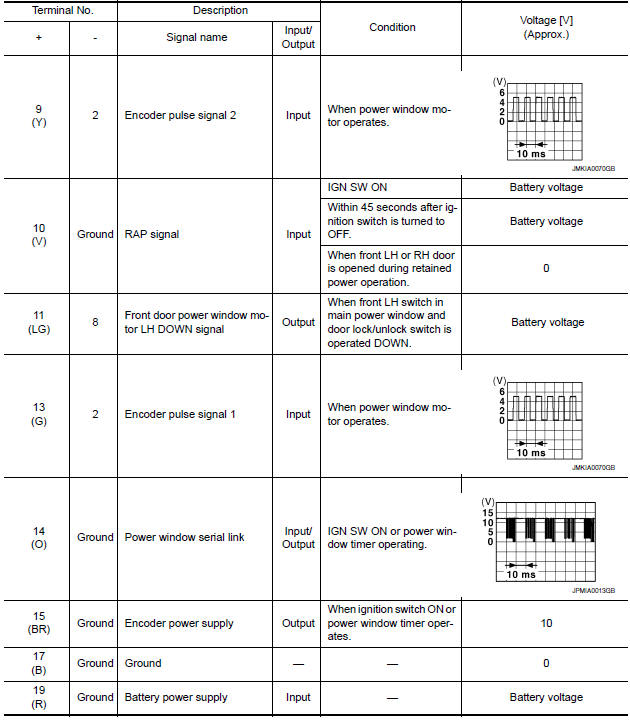

PHYSICAL VALUES

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Nissan Maxima. MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Nissan Maxima. MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Fail Safe

FAIL-SAFE CONTROL

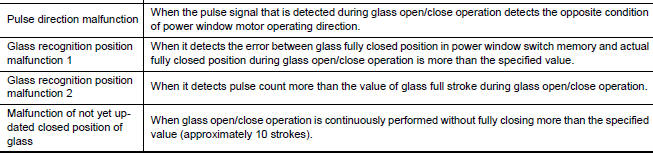

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and direction of door glass. Switches to fail-safe control when error beyond regulation value is detected between the fully closed position and the actual position of the glass.

Nissan Maxima. FAIL-SAFE CONTROL

Nissan Maxima. FAIL-SAFE CONTROL

It changes to condition before initialization and the following functions do not operate when switched to failsafe control:

  • Auto-up operation
  • Anti-pinch function
  • Retained power function

Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe control when malfunction is found in power window switch or in motor.

    ECU diagnosis information
    ...

    Power window and door lock/unlock switch RH
    Reference Value TERMINAL LAYOUT PHYSICAL VALUES POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH Fail Safe FAIL-SAFE CONTROL Switches to fail-safe control when malfunction is detected in ...
