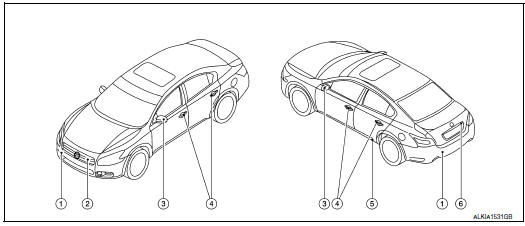

BODY EXTERIOR PAINT COLOR
Body Exterior Paint Color

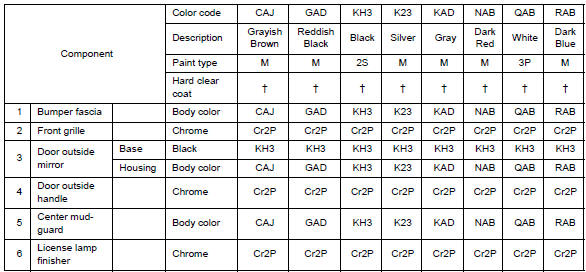

M= Metallic, S= Solid, 2S= Solid and Clear, 2P= 2-coat Pearl, 3P= 3-coat pearl, PM= Pearl metallic. Black is solvent based, all others are water based, - = Primerless diamond clear coat.
Body repair
PrecautionHeadlamp (HI) circuit
Description
The IPDM E/R (intelligent power distribution module engine room) controls the
headlamp high relay based on inputs from the BCM over the CAN communication
lines. When the headlamp high relay is energized, power flows through fuses
48 and 49, located in the IPDM E/R. Power then flow ...
Power supply and ground circuit
BCM
BCM : Diagnosis Procedure
1. CHECK FUSE AND FUSIBLE LINK
Check if the following BCM fuses or fusible link are blown.
2. CHECK POWER SUPPLY CIRCUIT
Turn ignition switch OFF.
Disconnect BCM.
Check voltage between BCM harness connector and ground.
3. CHECK GROUND CIRCUIT
Che ...
The parking brake release warning continues displaying, or does not display
Description
The parking brake warning is displayed while
driving the vehicle even though the parking brake is released.
The parking brake warning is not displayed even
though driving the vehicle with the parking brake
depressed.
Diagnosis Procedure
1.CHECK ...
