Nissan Maxima Service and Repair Manual: BCM (body control module)

Reference Value

NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.

  • Activate and display TPMS transmitter IDs
  • Display tire pressure reported by the TPMS transmitter
  • Read TPMS DTCs
  • Register TPMS transmitter IDs
  • Check Intelligent Key relative signal strength
  • Confirm vehicle Intelligent Key antenna signal strength

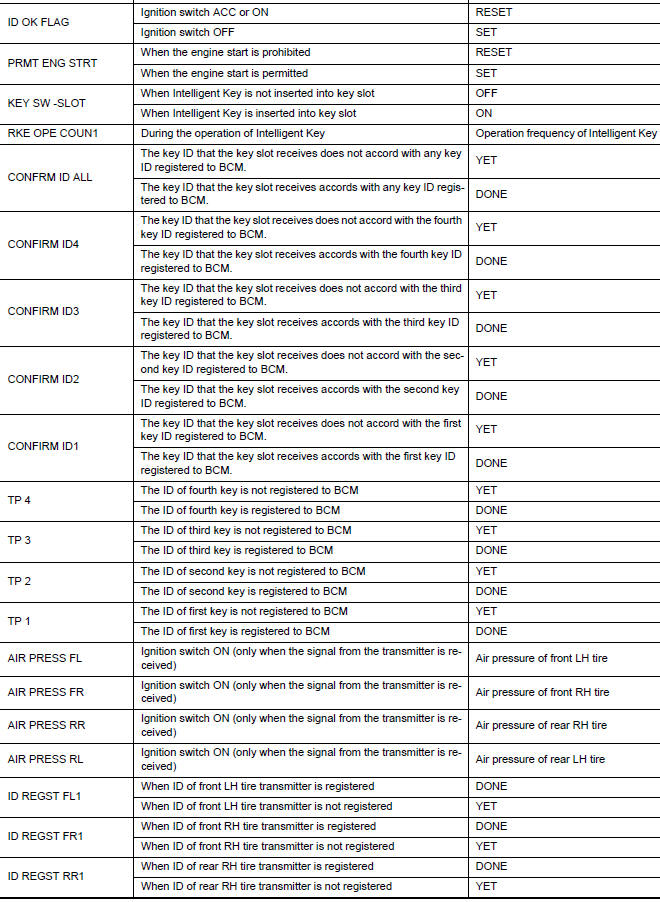

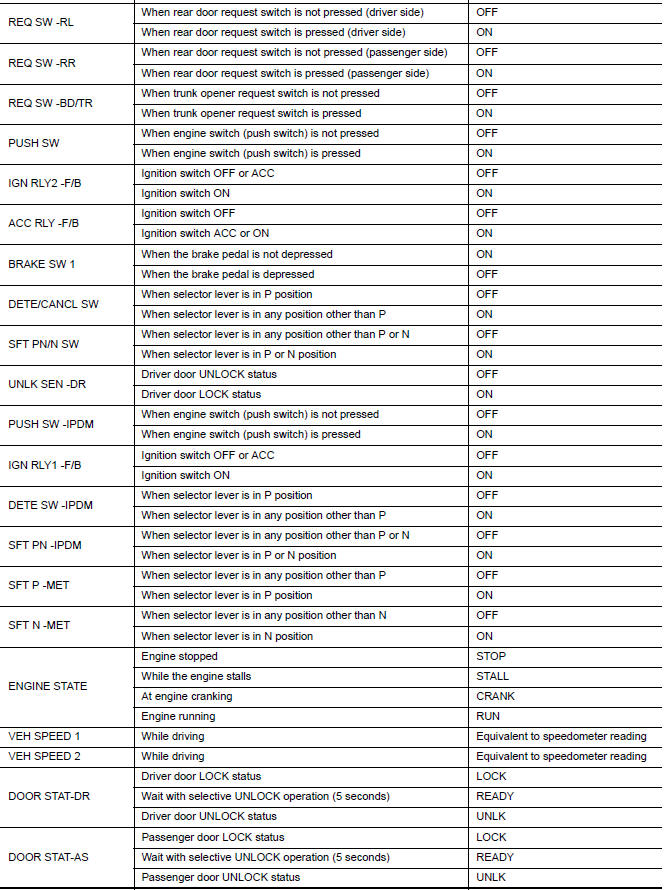

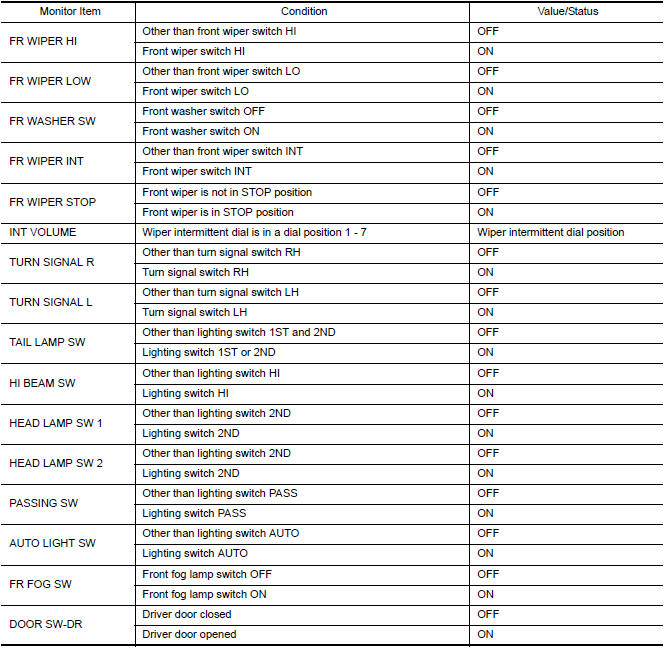

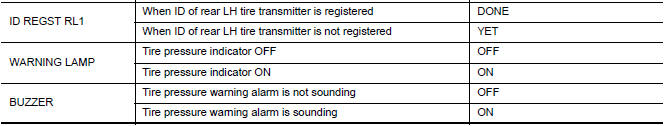

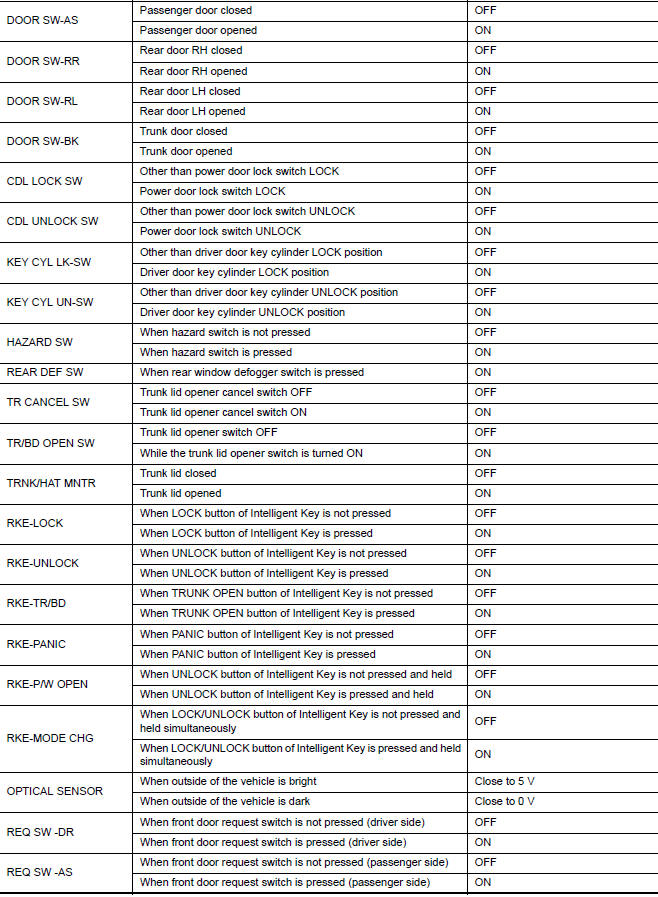

VALUES ON THE DIAGNOSIS TOOL

Nissan Maxima. VALUES ON THE DIAGNOSIS TOOL

Nissan Maxima. VALUES ON THE DIAGNOSIS TOOL

Nissan Maxima. VALUES ON THE DIAGNOSIS TOOL

Nissan Maxima. VALUES ON THE DIAGNOSIS TOOL

Nissan Maxima. VALUES ON THE DIAGNOSIS TOOL

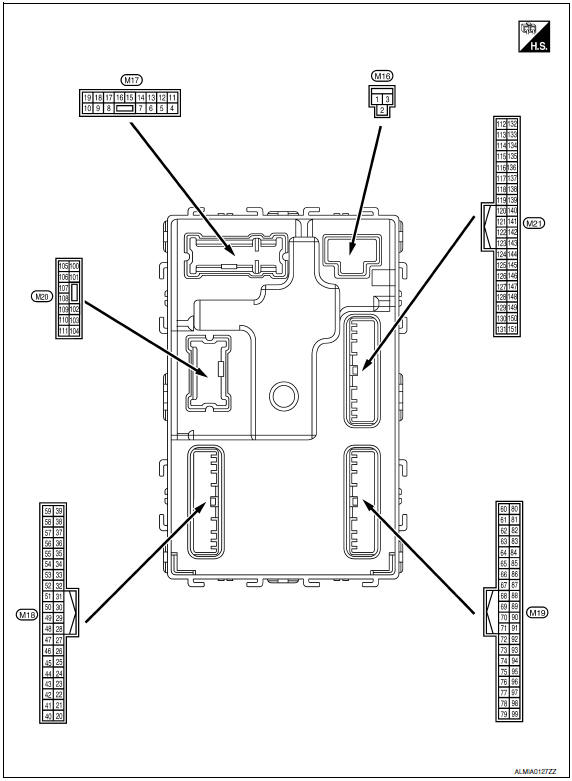

Terminal Layout

Nissan Maxima. Terminal Layout

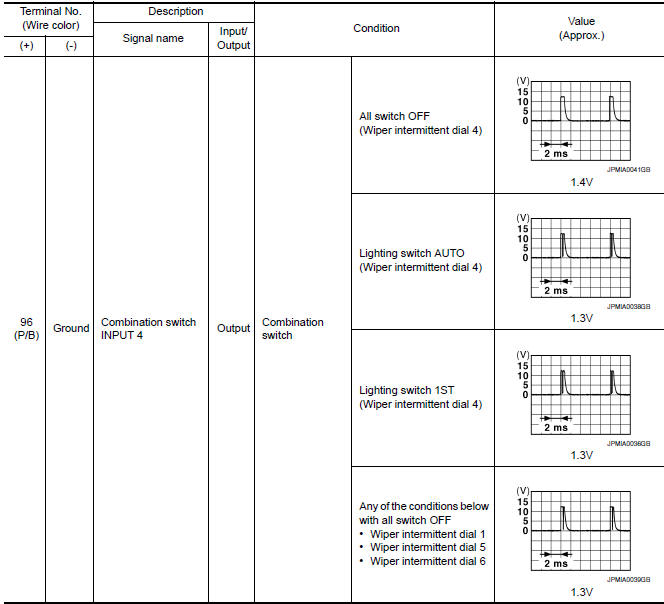

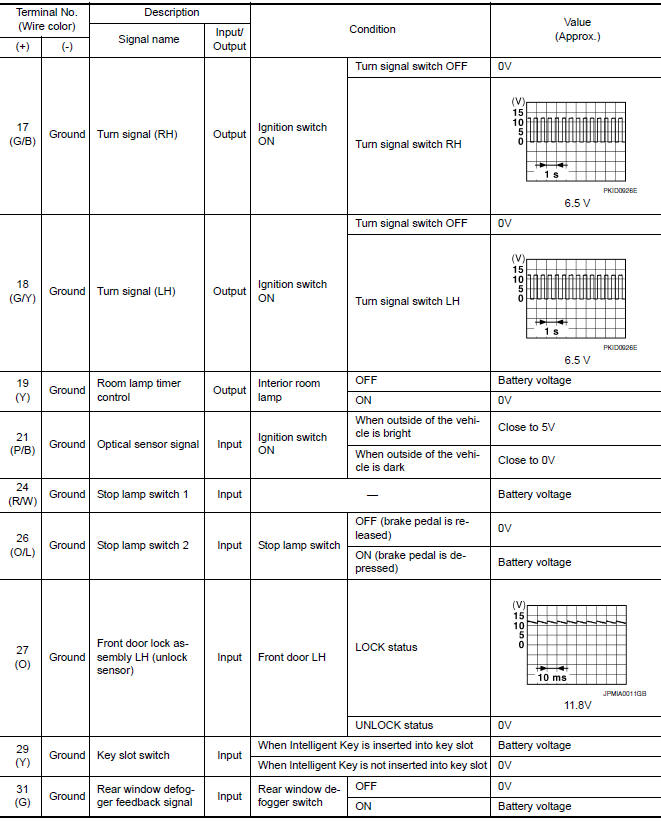

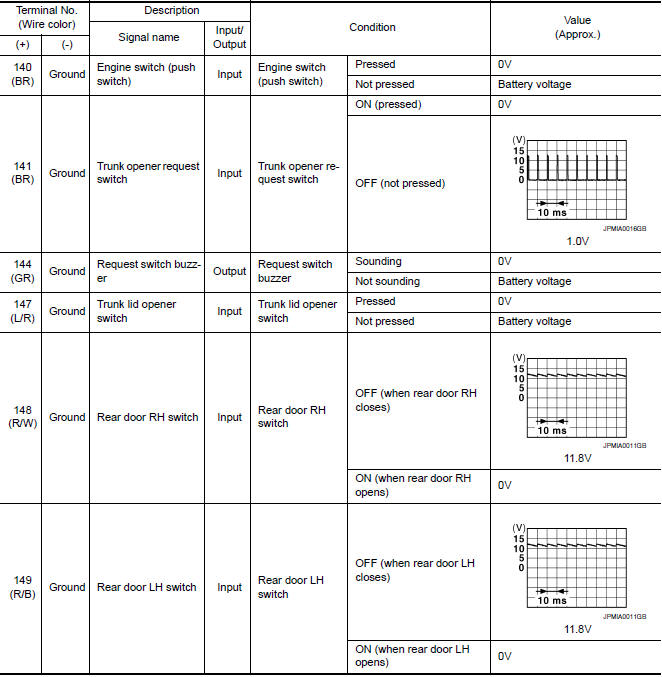

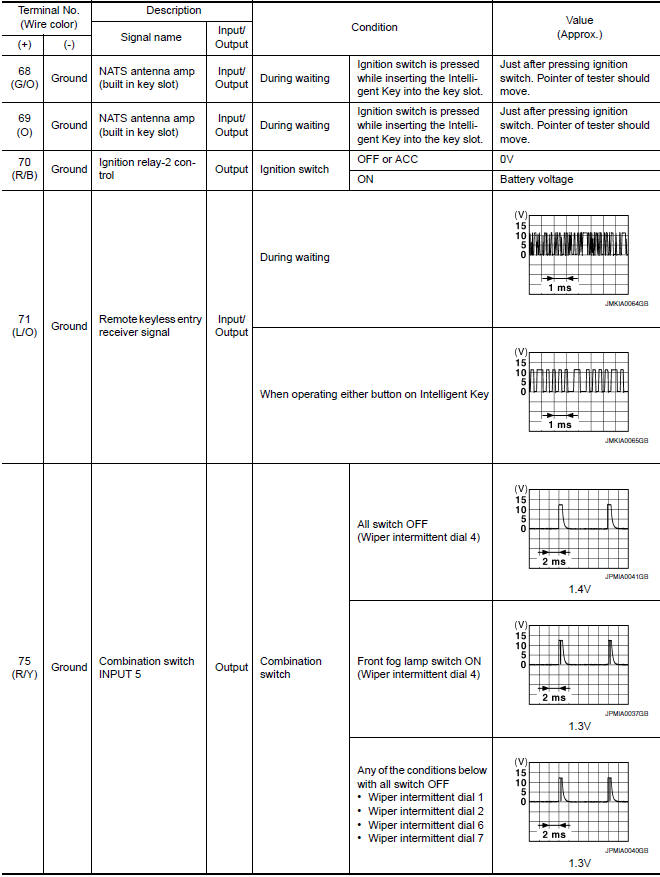

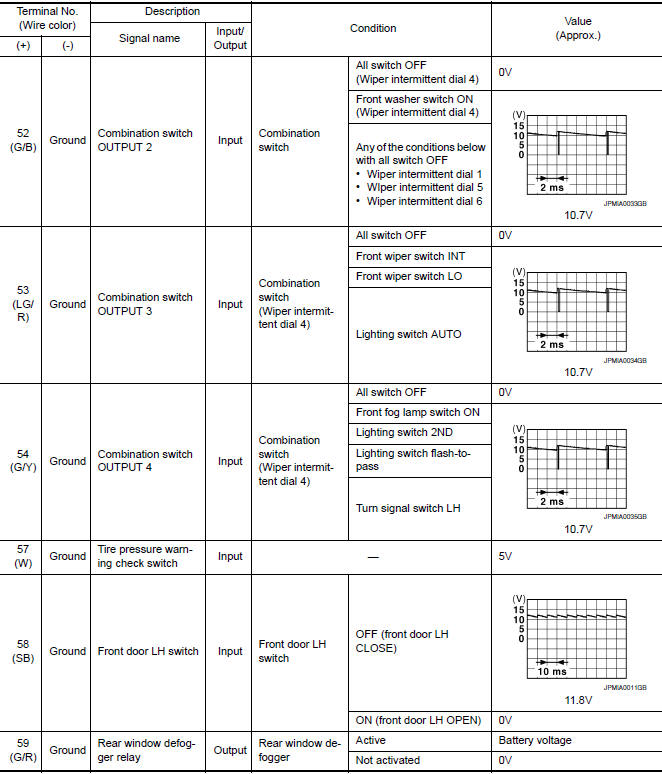

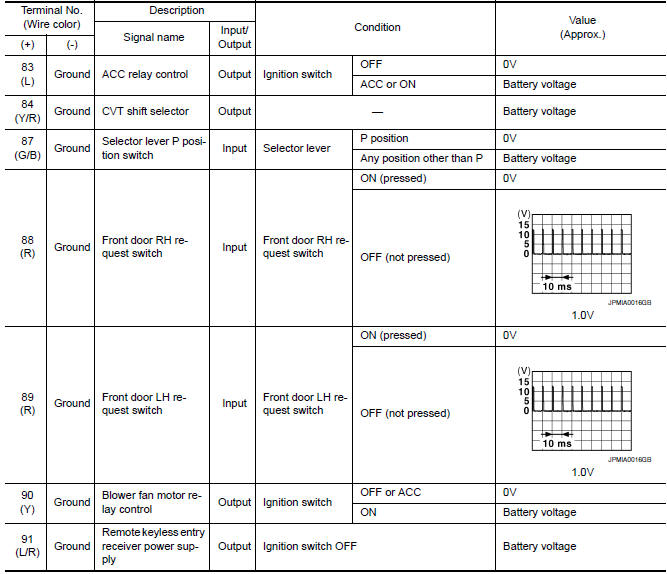

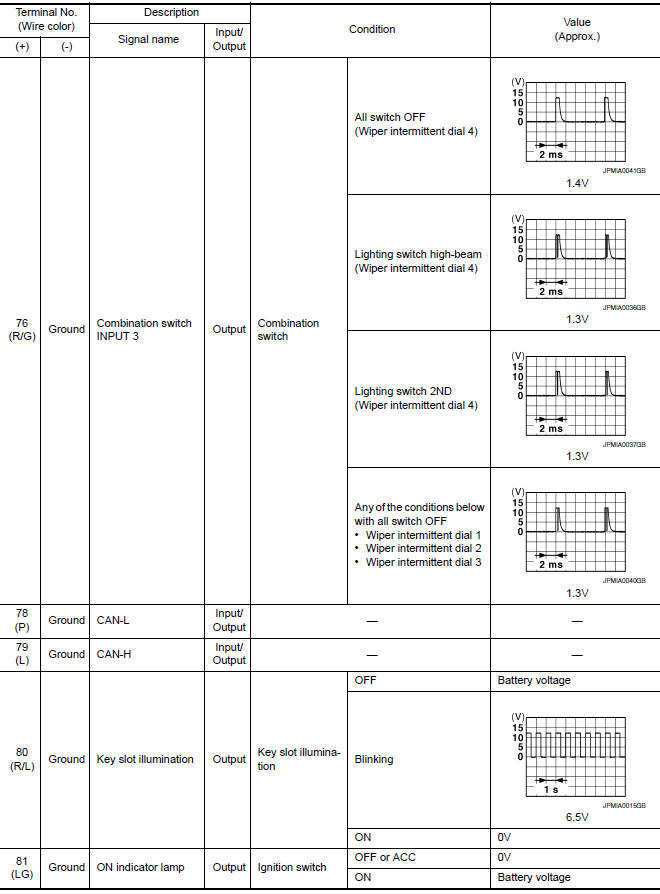

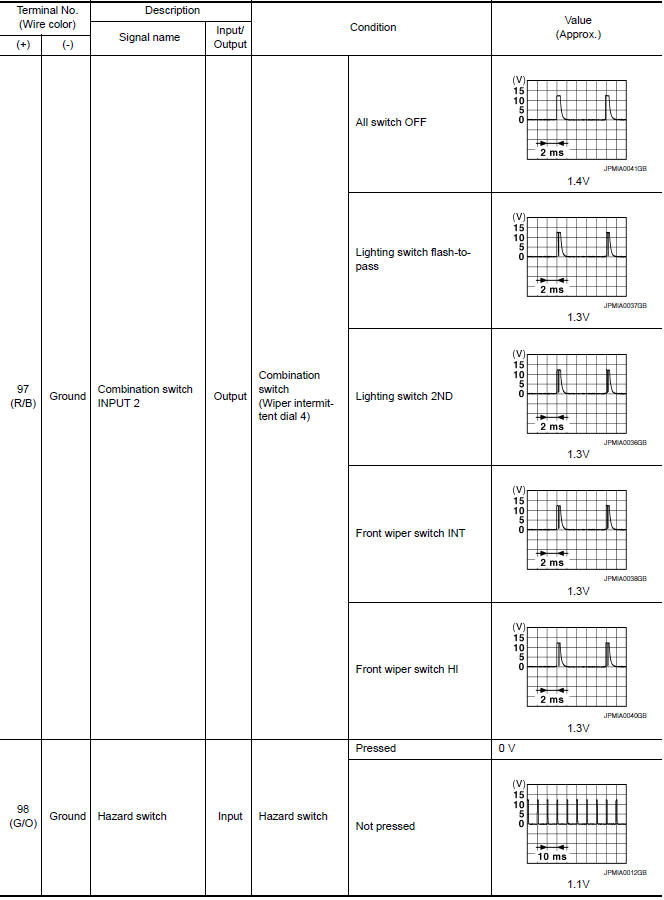

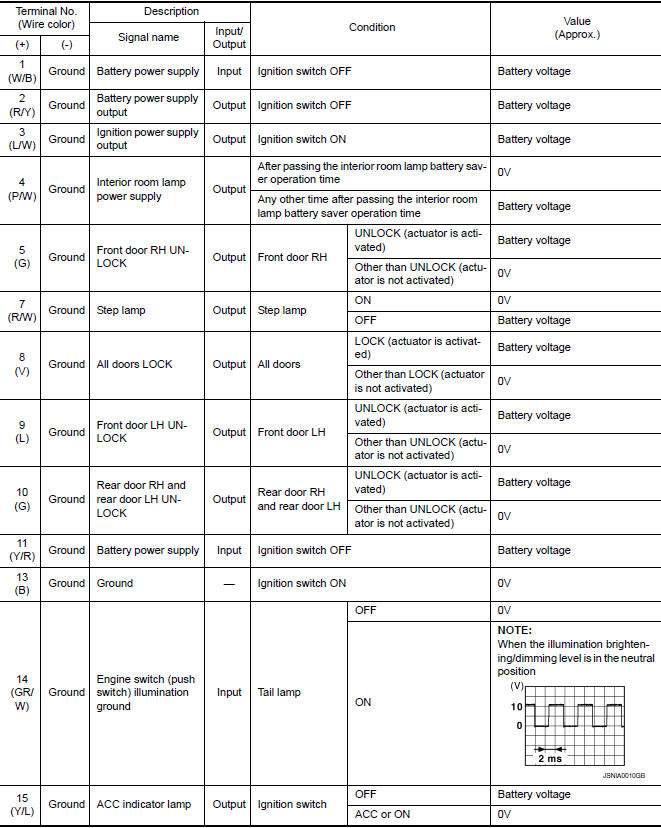

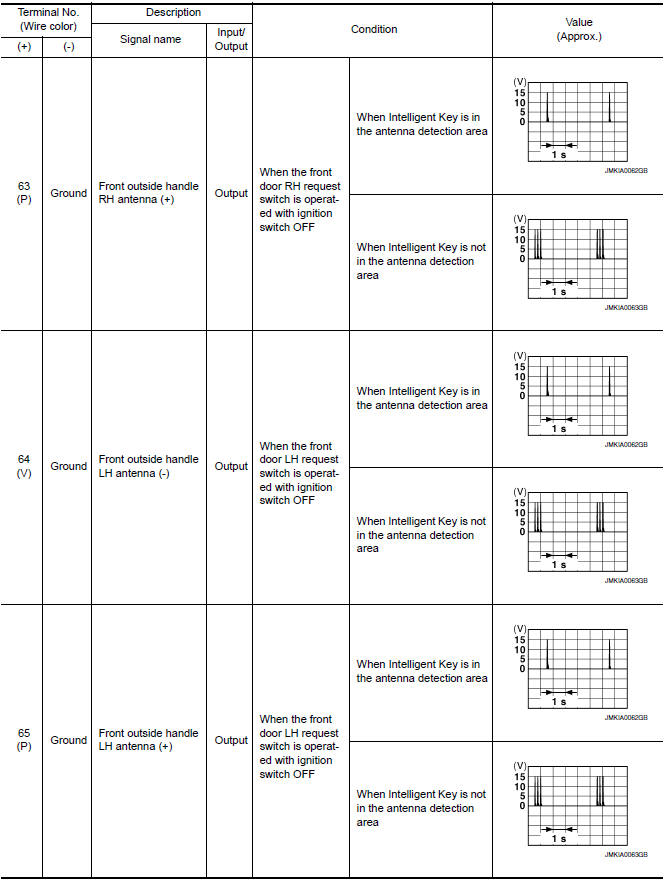

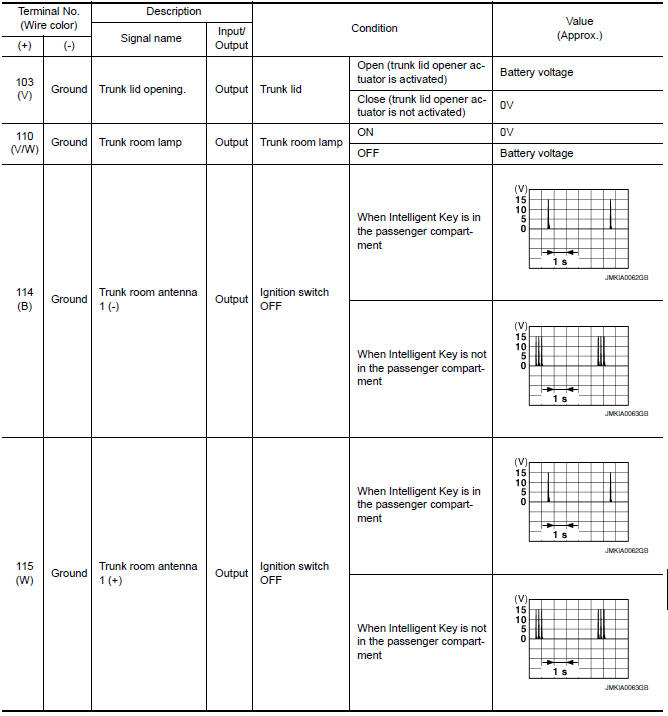

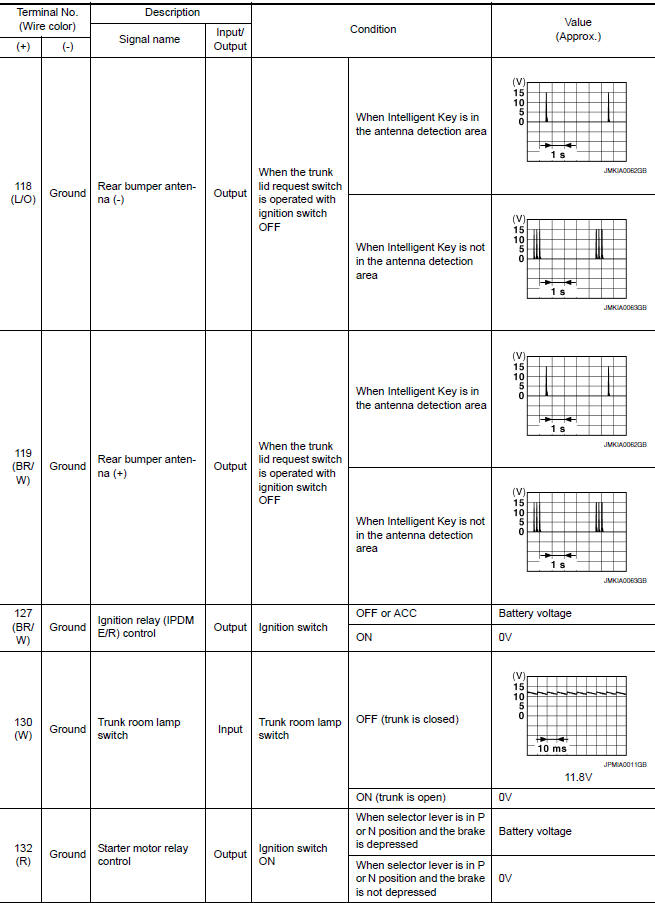

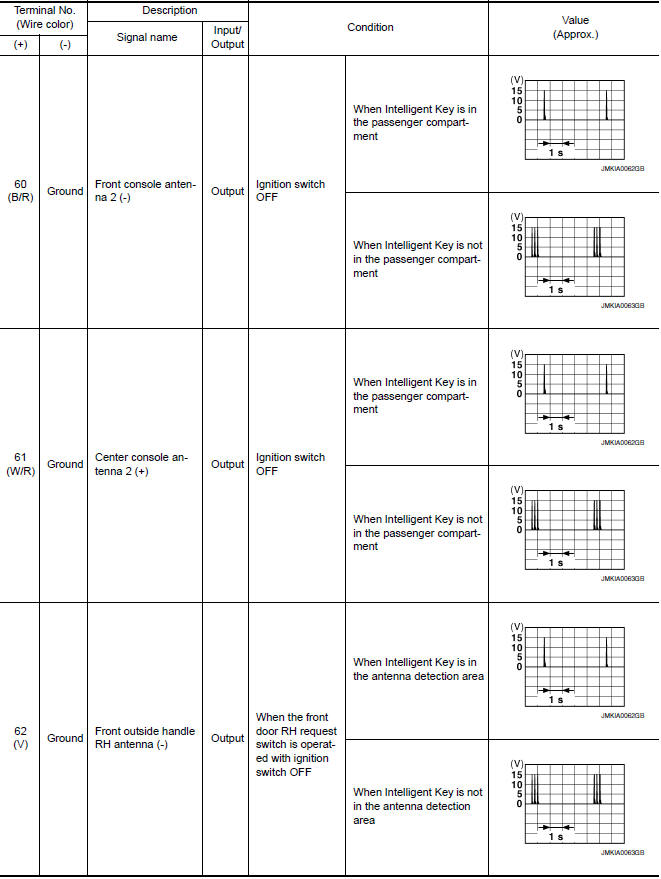

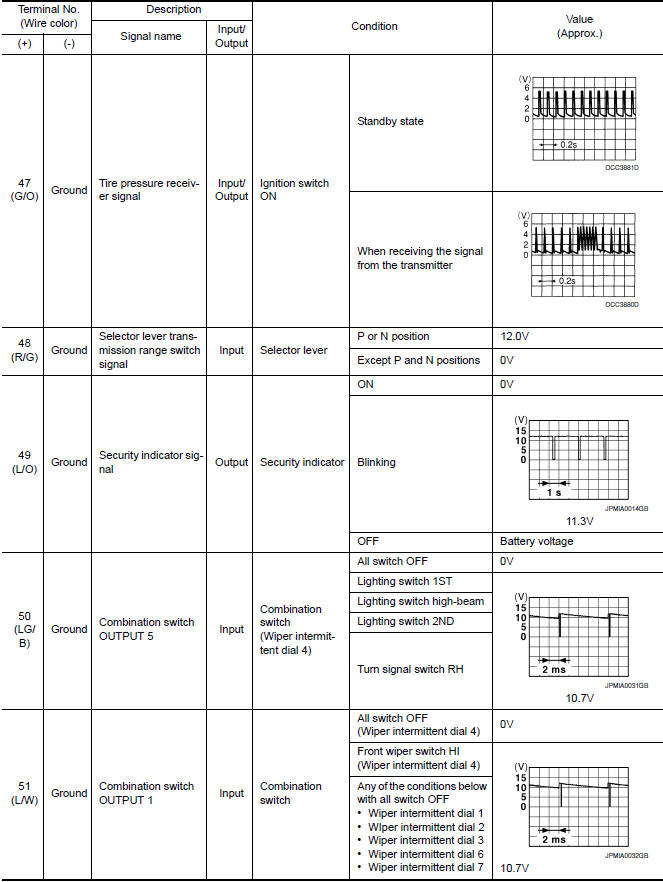

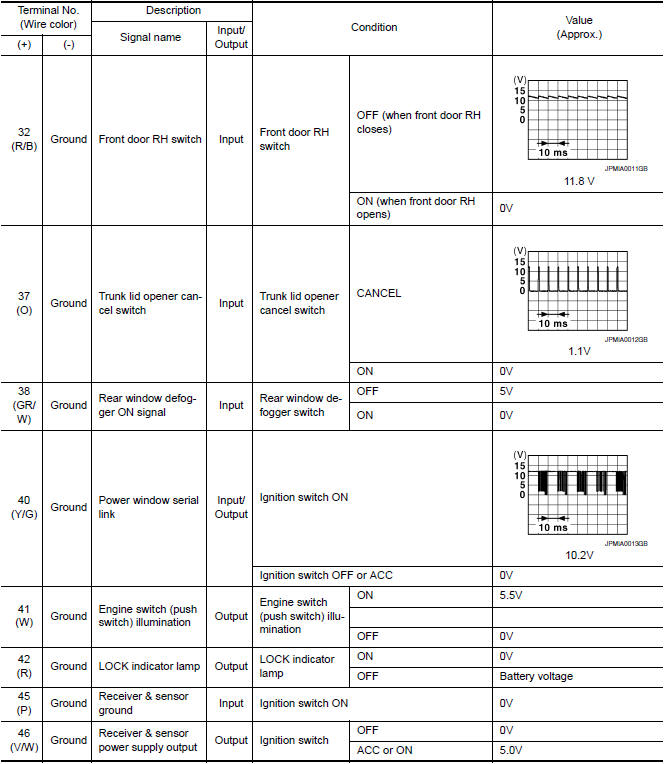

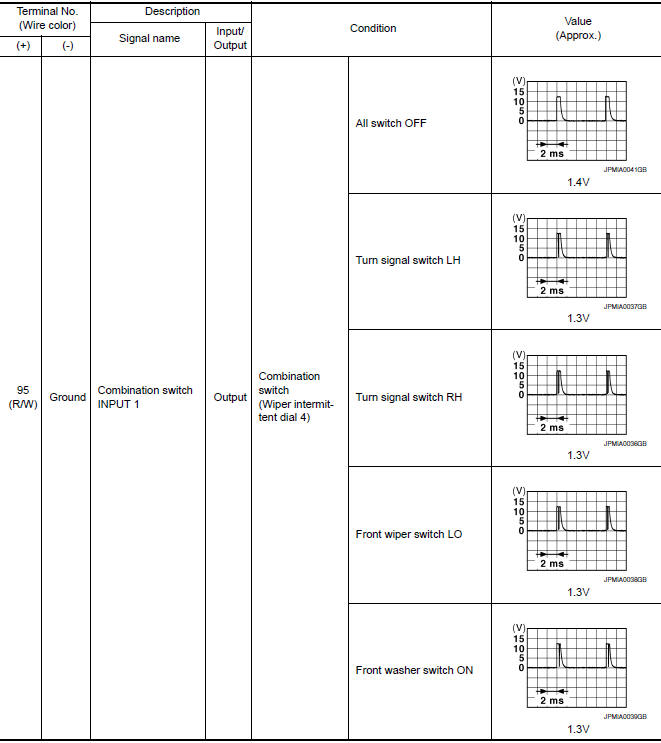

Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

Nissan Maxima. Physical Values

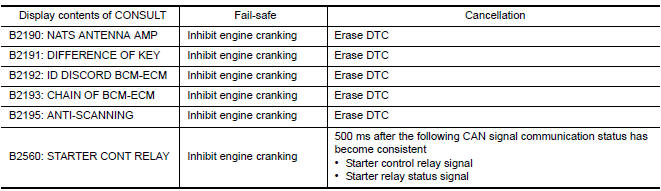

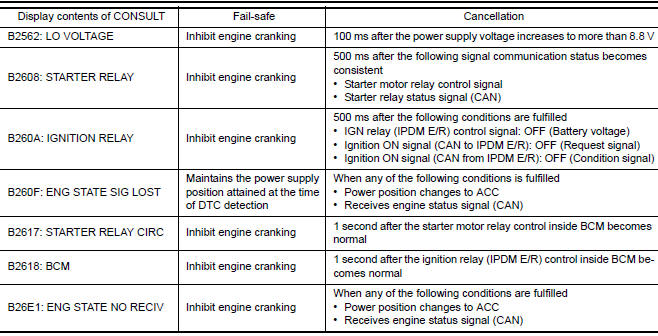

Fail Safe

Nissan Maxima. Fail Safe

Nissan Maxima. Fail Safe

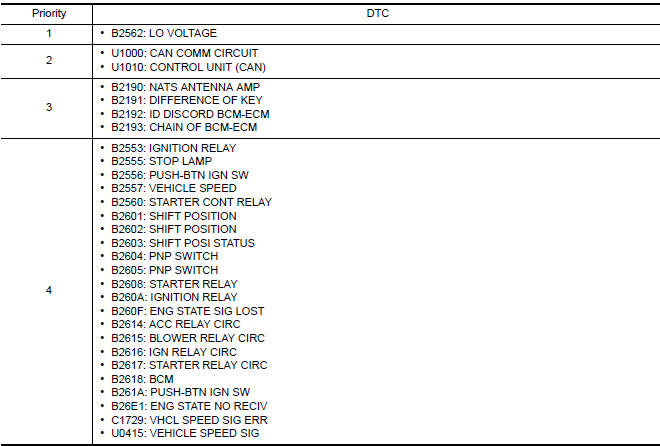

DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

Nissan Maxima. DTC Inspection Priority Chart

Nissan Maxima. DTC Inspection Priority Chart

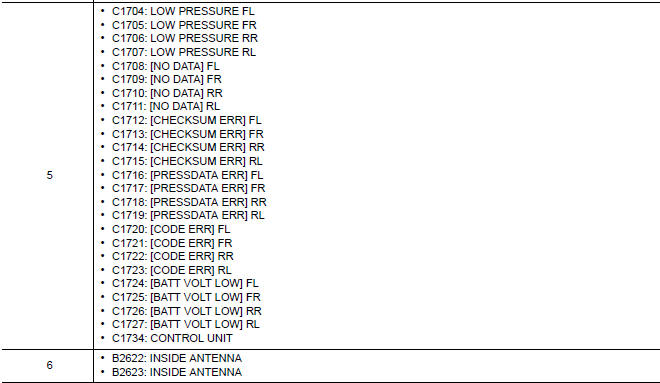

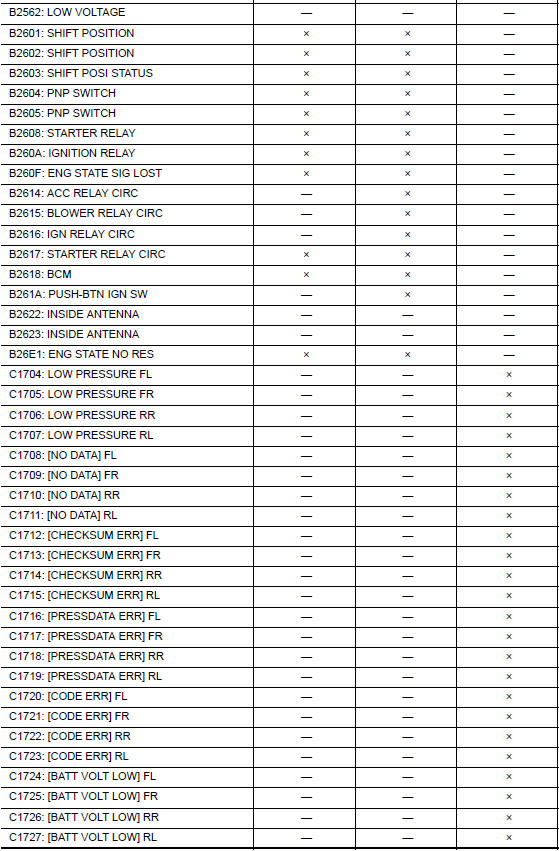

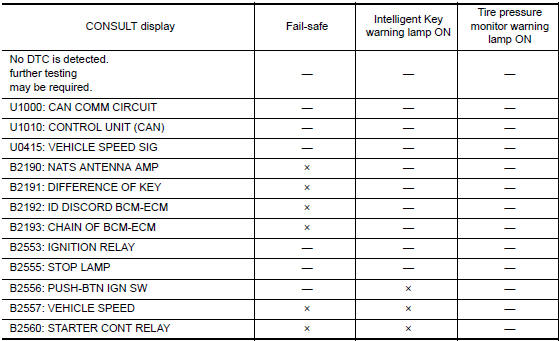

DTC Index

NOTE:
Details of time display

  • CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning ignition
    switch OFF → ON again.
  • 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases 1 → 2
    → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
    remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
    OFF → ON after returning to the normal condition if the malfunction is detected again.

Nissan Maxima. DTC Inspection Priority Chart

Nissan Maxima. DTC Inspection Priority Chart

Nissan Maxima. DTC Inspection Priority Chart
