Nissan Maxima Service and Repair Manual: Headlamp

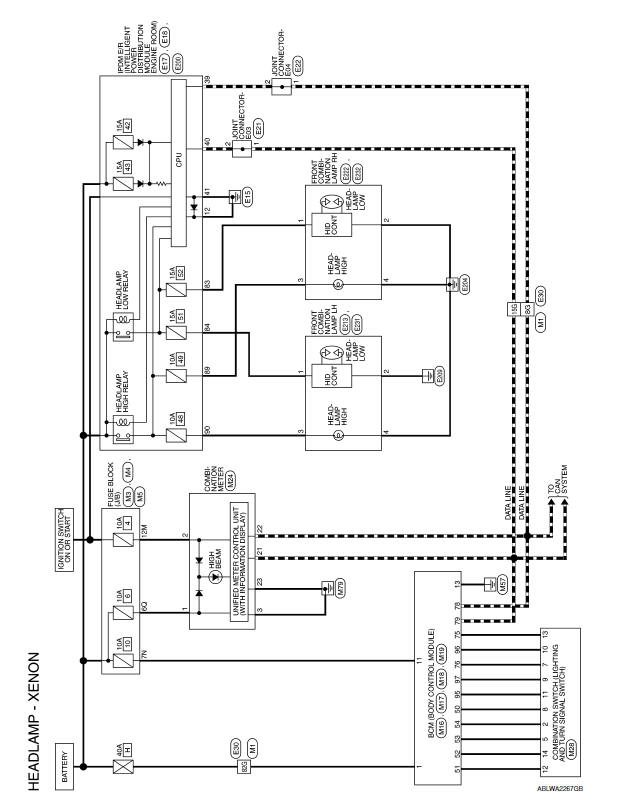

Wiring Diagram

Nissan Maxima. HEADLAMP

Nissan Maxima. HEADLAMP

Nissan Maxima. HEADLAMP

Nissan Maxima. HEADLAMP

Nissan Maxima. HEADLAMP

Nissan Maxima. HEADLAMP

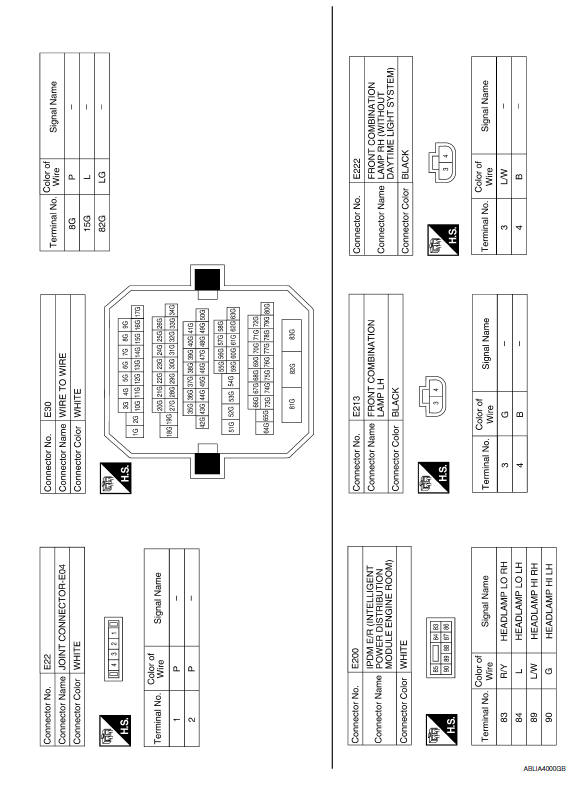

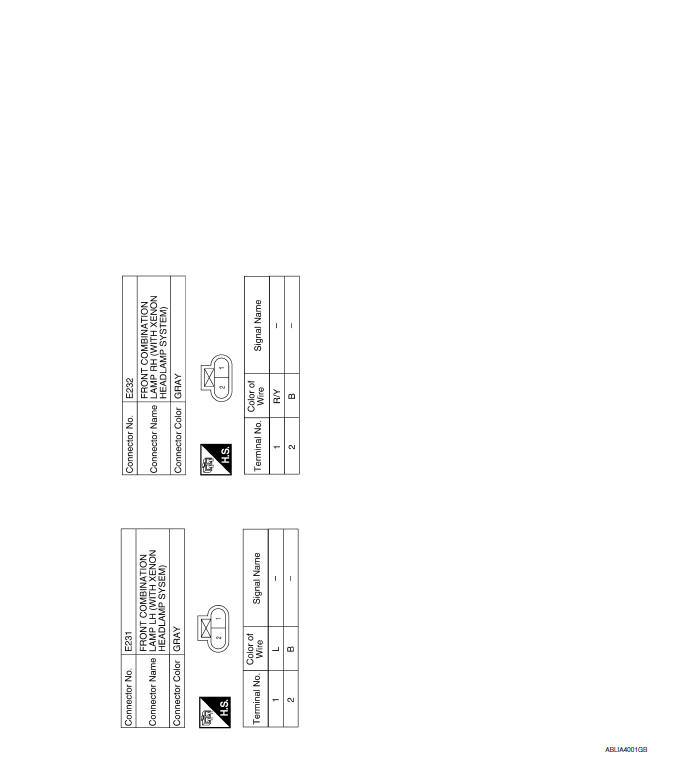

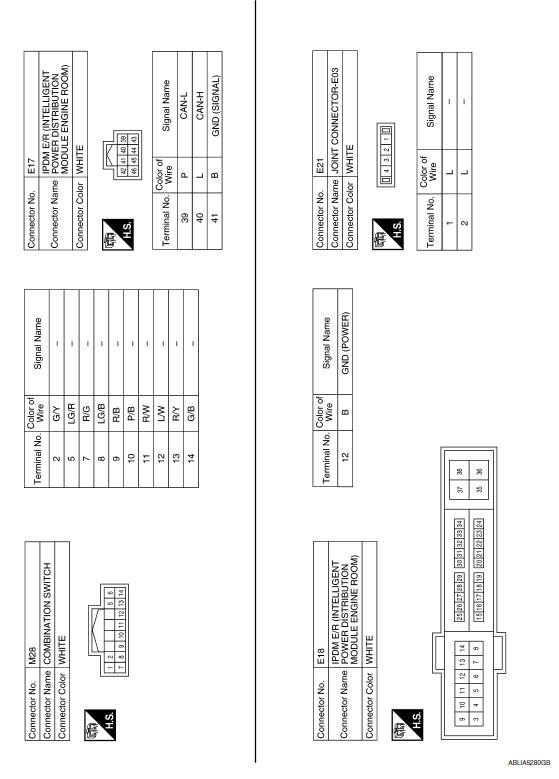

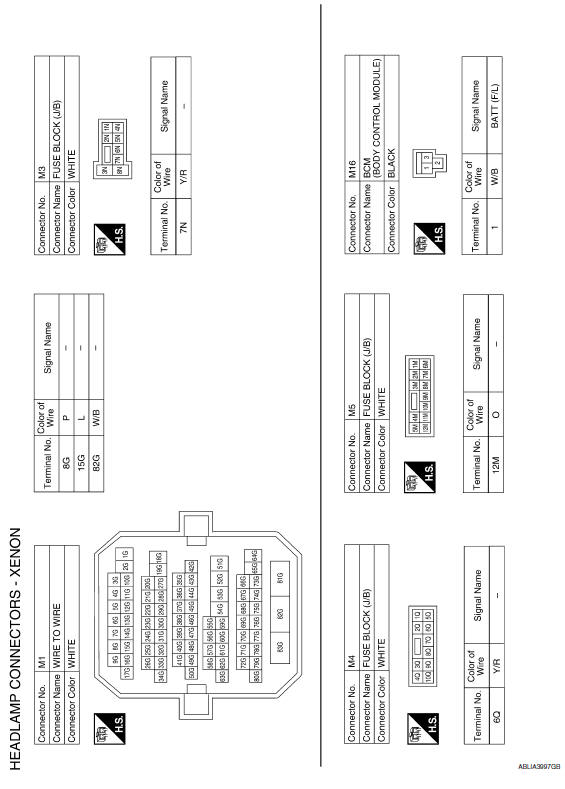

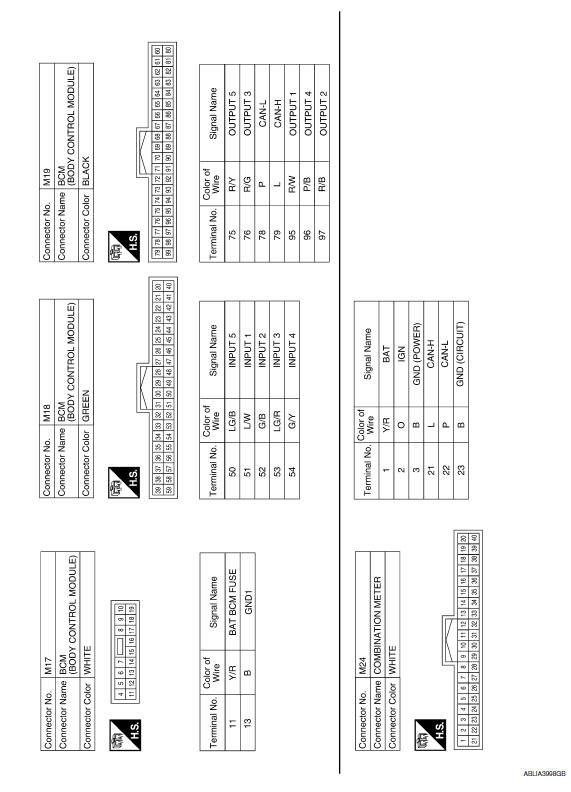

    Wiring diagram
    ...
