Nissan Maxima Service and Repair Manual: Turn signal and hazard warning lamp system

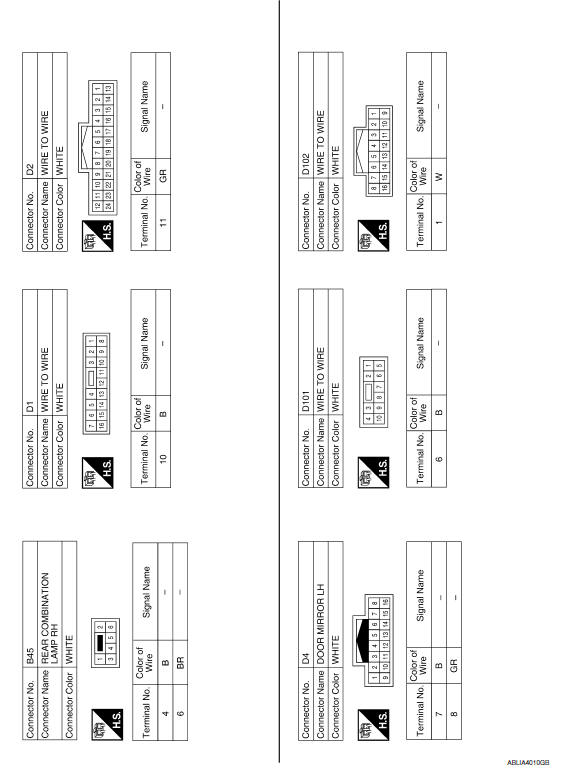

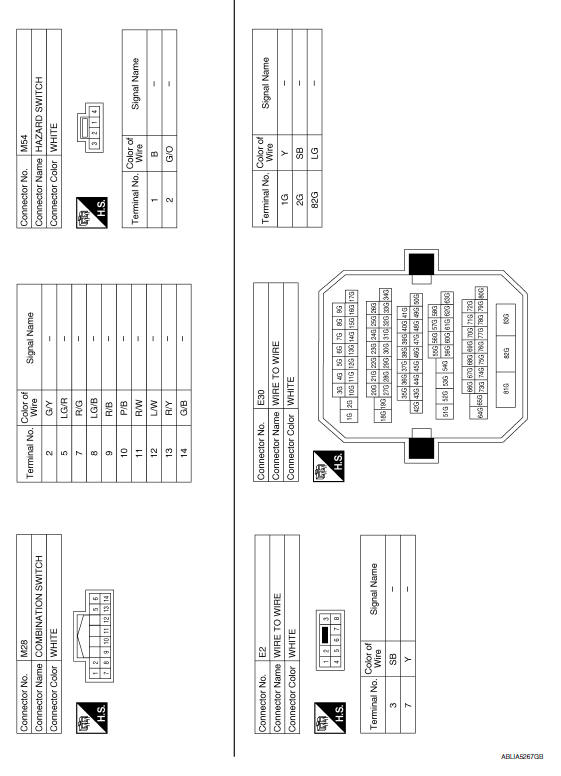

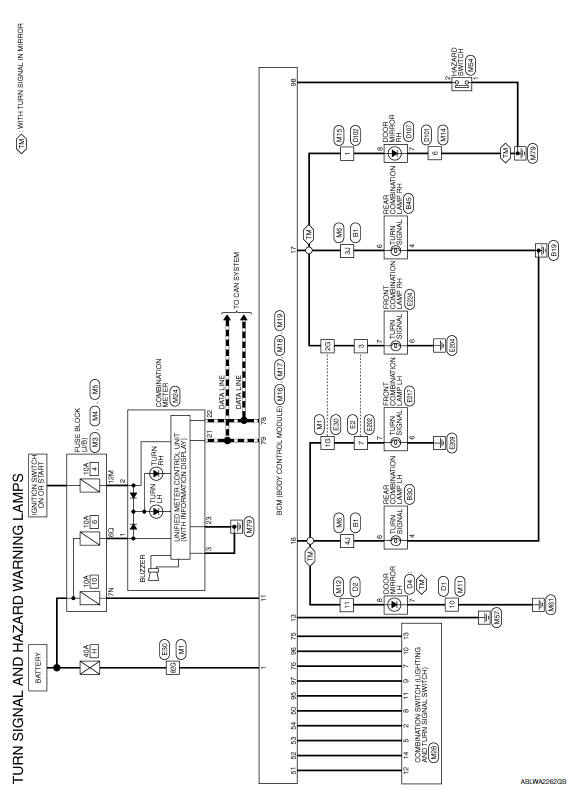

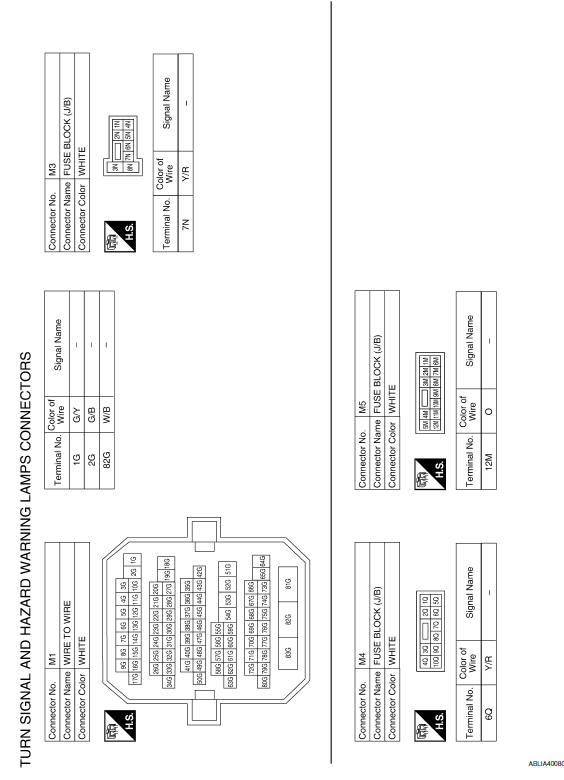

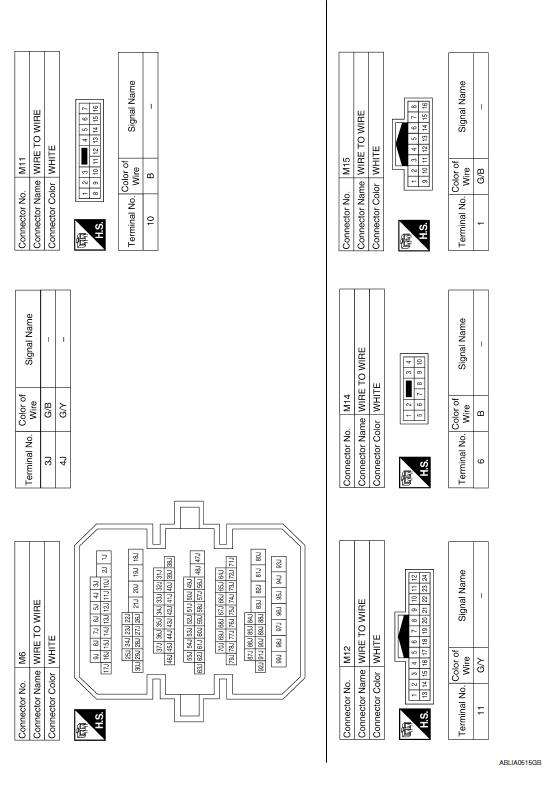

Wiring Diagram

Nissan Maxima. TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

Nissan Maxima. TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

Nissan Maxima. TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

Nissan Maxima. TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

Nissan Maxima. TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

Nissan Maxima. TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

Nissan Maxima. TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

Nissan Maxima. TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

    Front fog lamp system
    Wiring Diagram ...

    Parking, license plate and tail lamps system
    Wiring Diagram ...
