Nissan Maxima Service and Repair Manual: Optical sensor

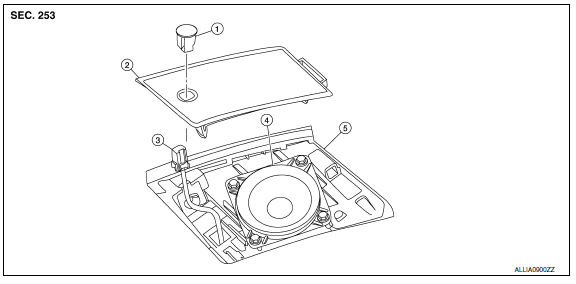

Exploded View
- Optical sensor
- LH front tweeter speaker grille
- Optical sensor harness connector
- LH front tweeter speaker
- Instrument panel
Removal and Installation
CAUTION: Whenever a suitable tool is used, always wrap a cloth around the end of the tool to protect components from damage.
REMOVAL
- Carefully remove the LH front tweeter speaker grille using a suitable tool.
- Insert a suitable tool between the optical sensor and the LH front tweeter speaker grille. Lift the optical sensor upward.
- Disconnect the harness connector from the optical sensor and remove.
INSTALLATION
Installation is in the reverse order of removal.
DOOR MIRROR TURN SIGNAL LAMP
Removal and Instal
The door mirror turn signal lamp is an integral part of the door mirror and must be replaced as an assembly.
Front fog lamp
Exploded View
Front bumper fascia
Front fog lamp
Front fog lamp bracket
Clip
Spring nuts
Removal and Installation
FRONT FOG LAMP
Removal
Remove the front bumper fascia. Refer ...
Lighting & turn signal switch
Removal and Installation
NOTE: The lighting and turn signal switch is
integral with the combination switch assembly.
REMOVAL
Unlock steering wheel.
CAUTION:
Before servicing, disconnec ...
