Nissan Maxima Service and Repair Manual: Front fog lamp

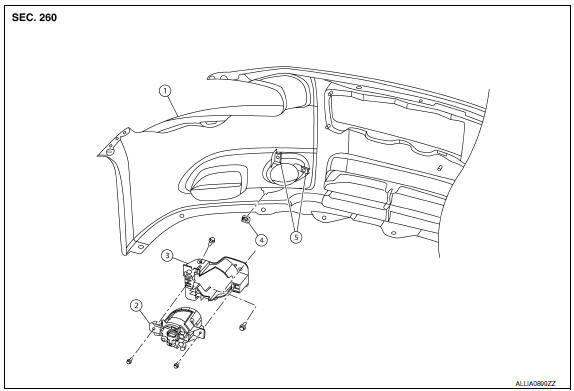

Exploded View

Nissan Maxima. Exploded View

  1. Front bumper fascia
  2. Front fog lamp
  3. Front fog lamp bracket
  4. Clip
  5. Spring nuts

Removal and Installation

FRONT FOG LAMP

Removal

  1. Remove the front bumper fascia. Refer to EXT-16, "Removal and Installation".
  2. Disconnect the harness connector from the fog lamp.
  3. Remove the front fog lamp bolts.
  4. Remove the front fog lamp.

Installation

Installation is in the reverse order of removal.

NOTE: After installation, perform front fog lamp aiming adjustment. Refer to EXL-153, "Aiming Adjustment Procedure".

FRONT FOG LAMP BULB

Removal

WARNING: Do not touch bulb with your hand while it is on or right after being turned off, a burn injury may result.

CAUTION:

  • Do not touch bulb glass with your hand or keep other grease and oily substances away from bulb glass.
  • Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

Nissan Maxima. FRONT FOG LAMP BULB

  1. Remove the front fender protector. Refer to EXT-24, "Removal and Installation".
  2. Disconnect the harness connector (1) from the fog lamp.
  3. Rotate the bulb (2) counterclockwise and unlock it.

Installation

Installation is in the reverse order of removal.
