DRIVER SIDE

DRIVER SIDE : Description

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch.

DRIVER SIDE : Component Function Check

1. CHECK FRONT POWER WINDOW MOTOR LH

Check that front power window motor LH operates with main power window and door lock/unlock switch.

DRIVER SIDE : Diagnosis Procedure

1. CHECK FRONT POWER WINDOW MOTOR LH

Check front power window motor LH

2. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL

Nissan Maxima. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL

  1. Disconnect front power window motor LH connector.
  2. Turn ignition switch ON.

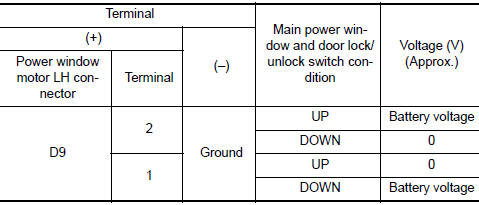

  3. Check voltage between front power window motor LH connector D9 terminals 1, 2 and ground.

Nissan Maxima. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL

3. CHECK HARNESS CONTINUITY

Nissan Maxima. CHECK HARNESS CONTINUITY

  1. Turn ignition switch OFF.
  2. Disconnect main power window and door lock/unlock switch connector D7.

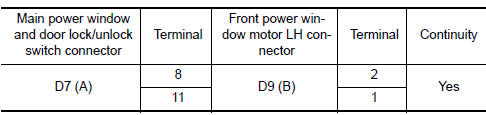

  3. Check continuity between main power window and door lock/ unlock switch connector D7 (A) terminals 8, 11 and front power window motor connector LH D9 (B) terminals 1, 2.
  4. Check continuity between main power window and door lock/unlock switch connector D7 (A) terminals 8, 11 and ground.

Nissan Maxima. CHECK HARNESS CONTINUITY

Nissan Maxima. CHECK HARNESS CONTINUITY

DRIVER SIDE : Component Inspection

COMPONENT INSPECTION

1. CHECK FRONT POWER WINDOW MOTOR LH

  1. Disconnect front power window motor LH.
  2. Check motor operation by connecting battery voltage directly to front power window motor LH.

Nissan Maxima. CHECK FRONT POWER WINDOW MOTOR LH

DRIVER SIDE : Special Repair Requirement

1. PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.

2. CHECK ANTI-PINCH OPERATION

Check anti-pinch operation.

PASSENGER SIDE

PASSENGER SIDE : Description

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or power window and door lock/unlock switch RH.

PASSENGER SIDE : Component Function Check

1. CHECK POWER WINDOW MOTOR CIRCUIT

Check that front power window motor RH operates with main power window and door lock/unlock switch or power window and door lock/unlock switch RH.

PASSENGER SIDE : Diagnosis Procedure

1. CHECK FRONT POWER WINDOW MOTOR RH

Check front power window motor RH.

2. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL

Nissan Maxima. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL

  1. Disconnect front power window motor RH connector.
  2. Turn ignition switch ON.

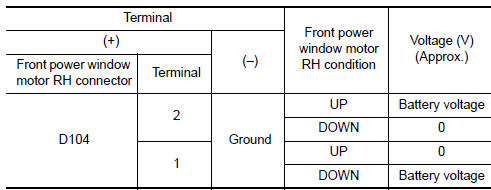

  3. Check voltage between front power window motor RH connector D104 terminals 1, 2 and ground.

Nissan Maxima. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL

3. CHECK HARNESS CONTINUITY

Nissan Maxima. CHECK HARNESS CONTINUITY

  1. Turn ignition switch OFF.
  2. Disconnect power window and door lock/unlock switch RH connector.

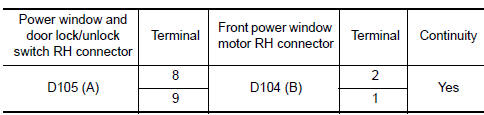

  3. Check continuity between power window and door lock/unlock switch RH connector D105 (A) terminals 8, 9 and front power window motor RH connector D104 (B) terminals 1, 2.

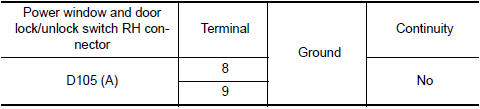

  4. Check continuity between power window and door lock/unlock switch RH connector D105 (A) terminals 8, 9 and ground.

Nissan Maxima. CHECK HARNESS CONTINUITY

Nissan Maxima. CHECK HARNESS CONTINUITY

PASSENGER SIDE : Component Inspection

COMPONENT INSPECTION

1. CHECK FRONT POWER WINDOW MOTOR RH

  1. Disconnect front power window motor RH.
  2. Check motor operation by connecting battery voltage directly to front power window motor RH.

Nissan Maxima. CHECK FRONT POWER WINDOW MOTOR RH

PASSENGER SIDE : Special Repair Requirement

1. PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.

2. CHECK ANTI-PINCH OPERATION

Check anti-pinch operation.

REAR LH

REAR LH : Description

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or rear power window switch LH.

REAR LH : Component Function Check

1. CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

Check that rear power window motor LH operates with main power window and door lock/unlock switch or rear power window switch LH.

REAR LH : Diagnosis Procedure

1. CHECK REAR POWER WINDOW MOTOR LH

Check rear power window motor LH.

2. CHECK REAR POWER WINDOW SWITCH LH OUTPUT SIGNAL

Nissan Maxima. CHECK REAR POWER WINDOW SWITCH LH OUTPUT SIGNAL

  1. Disconnect rear power window motor LH connector.
  2. Turn ignition switch ON.

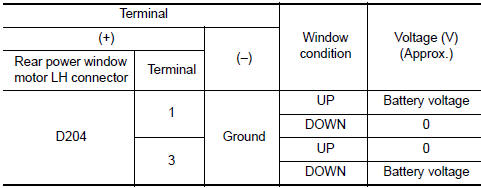

  3. Check voltage between rear power window motor LH connector D204 terminal 1, 3 and ground.

Nissan Maxima. CHECK REAR POWER WINDOW SWITCH LH OUTPUT SIGNAL

3. CHECK HARNESS CONTINUITY

Nissan Maxima. CHECK HARNESS CONTINUITY

  1. Turn ignition switch OFF.
  2. Disconnect rear power window switch LH connector.
  3. Check continuity between rear power window switch LH connector D203 (A) terminals 4, 5 and rear power window motor LH connector D204 (B) terminals 1, 3.
  4. Check continuity between rear power window switch LH connector D203 (A) terminals 4, 5 and ground.

Nissan Maxima. CHECK HARNESS CONTINUITY

Nissan Maxima. CHECK HARNESS CONTINUITY

REAR LH : Component Inspection

COMPONENT INSPECTION

1. CHECK REAR POWER WINDOW MOTOR LH

  1. Disconnect rear power window motor LH.
  2. Check motor operation by connecting battery voltage directly to rear power window motor LH.

Nissan Maxima. CHECK REAR POWER WINDOW MOTOR LH

REAR RH

REAR RH : Description

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or rear power window switch RH.

REAR RH : Component Function Check

1. CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

Check that rear power window motor RH operates with main power window and door lock/unlock switch or rear power window switch RH.

1. CHECK REAR POWER WINDOW MOTOR RH

Check rear power window motor RH.

2. CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

Nissan Maxima. CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

  1. Disconnect rear power window motor RH connector.
  2. Turn ignition switch ON.

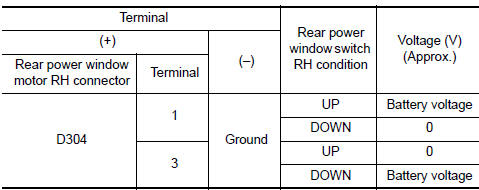

  3. Check voltage between rear power window motor RH connector D304 terminal 1, 3 and ground.

Nissan Maxima. CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

3. CHECK HARNESS CONTINUITY

Nissan Maxima. CHECK HARNESS CONTINUITY

  1. Turn ignition switch OFF.
  2. Disconnect rear power window switch RH connector.
  3. Check continuity between rear power window switch RH connector D303 (A) terminals 4, 5 and rear power window motor RH connector D304 (B) terminals 1, 3.
  4. Check continuity between rear power window switch RH connector D303 (A) terminals 4, 5 and ground.

Nissan Maxima. CHECK HARNESS CONTINUITY

Nissan Maxima. CHECK HARNESS CONTINUITY

REAR RH : Component Inspection

COMPONENT INSPECTION

1.CHECK REAR POWER WINDOW MOTOR RH

  1. Disconnect rear power window motor RH.
  2. Check motor operation by connecting battery voltage directly to rear power window motor RH.

Nissan Maxima. CHECK REAR POWER WINDOW MOTOR RH

    Rear power window switch
    Description BCM supplies power. Rear power window motor operates when rear power window switch is activated. Component Function Check Rear Power Window Switch 1. CHECK REAR POWER WINDOW ...

    Encoder
    DRIVER SIDE DRIVER SIDE : Description Detects condition of the front power window motor LH operation and transmits to main power window and door lock/unlock switch as pulse signal. DRIVER SIDE ...
