Nissan Maxima Service and Repair Manual: Rear power window switch
Description
- BCM supplies power.
- Rear power window motor operates when rear power window switch is activated.
Component Function Check
Rear Power Window Switch
1. CHECK REAR POWER WINDOW MOTOR FUNCTION
Check that rear power window motor operates from rear power window switch.
Diagnosis Procedure
1. CHECK REAR POWER WINDOW SWITCH
Check rear power window switch
2. CHECK REAR POWER WINDOW SWITCH INPUT SIGNAL
- Turn ignition switch OFF.
- Disconnect rear power window switch connector.
- Turn ignition switch ON.

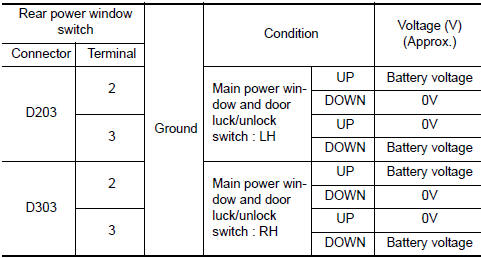

- Check voltage between rear power window switch connector and ground.
3. CHECK HARNESS CONTINUITY (REAR POWER WINDOW SWITCH LH)
- Turn ignition switch OFF.
- Disconnect main power window and door lock/unlock switch connector D7 and rear power window switch LH connector.

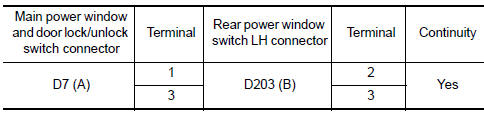

- Check continuity between main power window and door lock/ unlock switch connector D7 (A) terminals 1, 3 and rear power window switch LH connector D203 (B) terminals 2, 3.
- Check continuity between main power window and door lock/unlock switch connector D7 (A) terminals 1, 3 and ground.
4. CHECK HARNESS CONTINUITY (REAR POWER WINDOW SWITCH RH)
- Turn ignition switch OFF.
- Disconnect main power window and door lock/unlock switch connector D7 and rear power window switch RH connector.

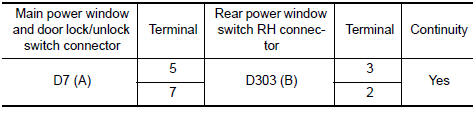

- Check continuity between main power window and door lock/ unlock switch connector D7 (A) terminals 5, 7 and rear power window switch RH connector D303 (B) terminals 2, 3.
- Check continuity between main power window and door lock/unlock switch connector D7 (A) terminals 5, 7 and ground.
Component Inspection
COMPONENT INSPECTION
1.CHECK REAR POWER WINDOW SWITCH

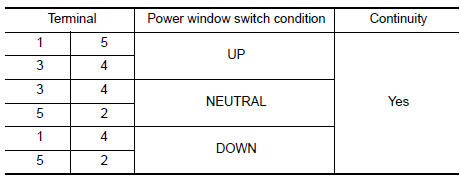

Check rear power window switch.
Special Repair Requirement
1. PERFORM INITIALIZATION PROCEDURE
Perform initialization procedure.
2. CHECK ANTI-PINCH OPERATION
Check anti-pinch operation.
Power supply and ground circuit
BCM
BCM : Diagnosis Procedure
1. CHECK FUSE AND FUSIBLE LINK
Check if the following BCM fuses or fusible link are blown.
2. CHECK POWER SUPPLY CIRCUIT
Turn ignition switch OFF.
Disconnec ...
Power window motor
DRIVER SIDE
DRIVER SIDE : Description
Door glass moves UP/DOWN by receiving the signal from main power window and
door lock/unlock switch.
DRIVER SIDE : Component Function Check
1. CHECK FRONT P ...
