Nissan Maxima Service and Repair Manual: High-mounted stop lamp
Exploded View

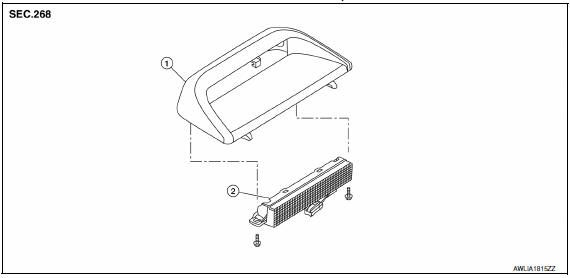

Models Without Rear Spoiler
- High-mounted stop lamp cover
- High-mounted stop lamp bulb

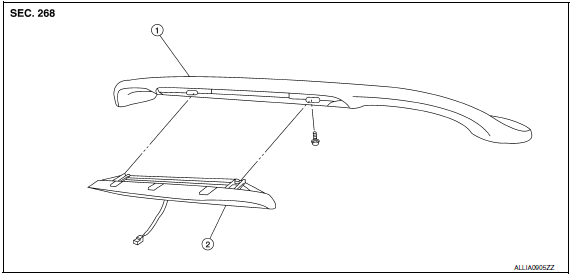

Models With Rear Spoiler
- Rear spoiler
- High-mounted stop lamp assembly
Removal and Installation
WITHOUT REAR SPOILER
Removal
- Slide the high-mounted stop lamp rearward on the parcel shelf to give clearance to the front locking tabs.
- Lift the front of the high-mounted stop lamp up and slide it forward to give clearance to the rear locking tabs.
- Disconnect the harness connector from the high-mounted stop lamp and remove.
Installation
Installation is in the reverse order of removal.
WITH REAR SPOILER
Removal
- Remove the high-mounted stop lamp screws.
- Remove the high-mounted stop lamp from the rear spoiler far enough to gain access to the connector.
- Disconnect the harness connector from the high-mounted stop lamp and remove.
Installation
Installation is in the reverse order of removal.
Rear combination lamp
Exploded View
Slide clip
Grommets
Rear combination lamp
Removal and Installation
REAR COMBINATION LAMP
Removal
Remove the trunk side finisher. Refer to INT-36, "Removal and
...
License plate lamp
Exploded View
License plate lamp
Removal and Installation
LICENSE PLATE LAMP
Removal
Remove the license lamp finisher. Refer to EXT-31, "Removal and
Installation".
Position trunk ...
