Nissan Maxima Service and Repair Manual: Daytime running light system

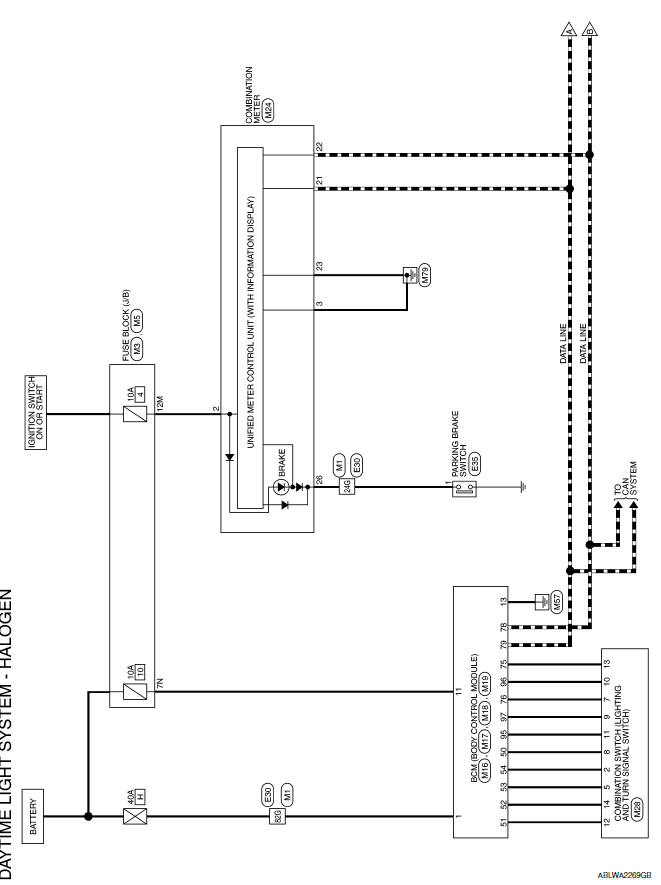

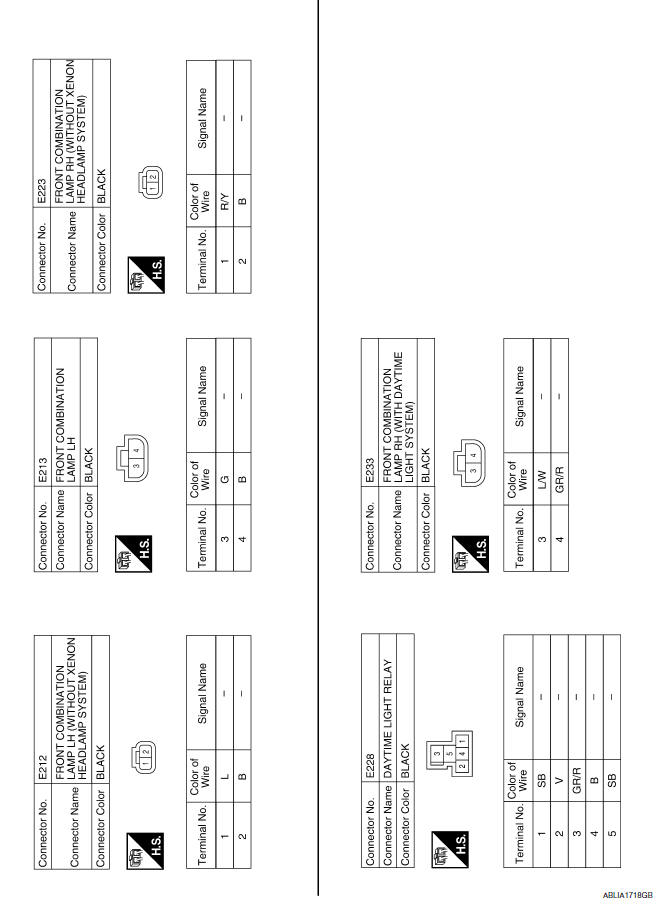

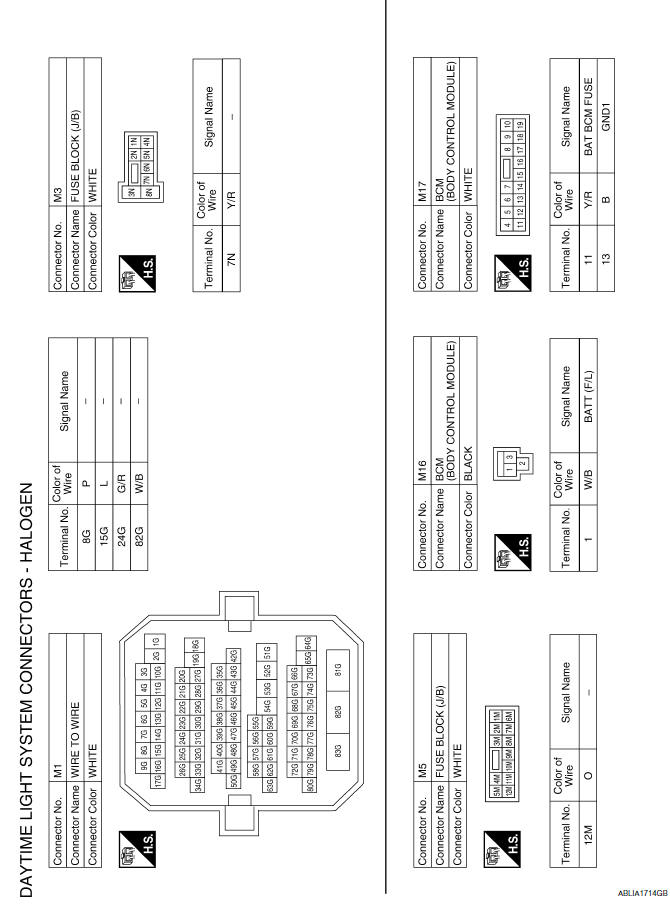

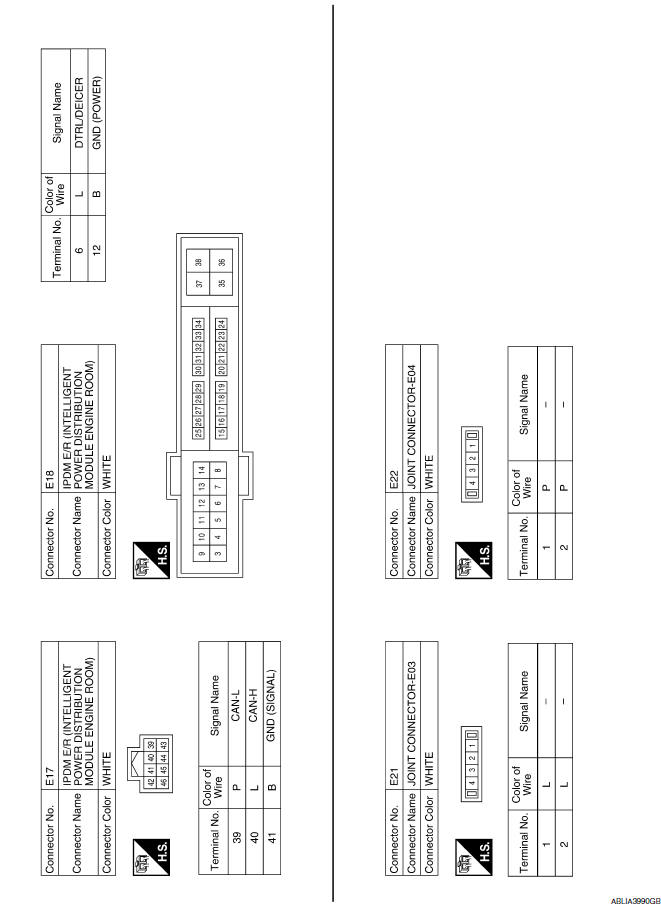

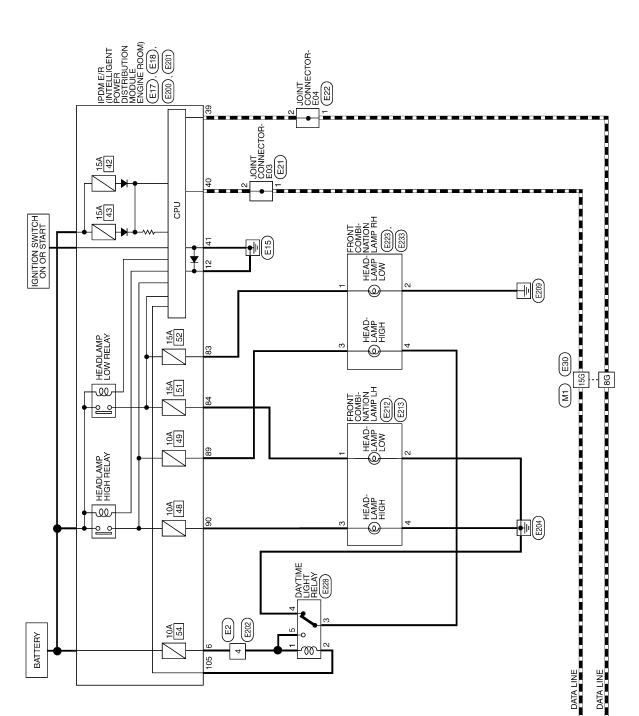

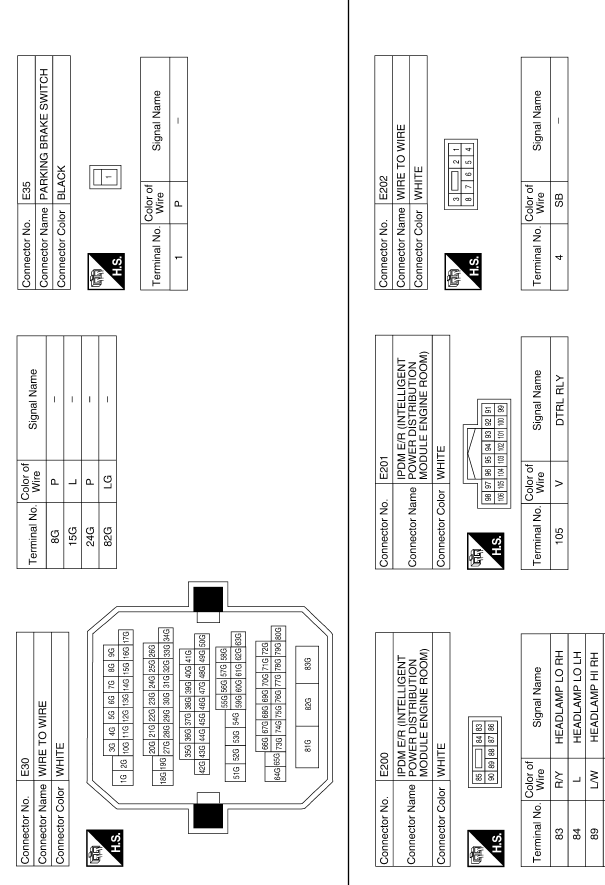

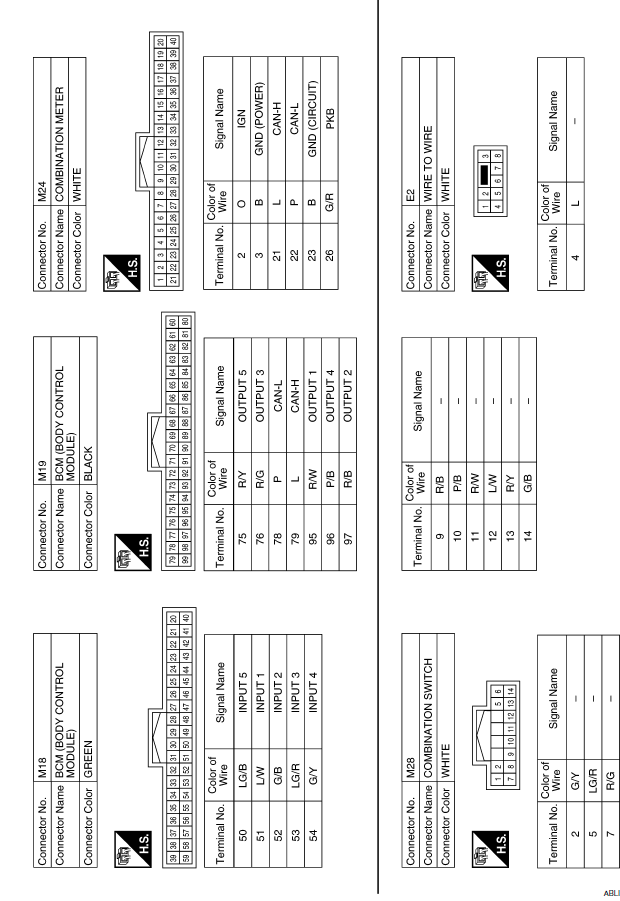

Wiring Diagram
Headlamp
Wiring Diagram
...
Auto light system
Wiring Diagram
...
Other materials:
U1000 CAN comm circuit
Description
CAN (Controller Area Network) is a serial communication line for real time
application. It is an on-vehicle multiplex
communication line with high data communication speed and excellent error
detection ability. Many electronic
control units are equipped onto a vehicle, and each ...
BCM (body control module)
Reference Value
NOTE:
The Signal Tech II Tool (J-50190) can be used
to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
Activate and display TPMS
transmitter IDs
Display tire pressure reported by
the TPMS transmitter
...
STRG branch line circuit
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the steering angle sensor
for damage, bend and loose connection
(unit side and connector side).
2.CHECK HARNESS FOR OPE ...
