Nissan Maxima Service and Repair Manual: Auto light system

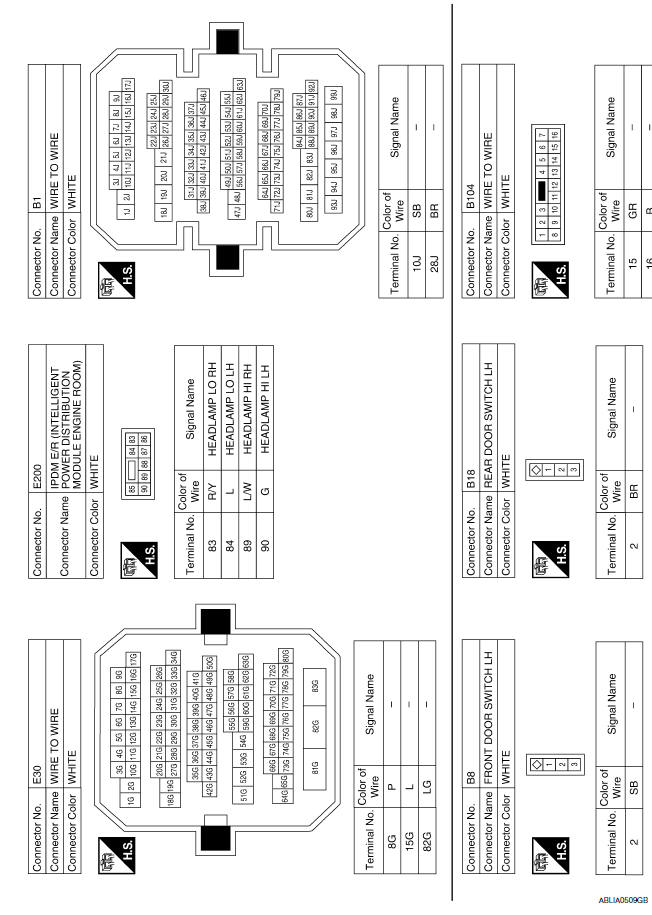

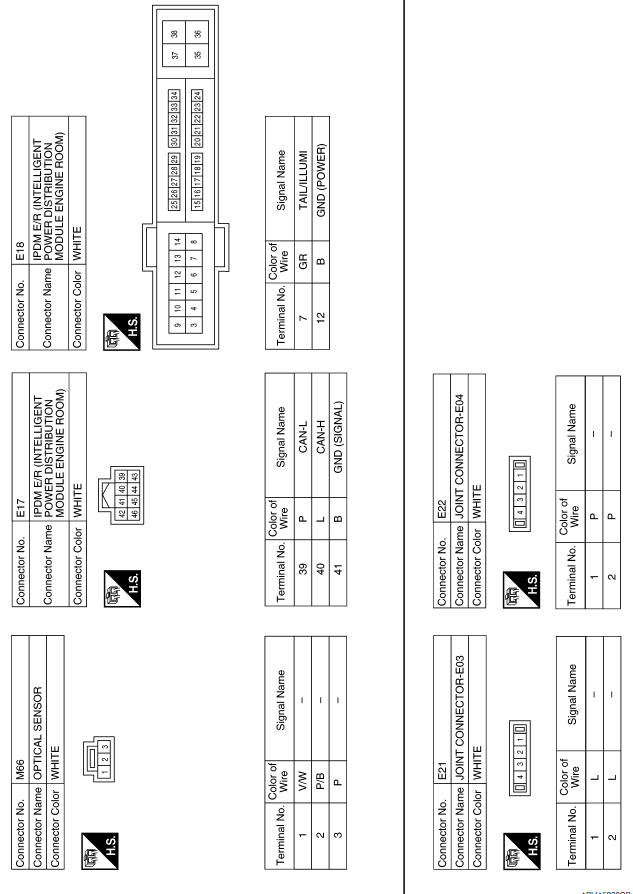

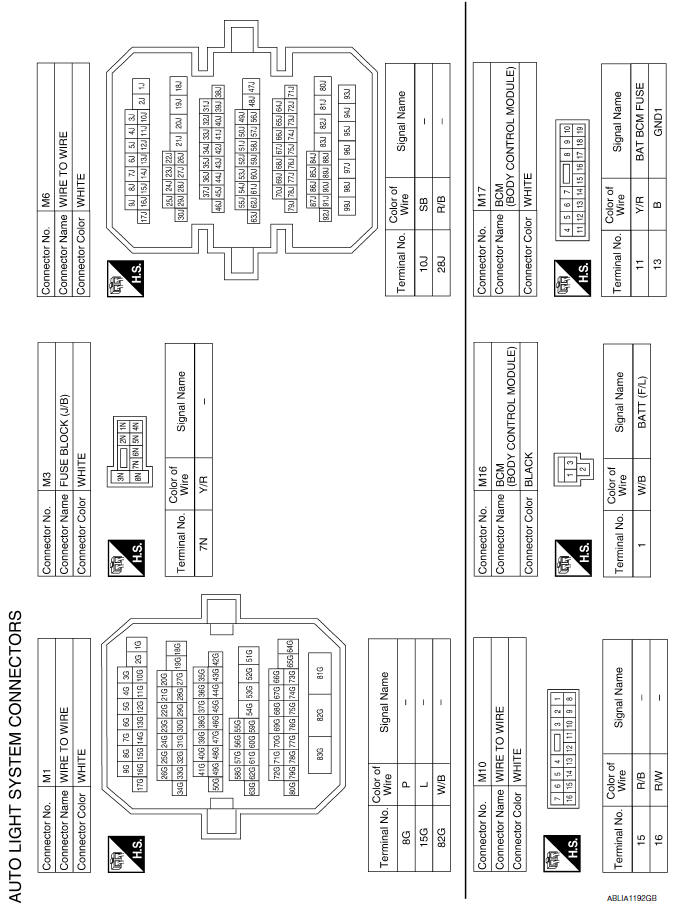

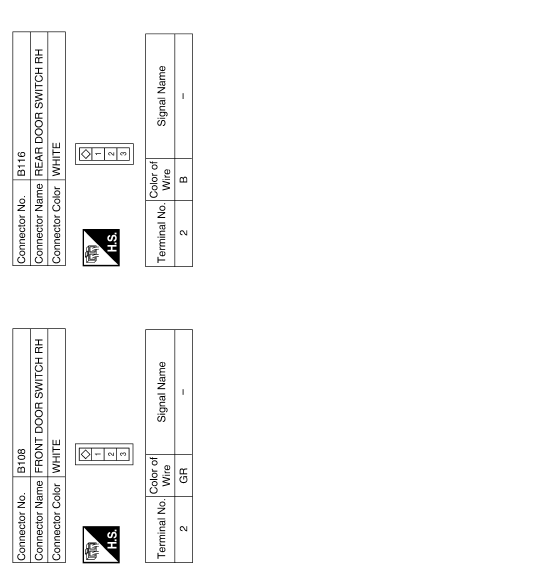

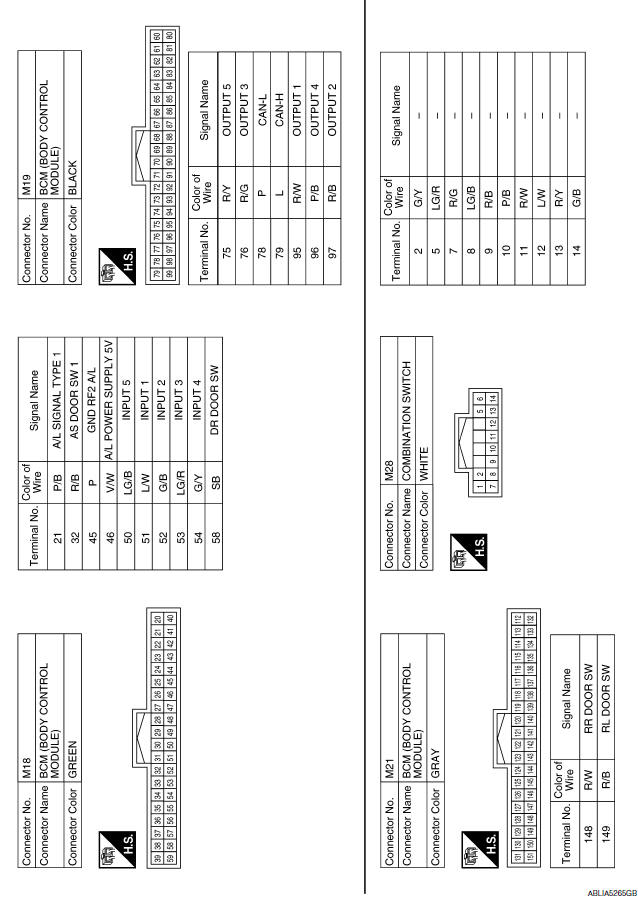

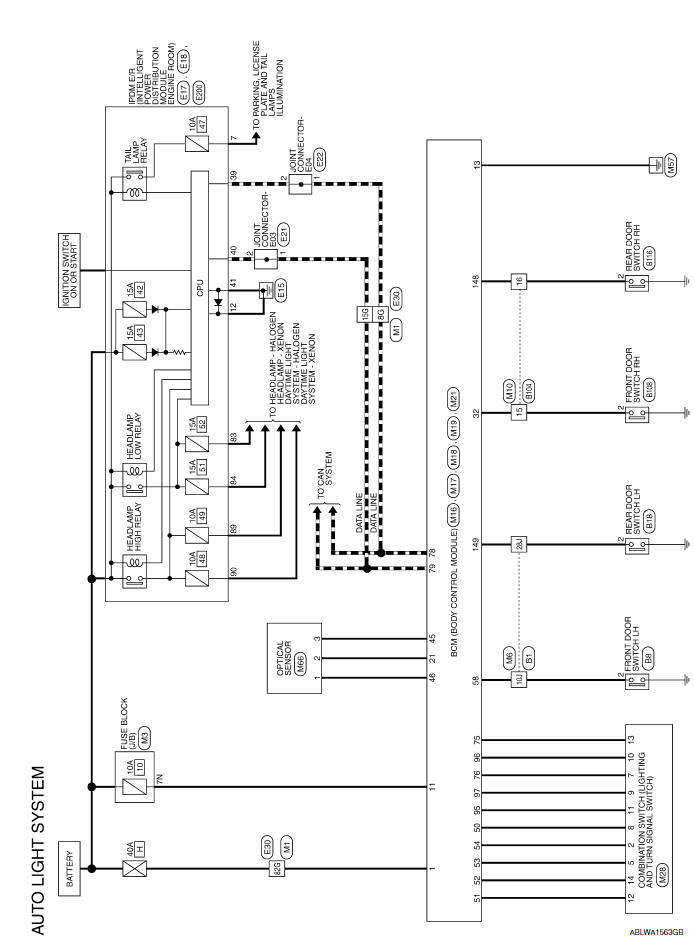

Wiring Diagram

Nissan Maxima. AUTO LIGHT SYSTEM

Nissan Maxima. AUTO LIGHT SYSTEM

Nissan Maxima. AUTO LIGHT SYSTEM

Nissan Maxima. AUTO LIGHT SYSTEM

Nissan Maxima. AUTO LIGHT SYSTEM

Nissan Maxima. AUTO LIGHT SYSTEM

    Daytime running light system
    Wiring Diagram ...

    Front fog lamp system
    Wiring Diagram ...
