Nissan Maxima Service and Repair Manual: Front fog lamp system

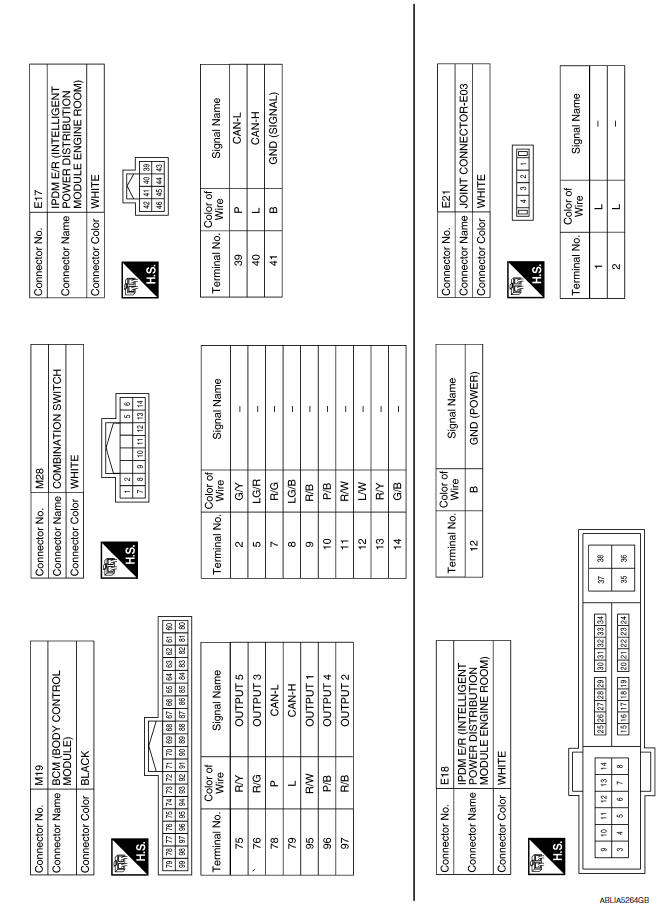

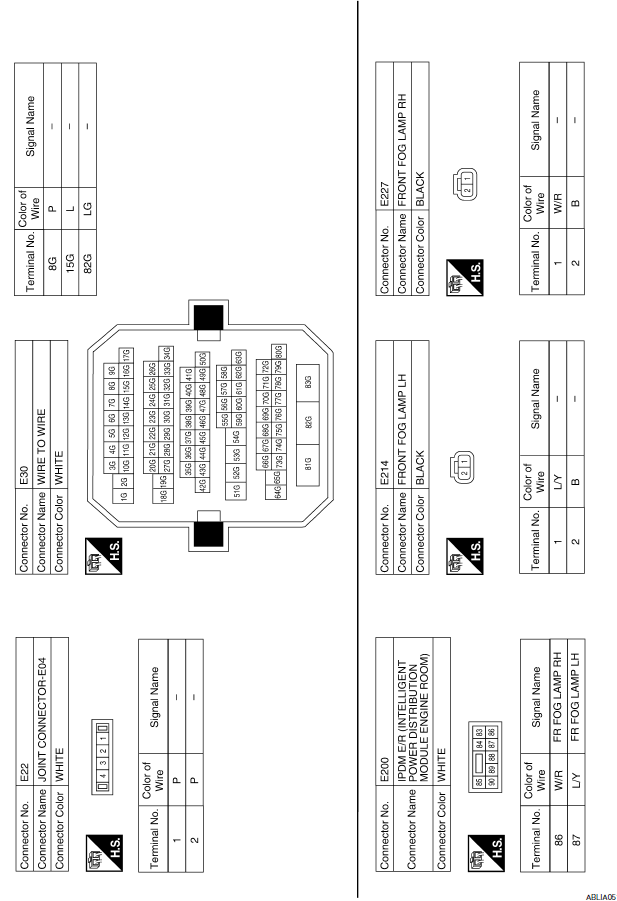

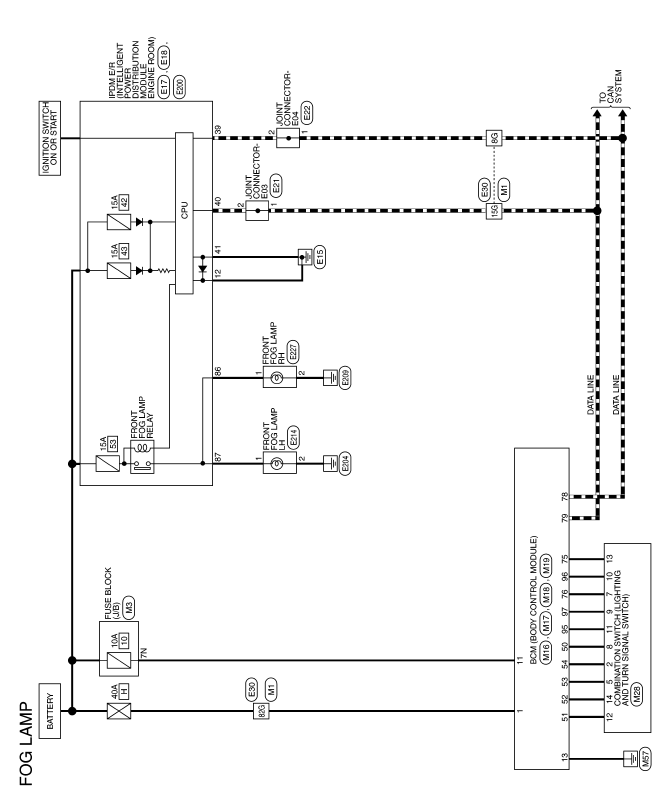

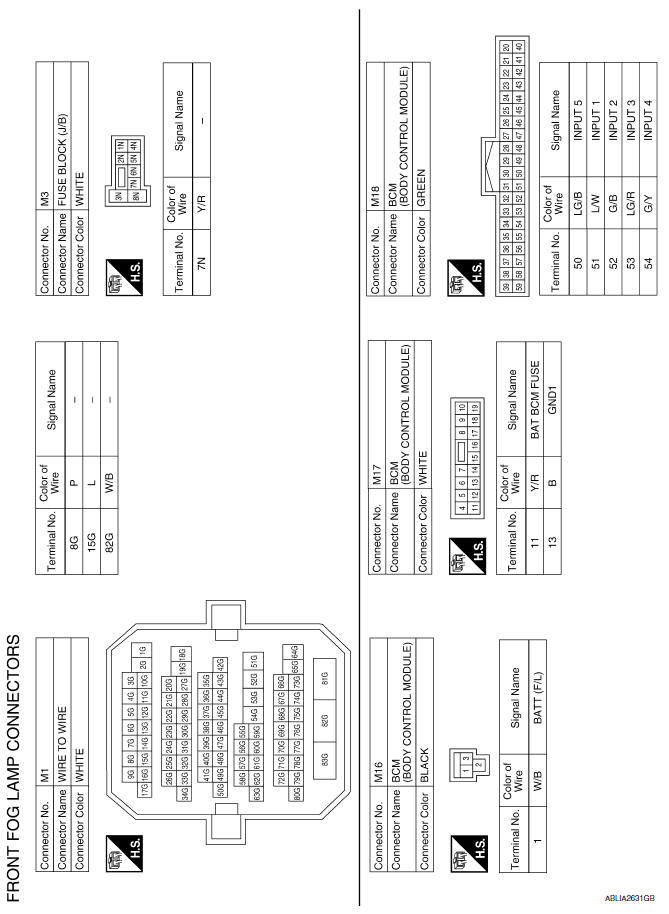

Wiring Diagram

Nissan Maxima. RONT FOG LAMP SYSTEM

Nissan Maxima. RONT FOG LAMP SYSTEM

Nissan Maxima. RONT FOG LAMP SYSTEM

Nissan Maxima. RONT FOG LAMP SYSTEM

    Auto light system
    Wiring Diagram ...

    Turn signal and hazard warning lamp system
    Wiring Diagram ...
