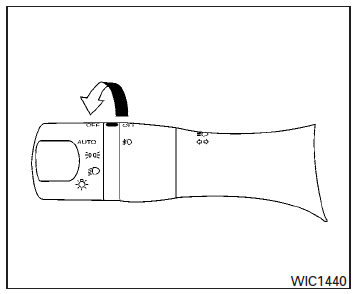

To turn the fog lights on, turn the headlight switch
to the
position, then turn the fog
light
switch to the
position.
To turn the fog lights on with the headlight switch
in the AUTO position, the headlights must be on,
then turn the fog light switch to the
position.
To turn the fog lights off, turn the fog light switch to the OFF position.
The headlights must be on and the low beams selected for the fog lights to operate. The fog lights automatically turn off when the high beam headlights are selected.
Turn signal switch
HornSystem description
EPS SYSTEM
System Diagram
CONTROL DIAGRAM
System Description
The EPS system controls the power steering solenoid valvethrough the
power steering control unit.
The valve driving voltage to control the power steering solenoid
valve varies according to the vehicle speed.
OPERATION ...
IPDM E/R (intelligent power distribution module engine room)
Reference Value
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
PHYSICAL VALUES
Fail Safe
CAN COMMUNICATION CONTROL
When CAN communication with ECM and BCM is impossible, IPDM E/R performs
fail-safe control. After CAN
communication recovers normally, it also re ...
Rain-sensing auto wiper system (if so equipped)
The rain-sensing auto wiper system can automatically
turn on the wipers and adjust the wiper
speed depending on the rainfall and the vehicle
speed by using the rain sensor located on the
upper part of the windshield.
To set the rain-sensing auto wiper system, push
the lever down to the A ...
