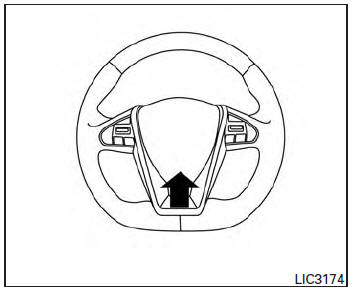

To sound the horn, push near the center pad of the steering wheel.
WARNING
Do not disassemble the horn. Doing so could affect proper operation of the supplemental front air bag system. Tampering with the supplemental front air bag system may result in serious personal injury.
Fog light switch
Climate controlled seat switches (if so equipped)Horizontal synchronizing (HP) signal circuit
Description
In composite image (AUX image, camera image), transmit the vertical
synchronizing (VP) signal and horizontal
synchronizing (HP) signal from display unit to AV control unit so as to
synchronize the RGB images displayed
with AV control unit such as the image quality adjusting menu ...
Front door speaker
Description
The audio unit sends audio signals to the front door speakers using the front
door speaker circuits.
Diagnosis Procedure
1.CONNECTOR CHECK
Check the audio unit and speaker connectors for the following:
Proper connection
Damage
Disconnected or loose terminals
...
Exterior lighting system symptoms
Symptom Table
CAUTION: Perform the self-diagnosis with CONSULT
before the symptom diagnosis. Perform the trouble diagnosis if any DTC is
detected.
...
