Nissan Maxima Service and Repair Manual: Headlamp

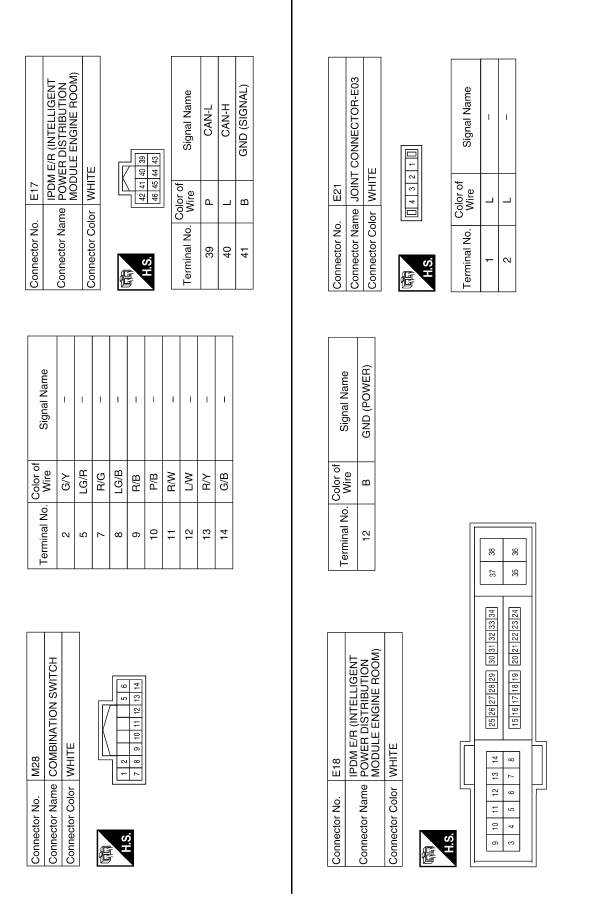

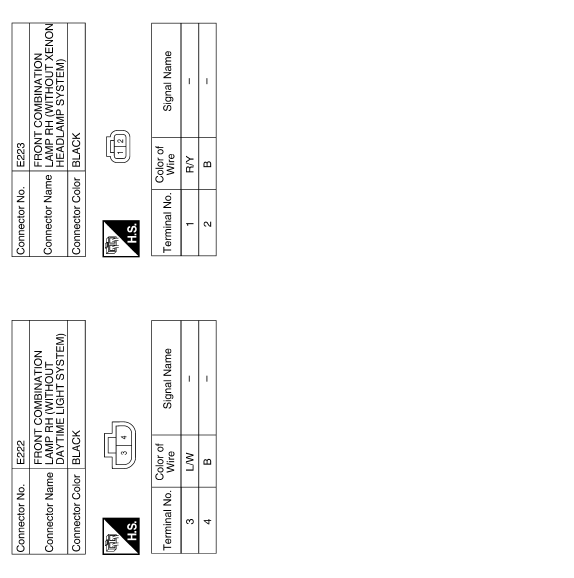

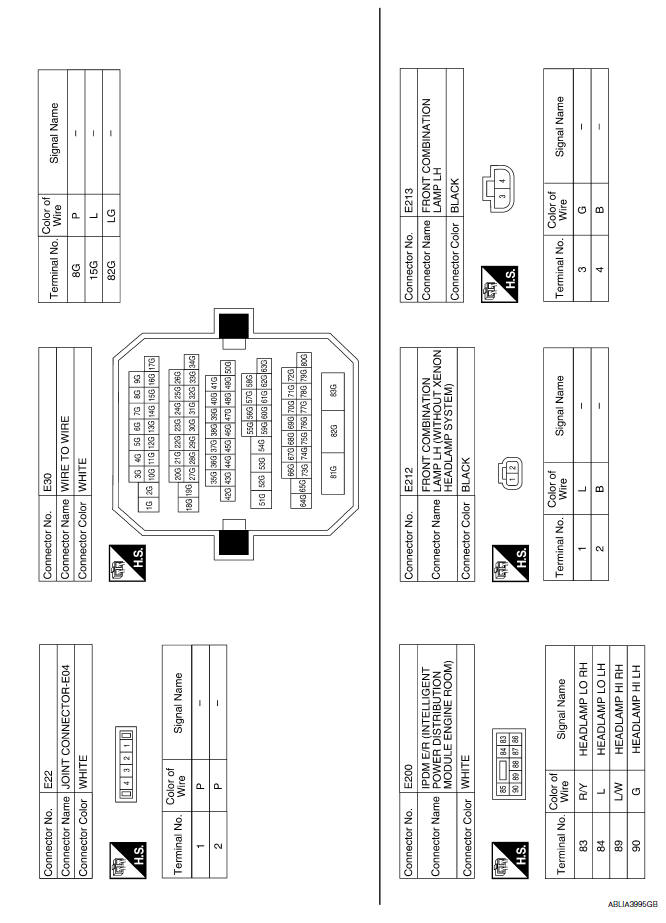

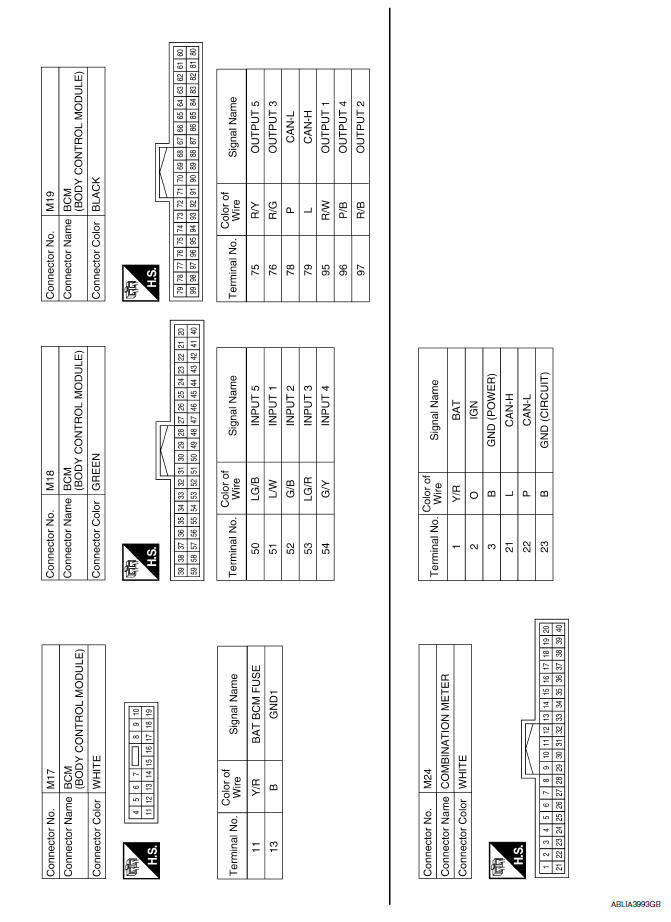

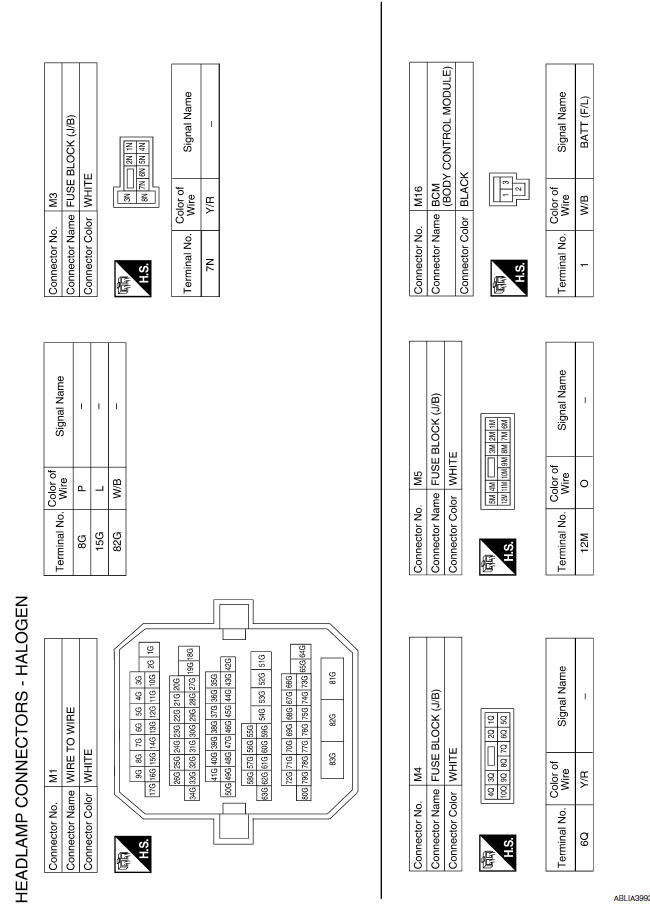

Wiring diagram

Daytime running light system

Other materials:

Combination switch input circuit
Diagnosis Procedure 1. CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR OPEN Turn the ignition switch OFF. Disconnect the BCM and combination switch. Check continuity between BCM harness connector and combination switch harness connector. 2. CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR SHORT ...

ECU diagnosis information
BCM (BODY CONTROL MODULE) Reference Value NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information. Activate and display TPMS transmitter IDs Display tire pressure reported by the TPMS tran ...

Communication signal circuit
SATELLITE RADIO TUNER SATELLITE RADIO TUNER : Description Communication signals are exchanged between the AV control unit and satellite radio tuner using the communication circuits. SATELLITE RADIO TUNER : Diagnosis Procedure 1.CHECK HARNESS - 1 Turn ignition switch OFF. Disconnect sat ...
