Nissan Maxima Service and Repair Manual: Stop lamp

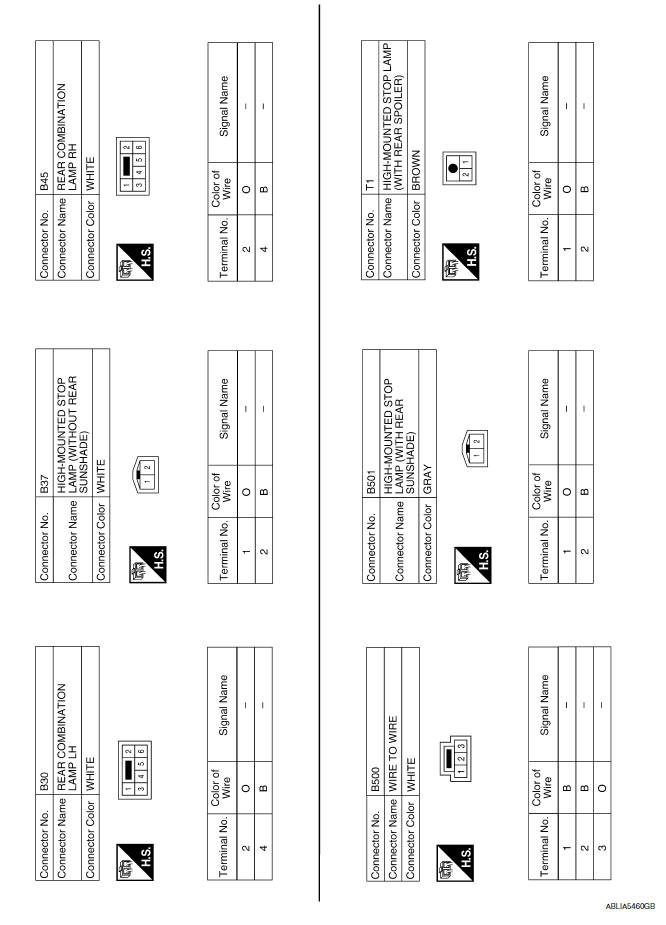

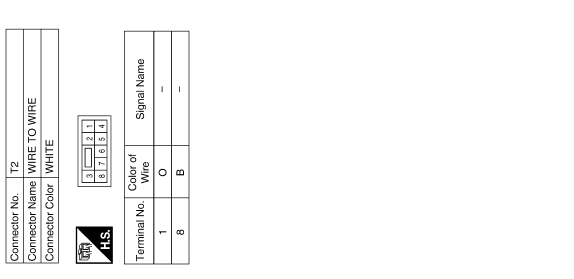

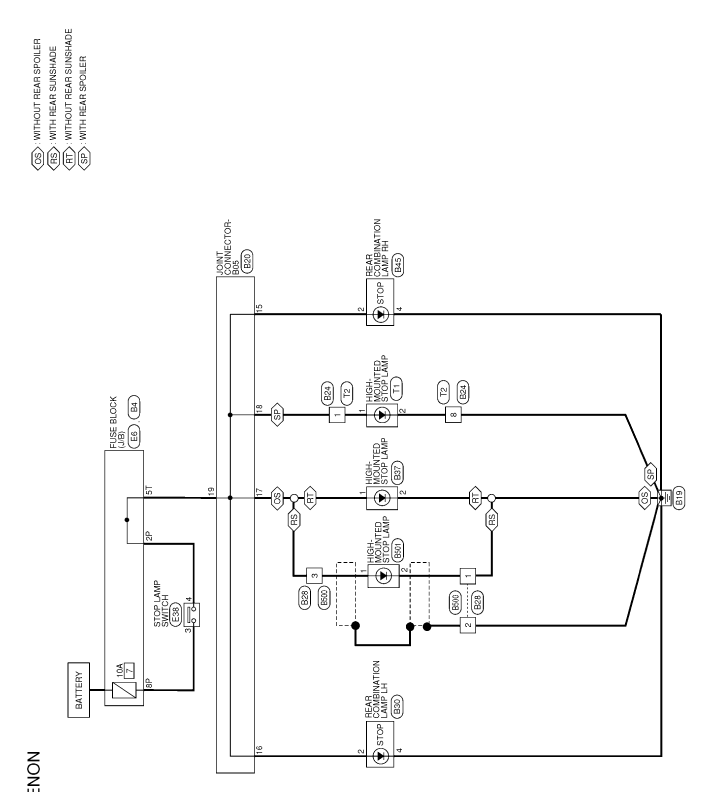

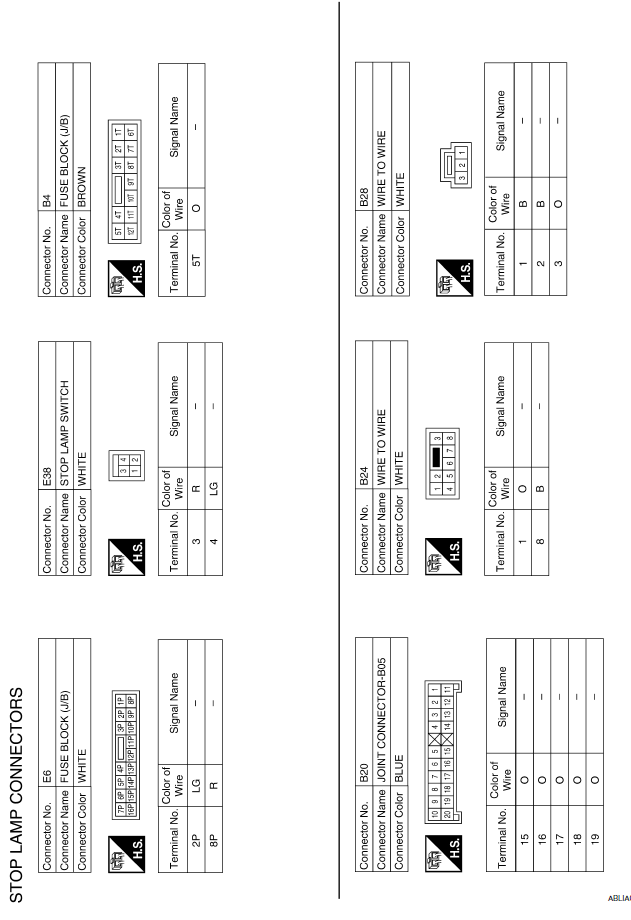

Wiring Diagram
Parking, license plate and tail lamps system
Wiring Diagram
...
Back-up lamp
Wiring Diagram
...
Other materials:
DTC B2205 vehicle speed circuit
Description
The ABS actuator and electric unit (control unit) provides a vehicle speed
signal to the combination meter via
CAN communication lines.
DTC Logic
Diagnosis Procedure
Symptom: Displays "VEHICLE SPEED CIRC [B2205]" as a self-diagnosis result of
combination meter.
1.CHECK COMBI ...
ABS branch line circuit
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the ABS actuator and
electric unit (control unit) for damage, bend
and loose connection (unit side and connector side).
...
Door mirror remote control switch
CHANGEOVER SWITCH
CHANGEOVER SWITCH : Description
Changeover switch is integrated into door mirror remote control switch.
Changeover switch has three positions (L, N and R).
It changes door mirror
motor operation by transmitting control signal to automatic drive positioner
control unit.
C ...
