Nissan Maxima Service and Repair Manual: License plate lamp

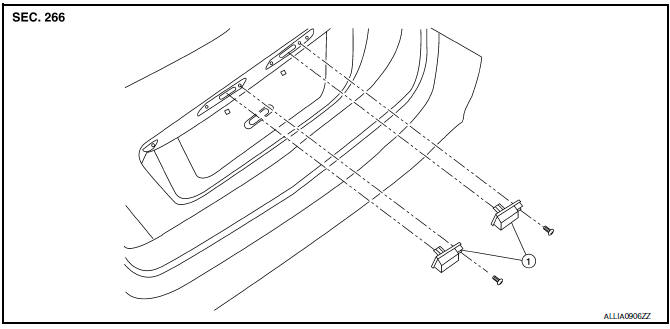

Exploded View
- License plate lamp
Removal and Installation
LICENSE PLATE LAMP
Removal'
- Remove the license lamp finisher. Refer to EXT-31, "Removal and Installation".
- Position trunk lid finisher aside. Refer to INT-36, "Exploded View".
- Remove the license plate lamp screw and remove the license plate lamp.
Installation
Installation is in the reverse order of removal.
LICENSE PLATE LAMP BULB
Removal
WARNING: Do not touch bulb with your hand while it is on or right after being turned off, a burn injury may result.
CAUTION:
- Do not touch bulb glass with your hand or keep other grease and oily substances away from bulb glass.
- Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.
- Position trunk lid finisher aside. Refer to INT-36, "Exploded View".
- Turn the license plate lamp bulb socket counterclockwise and unlock it.
- Remove the bulb from the license plate lamp bulb socket.
Installation
Installation is in the reverse order of removal
