Nissan Maxima Service and Repair Manual: High-mounted stop lamp

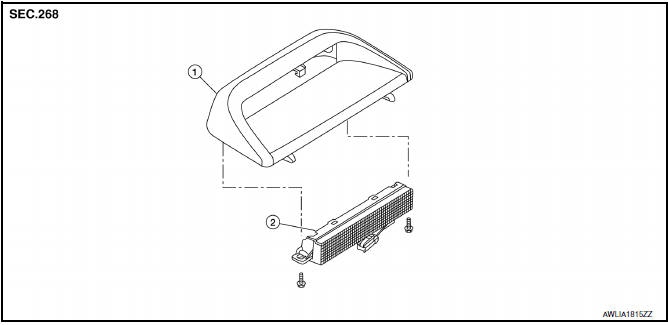

Exploded View
- High-mounted stop lamp cover
- High-mounted stop lamp bulb
Removal and Installation
REMOVAL
- Slide the high-mounted stop lamp rearward on the parcel shelf to give clearance to the front locking tabs.
- Lift the front of the high-mounted stop lamp up and slide it forward to give clearance to the rear locking tabs.
- Disconnect the harness connector from the high-mounted stop lamp and remove.
INSTALLATION
Installation is in the reverse order of removal.
Rear combination lamp
Exploded View
Slide clip
Grommets
Rear combination lamp
Removal and Installation
REAR COMBINATION LAMP
Removal
Remove the trunk side finisher. Refer to INT-36, "Exploded View".
...
License plate lamp
Exploded View
License plate lamp
Removal and Installation
LICENSE PLATE LAMP
Removal'
Remove the license lamp finisher. Refer to EXT-31, "Removal and
Installation".
