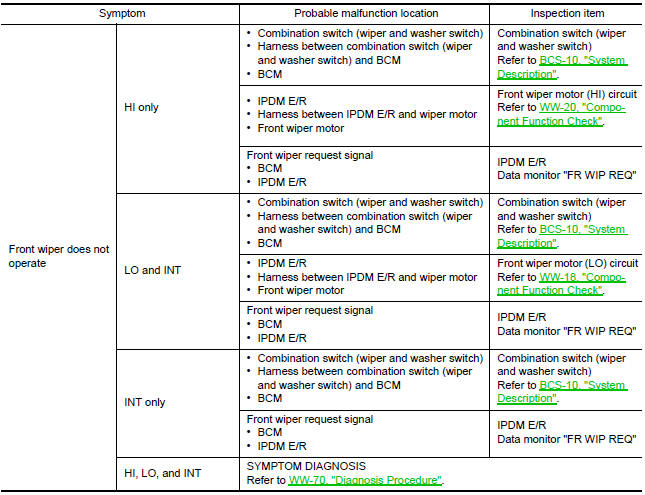

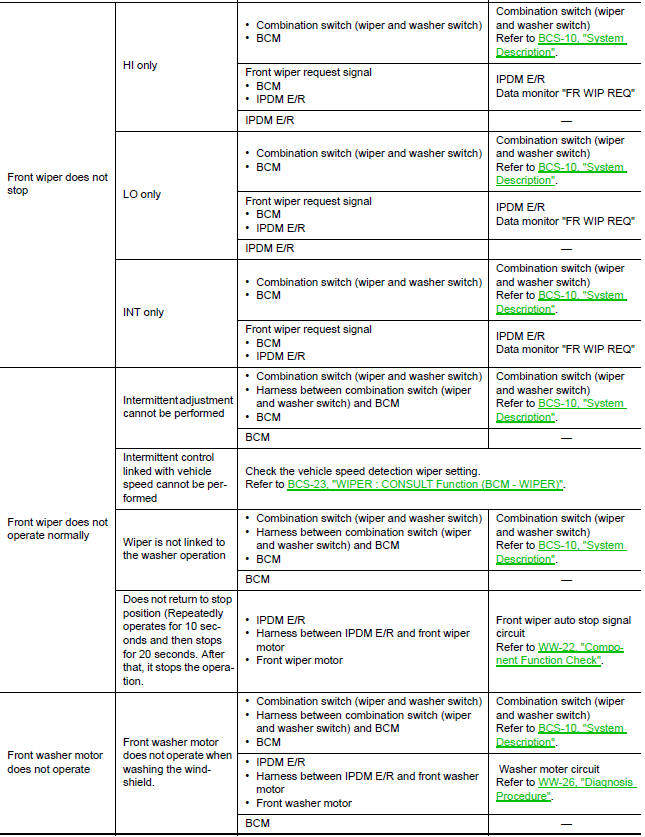

Symptom Table
CAUTION:
Perform the self-diagnosis with CONSULT
before performing the diagnosis by symptom. Perform the
diagnosis by DTC if
DTC is detected.


Front wiper does not operateIPDM E/R (intelligent power distribution module engine room)
