Nissan Maxima Service and Repair Manual: Wiring diagram

REAR WINDOW DEFOGGER

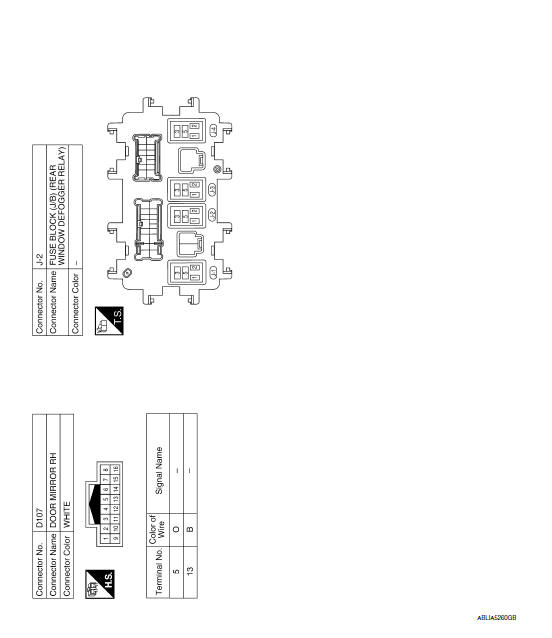

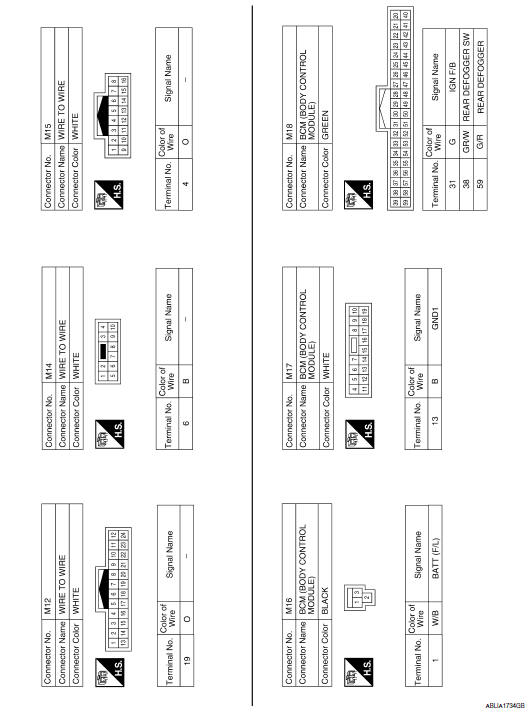

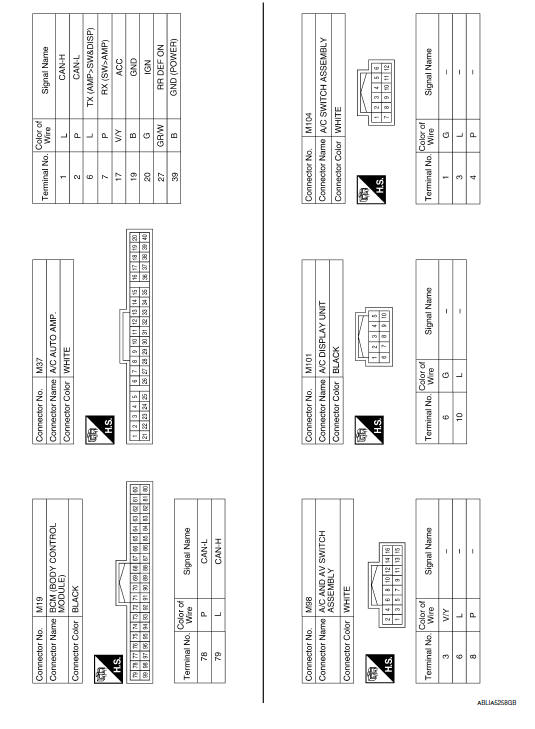

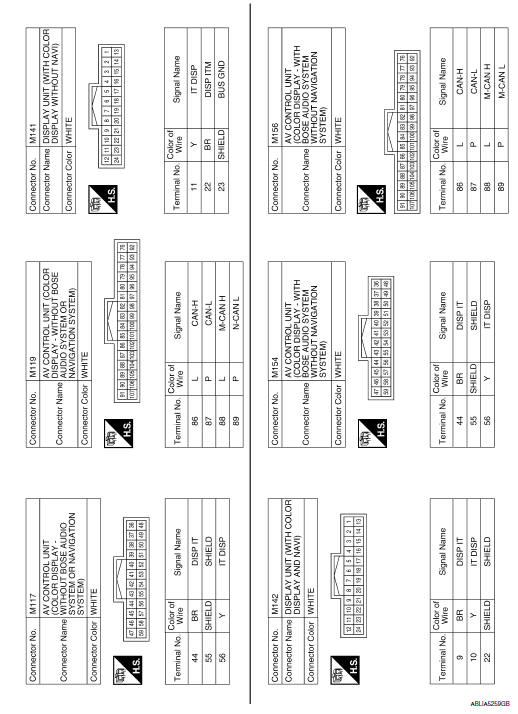

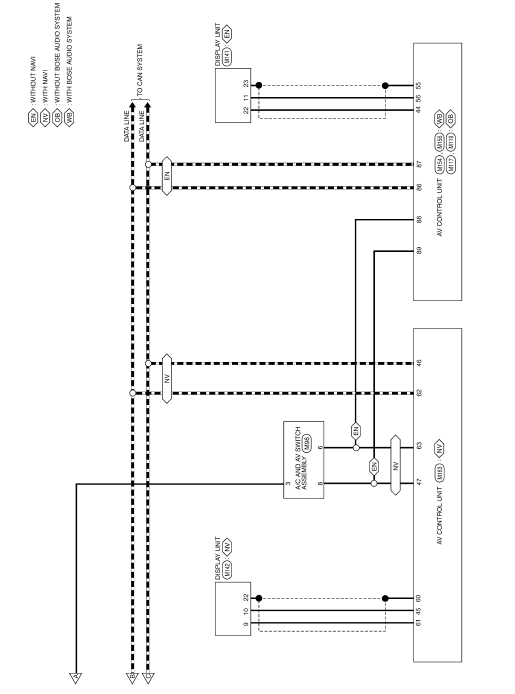

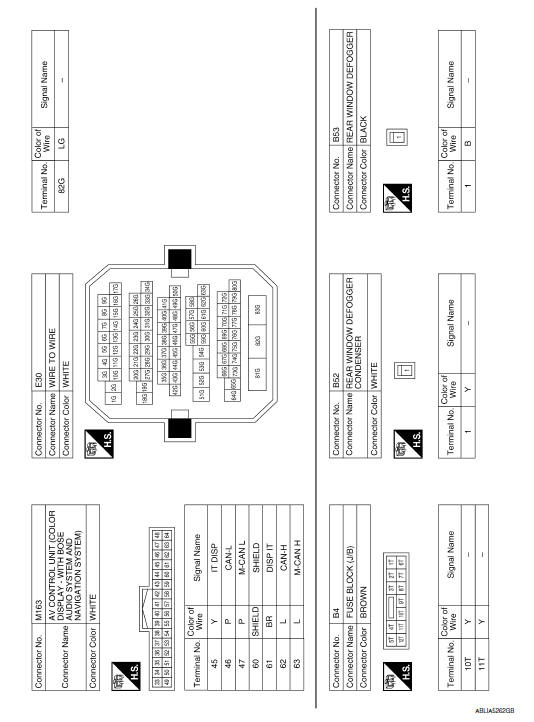

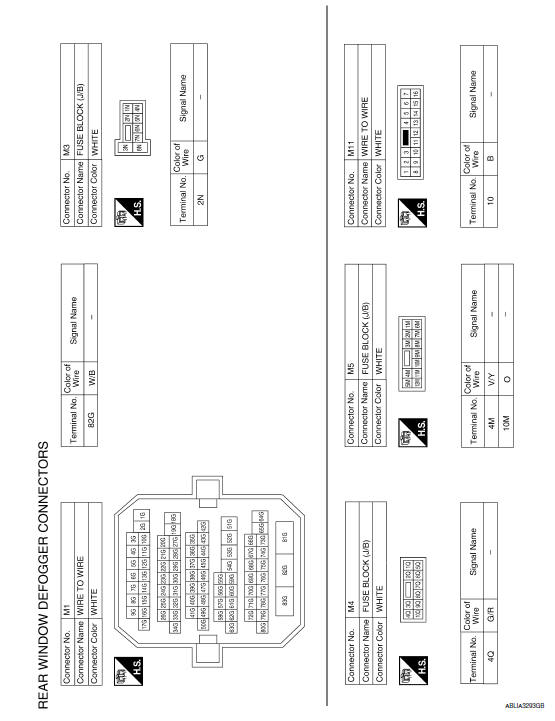

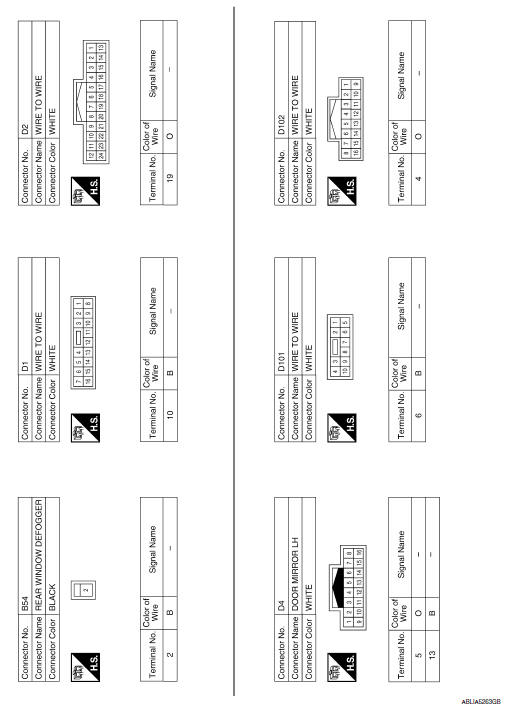

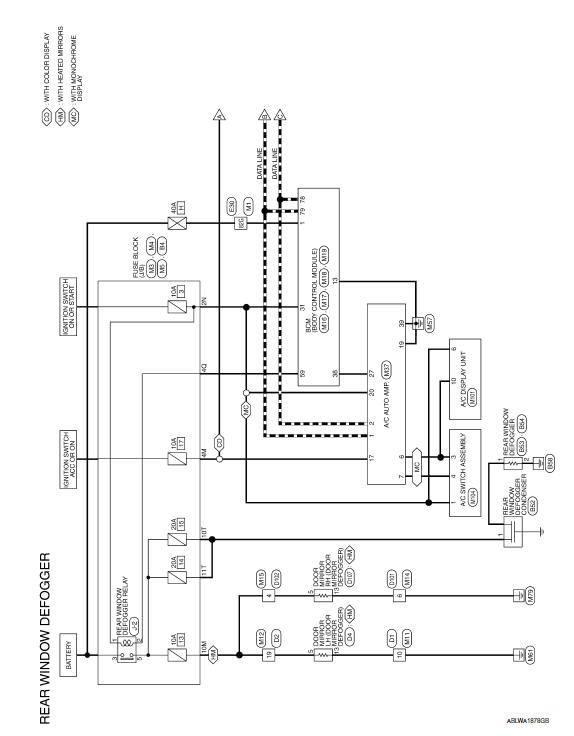

Wiring Diagram

Nissan Maxima. REAR WINDOW DEFOGGER

Nissan Maxima. REAR WINDOW DEFOGGER

Nissan Maxima. REAR WINDOW DEFOGGER

Nissan Maxima. REAR WINDOW DEFOGGER

Nissan Maxima. REAR WINDOW DEFOGGER

Nissan Maxima. REAR WINDOW DEFOGGER

Nissan Maxima. REAR WINDOW DEFOGGER

Nissan Maxima. REAR WINDOW DEFOGGER

Nissan Maxima. REAR WINDOW DEFOGGER

    ECU diagnosis information
    BCM (BODY CONTROL MODULE) Reference Value NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional informat ...

    Symptom diagnosis
    ...
