Diagnosis Procedure
1. CHECK REAR WINDOW DEFOGGER SWITCH
Check rear window defogger switch.
2. CHECK REAR WINDOW DEFOGGER RELAY
Check rear window defogger relay
3. CHECK FUSES
Check if any of the following fuses in fuse block (J/B) are blown.
4. CHECK REAR WINDOW DEFOGGER POWER SUPPLY CIRCUIT

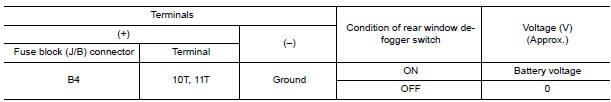

5. CHECK REAR WINDOW DEFOGGER POWER SUPPLY AND GROUND CIRCUIT
Check rear window defogger power supply and ground circuit
6. CHECK DOOR MIRROR DEFOGGER
Check door mirror defogger.
How to use the vehicle information display
The vehicle information display can be changed
using the
and
buttons located
on the steering wheel.
SOURCE - Pressing SOURCE with the ignition
ON will display a list of available audio
sources in the vehicle information display.
The audio sources can then be selected wit ...
Diagnosis system (HVAC)
CONSULT Function
CONSULT can display each diagnosis item using the diagnosis test modes as
shown.
CONSULT application items
SELF-DIAGNOSTIC RESULT
Display Item List
*: Perform self-diagnosis under sunshine. When performing indoors, aim a
light (more than 60 W) at sunload sensor, ...
IPDM-E branch line circuit
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the IPDM E/R for damage,
bend and loose connection (unit side
and connector side).
2.CHECK HARNESS FOR OPEN CIRCUIT
...
