Nissan Maxima Service and Repair Manual: Ignition Coil

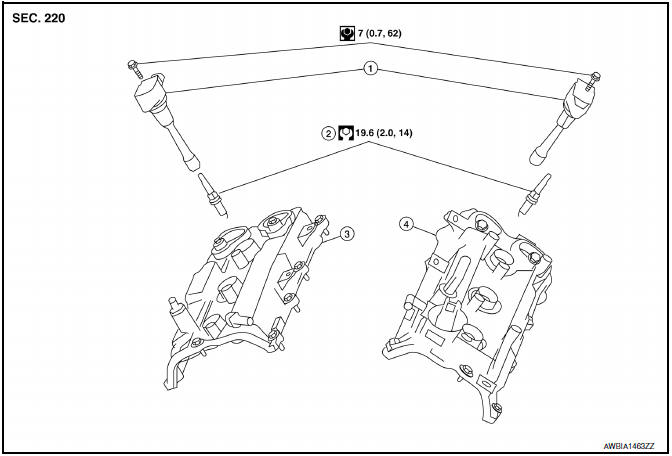

Exploded View

Nissan Maxima. Exploded View

  1. Ignition coil
  2. Spark plug
  3. Rocker cover (RH)
  4. Rocker cover (LH)

Removal and Installation (LH)

REMOVAL

  1. Remove engine room cover. Refer to EM-23, "Removal and Installation".
  2. Disconnect ignition coil harness connector.
  3. Remove the ignition coil.

CAUTION: Do not shock ignition coil.

INSTALLATION Installation is in the reverse order of removal.

Removal and Installation (RH)

REMOVAL

  1. Remove the intake manifold collector. Refer to EM-25, "Removal and Installation".
  2. Disconnect ignition coil harness connector.
  3. Remove the ignition coil.

CAUTION: Do not shock ignition coil.

INSTALLATION Installation is in the reverse order of removal.
