Nissan Maxima Service and Repair Manual: AV control unit

Reference Value

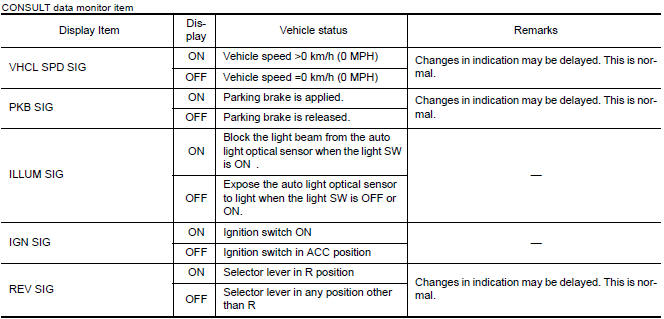

VALUES ON THE DIAGNOSIS TOOL

Nissan Maxima. VALUES ON THE DIAGNOSIS TOOL

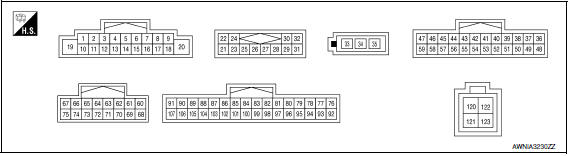

TERMINAL LAYOUT

Nissan Maxima. TERMINAL LAYOUT

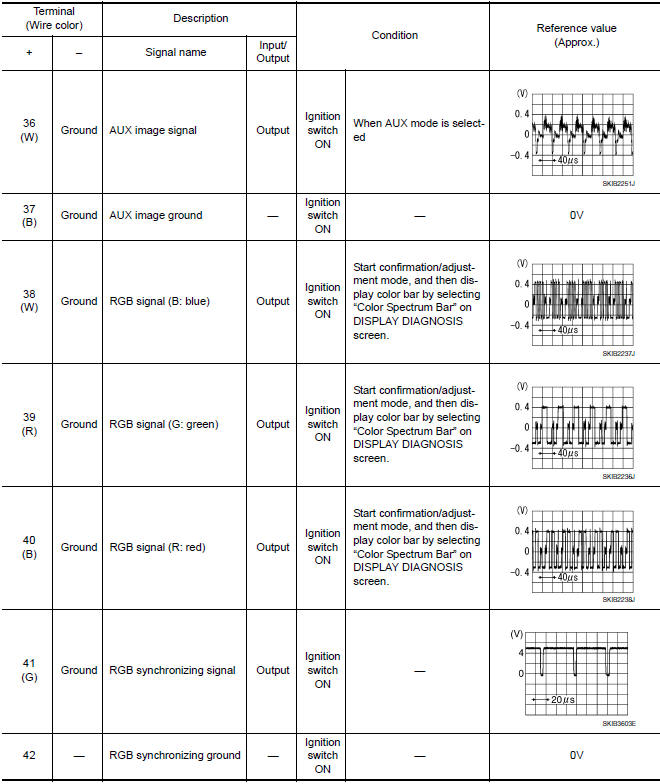

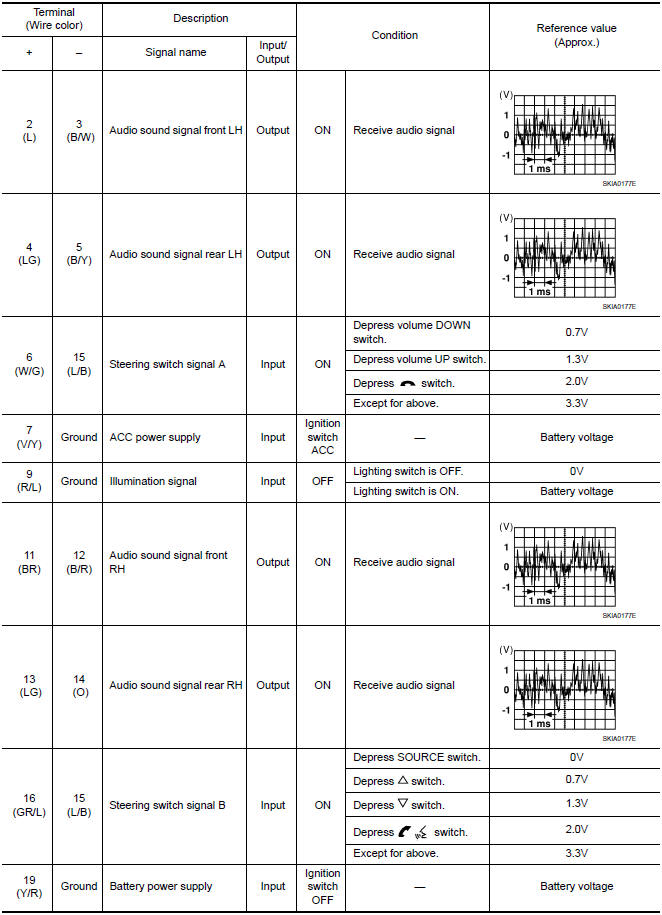

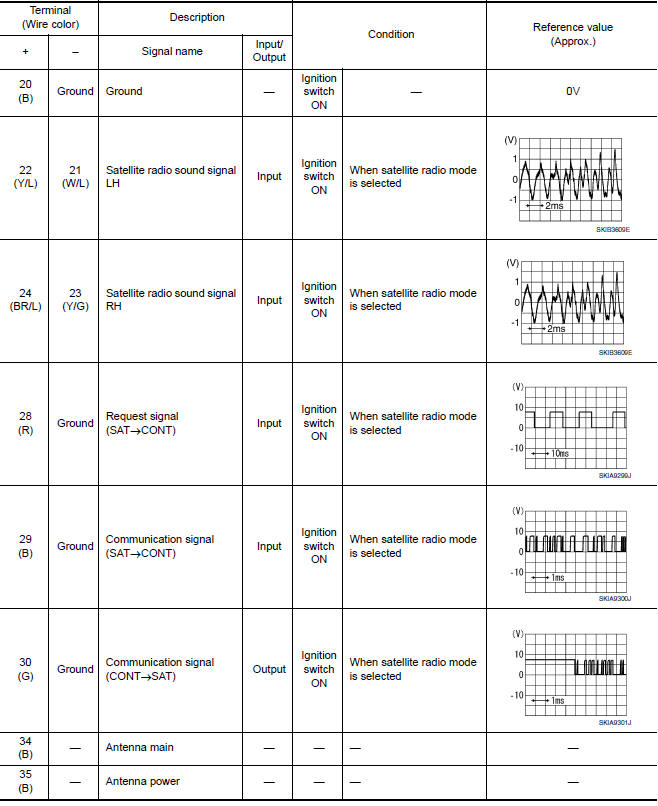

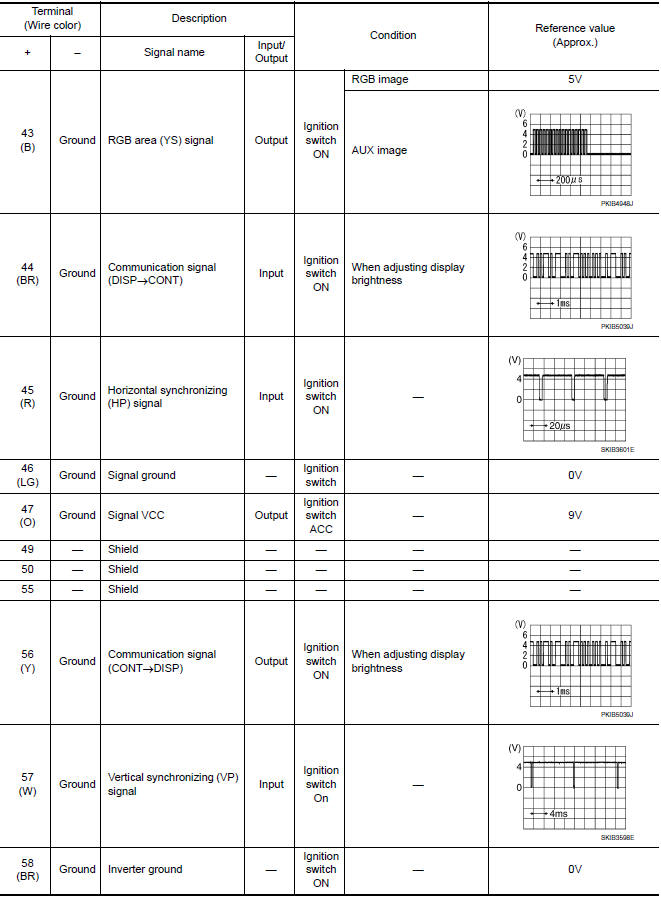

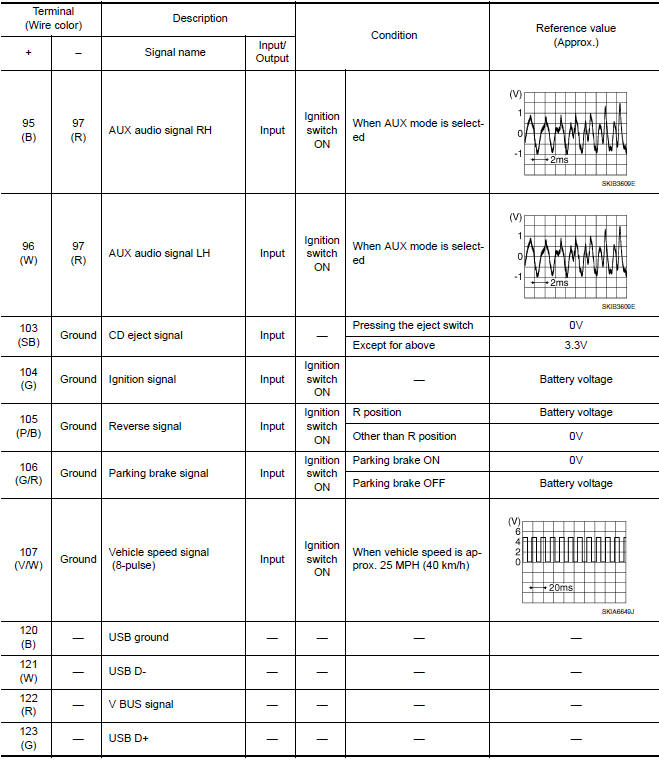

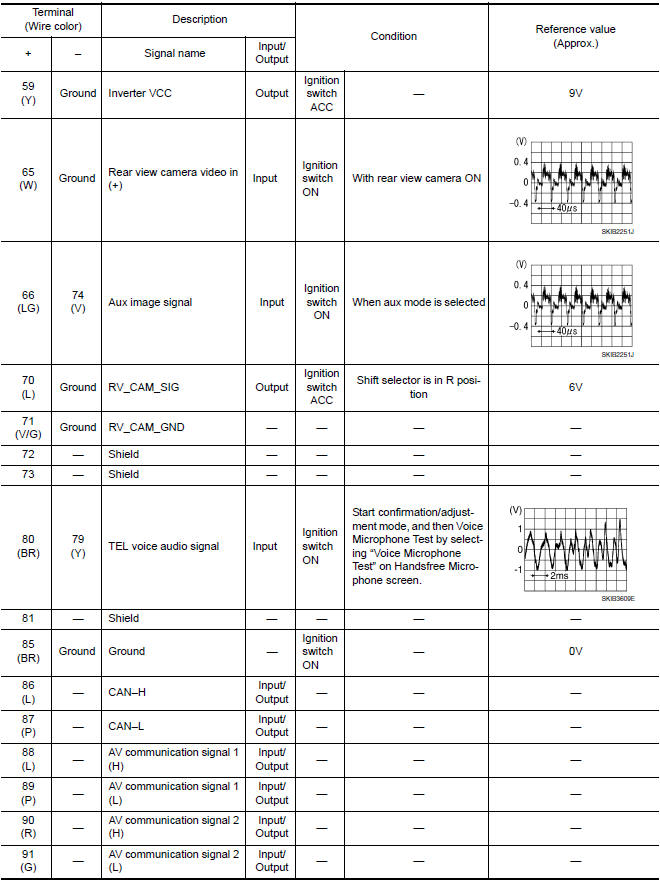

PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

Nissan Maxima. PHYSICAL VALUES

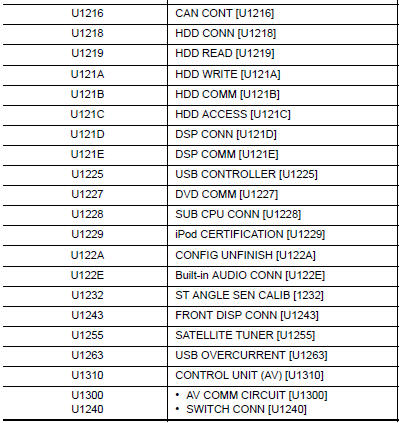

DTC Index

Self-diagnosis results display item

Nissan Maxima. DTC Index

Nissan Maxima. DTC Index

    ECU diagnosis information
    ...

    Display unit
