Nissan Maxima Service and Repair Manual: Wiring diagram

SRS AIR BAG CONTROL SYSTEM

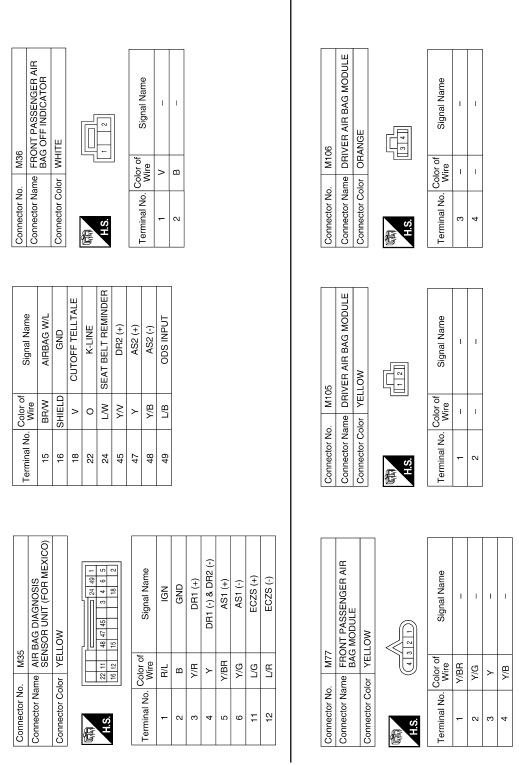

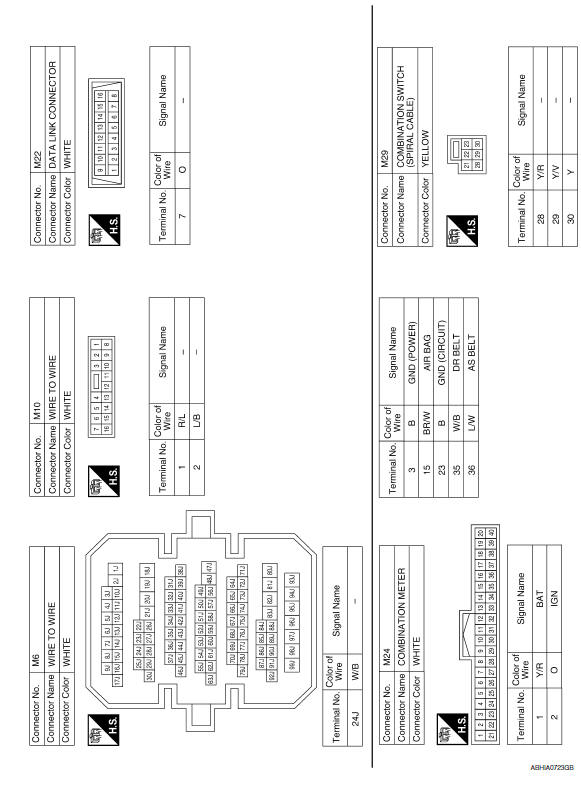

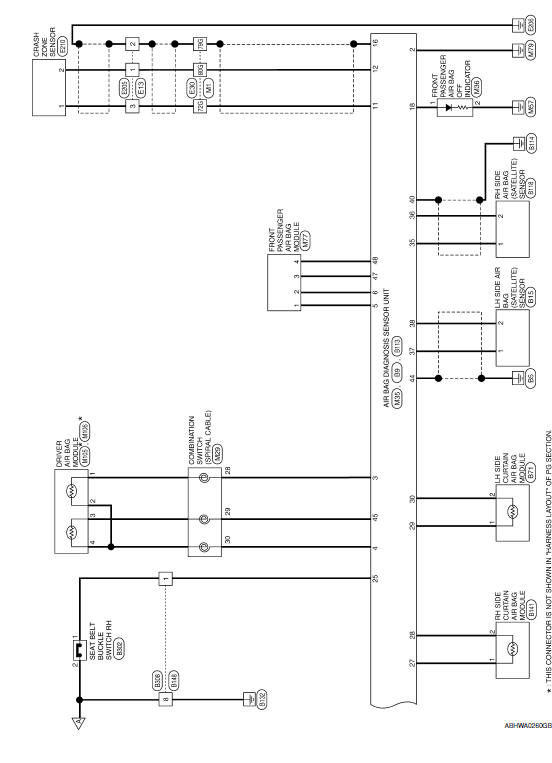

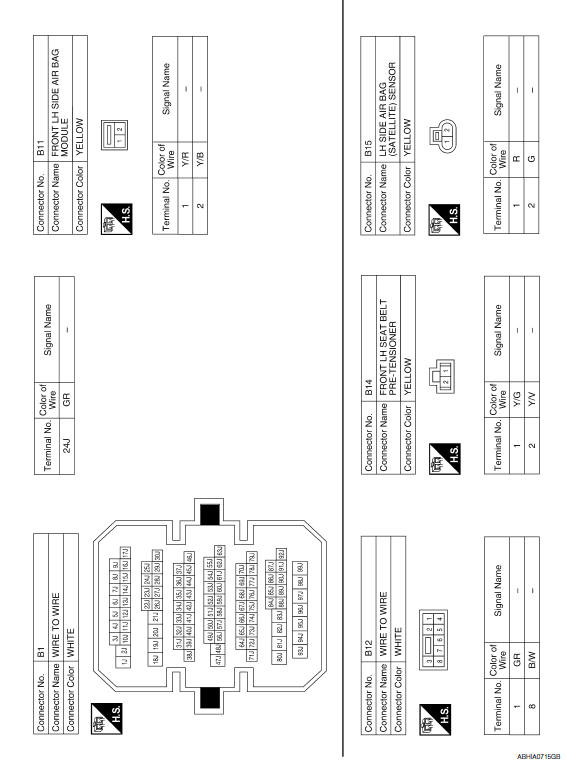

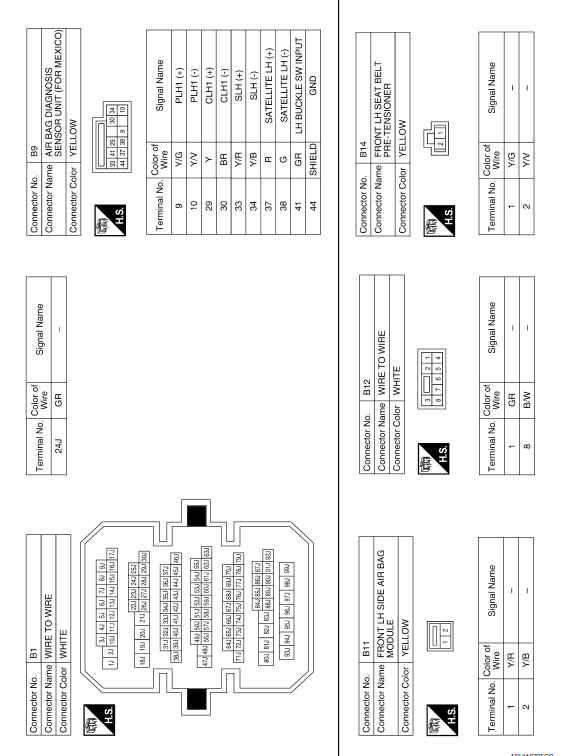

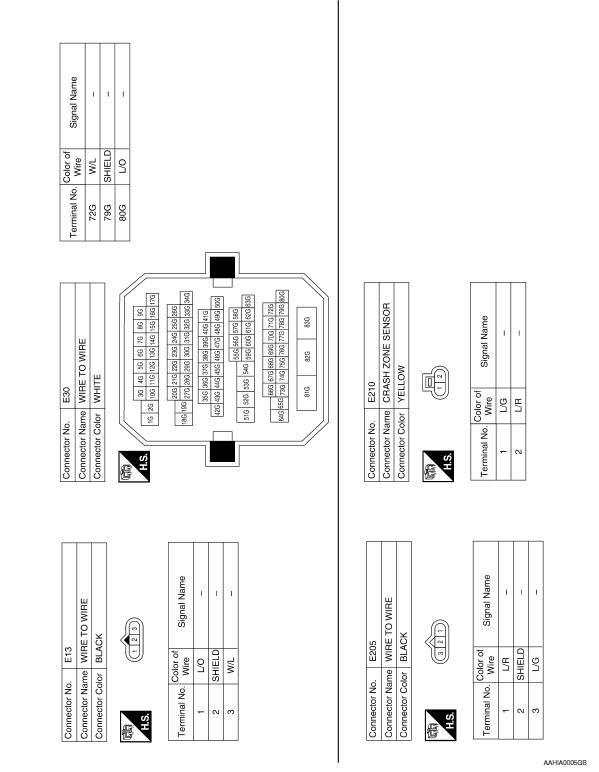

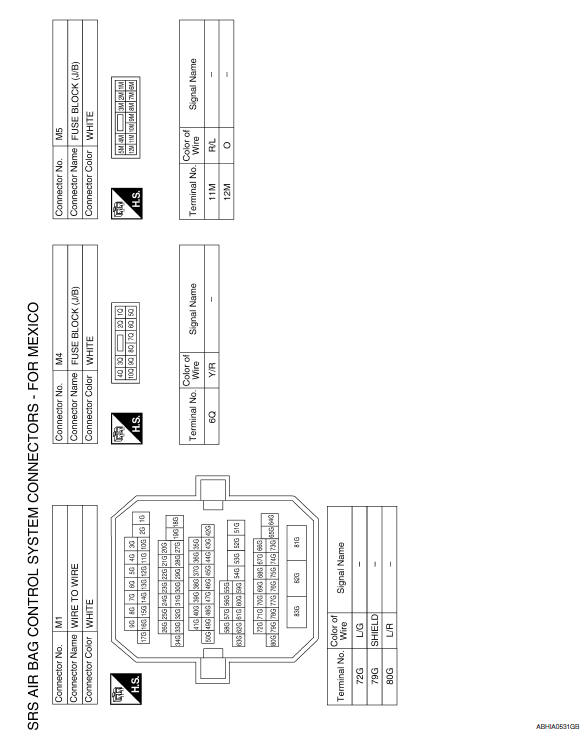

Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

Nissan Maxima. Wiring Diagram - For Mexico

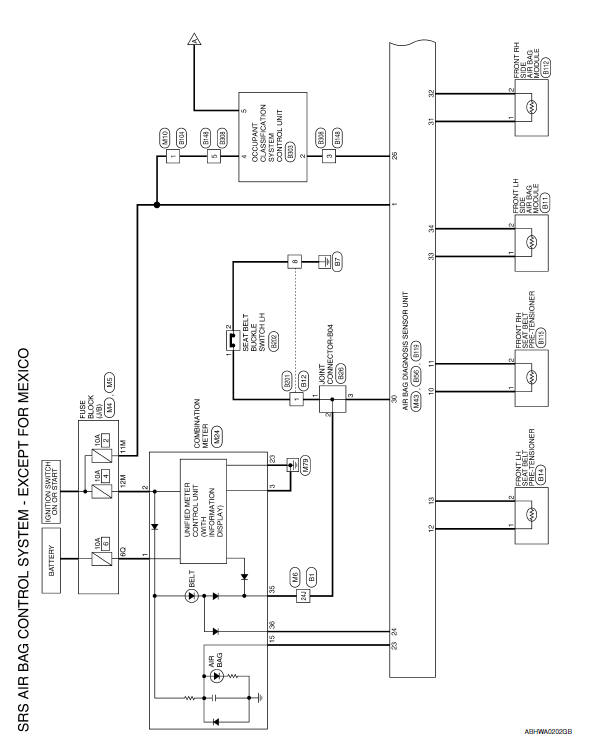

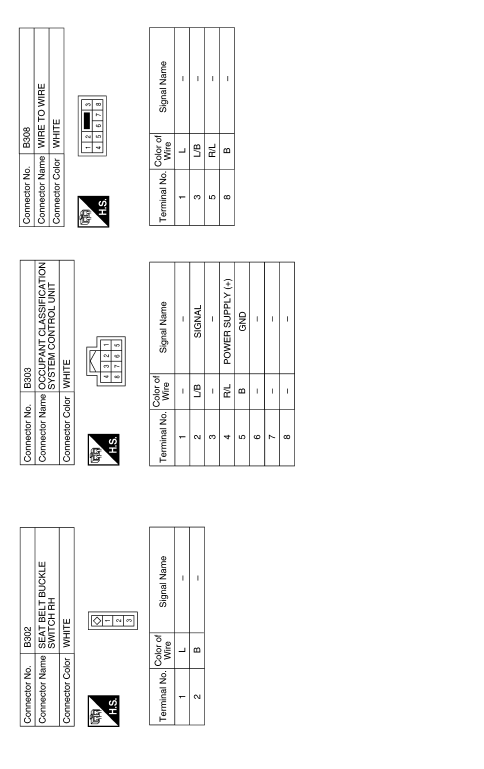

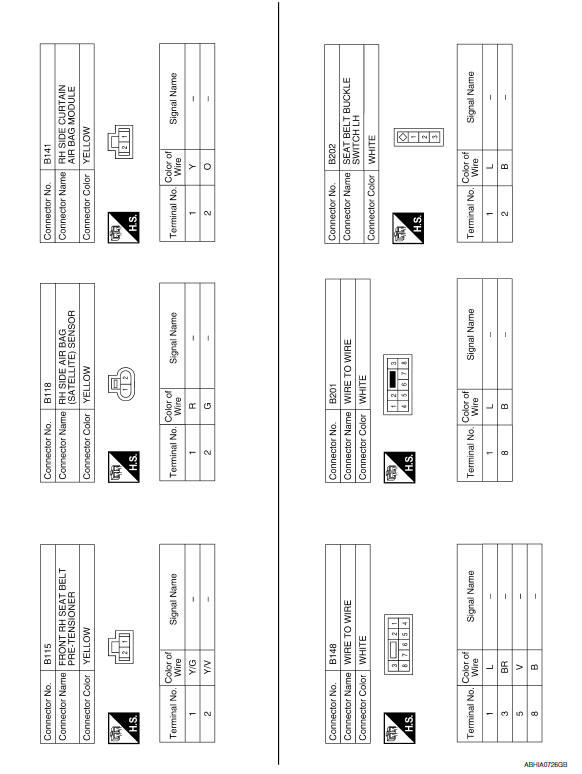

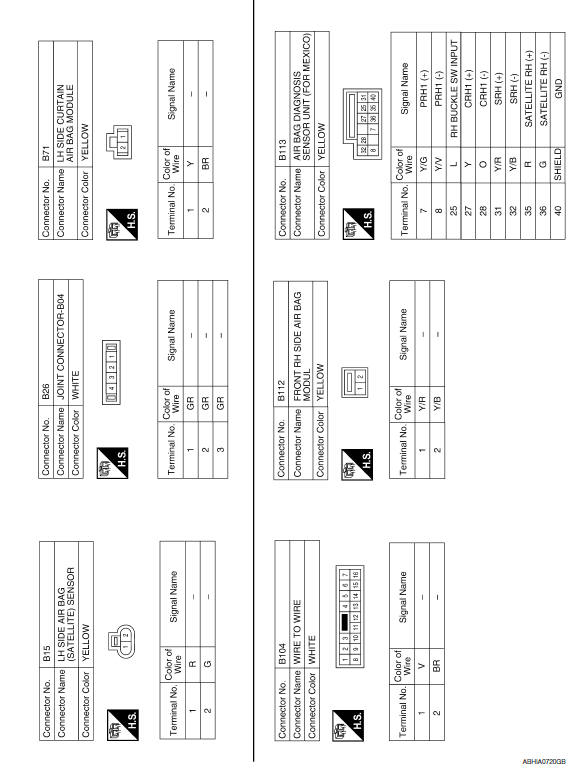

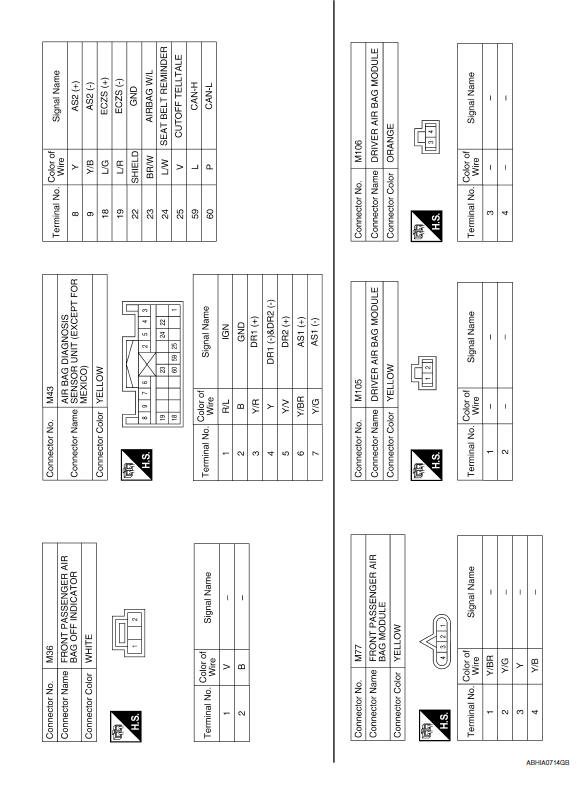

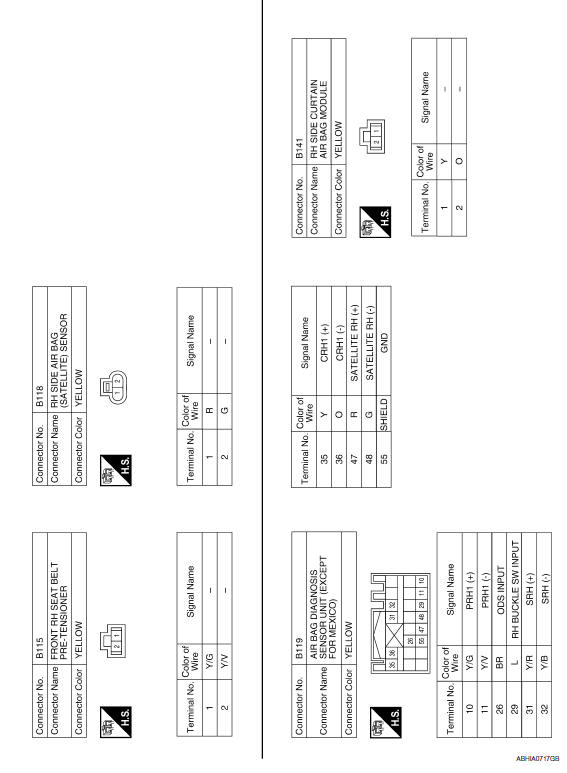

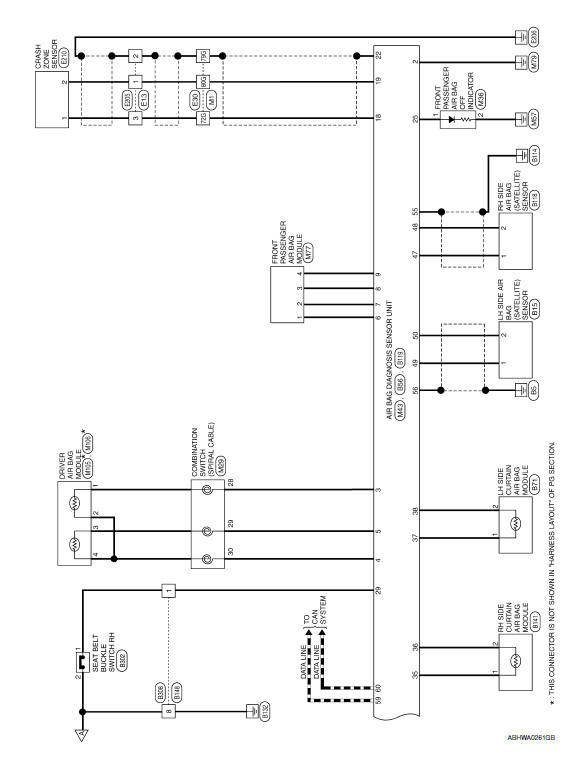

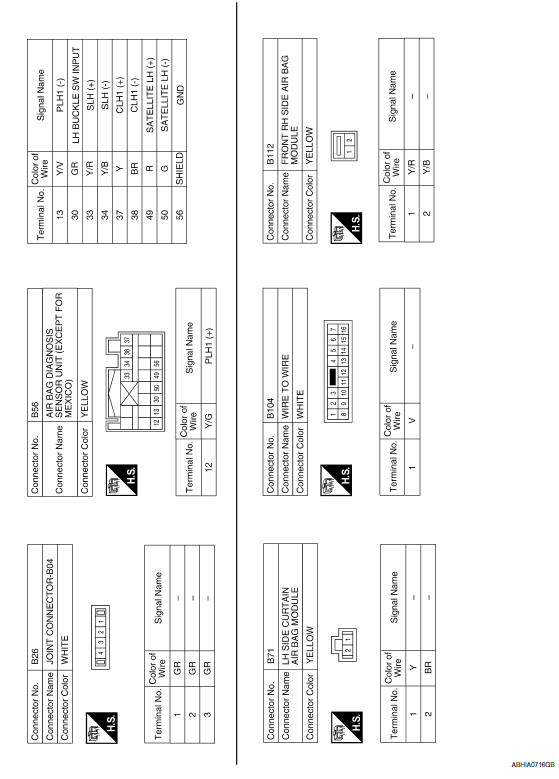

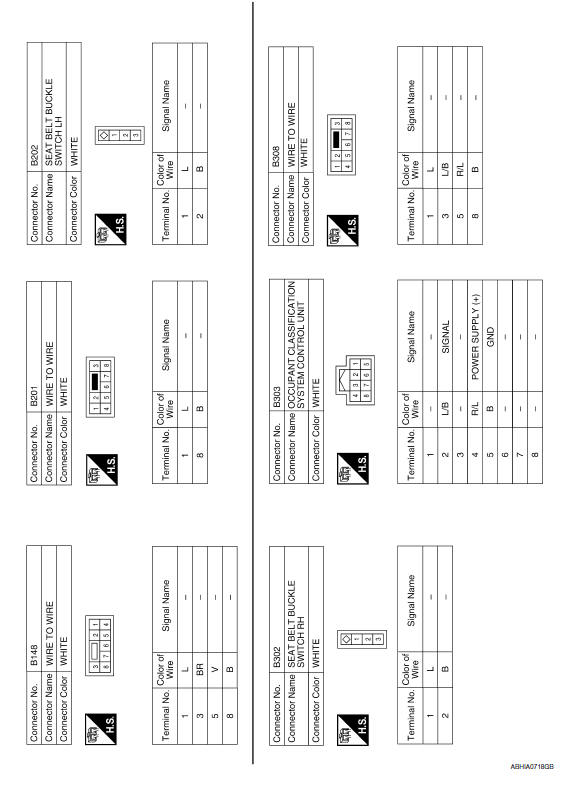

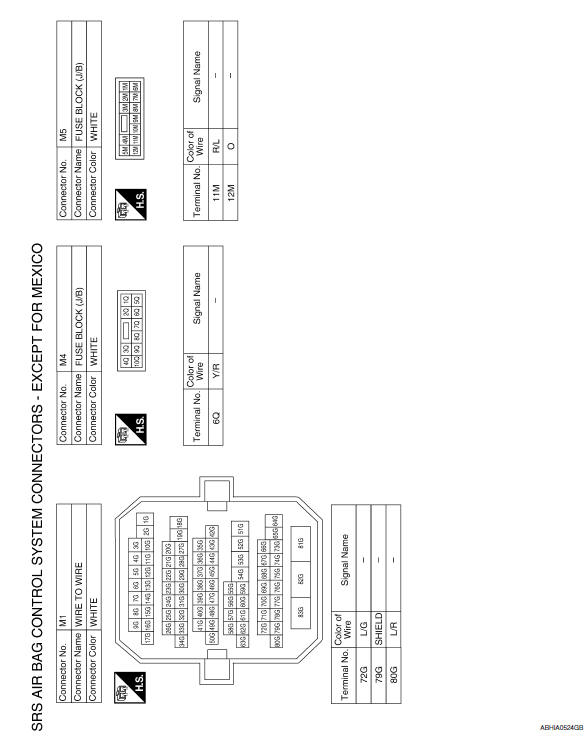

Wiring Diagram - Except Mexico

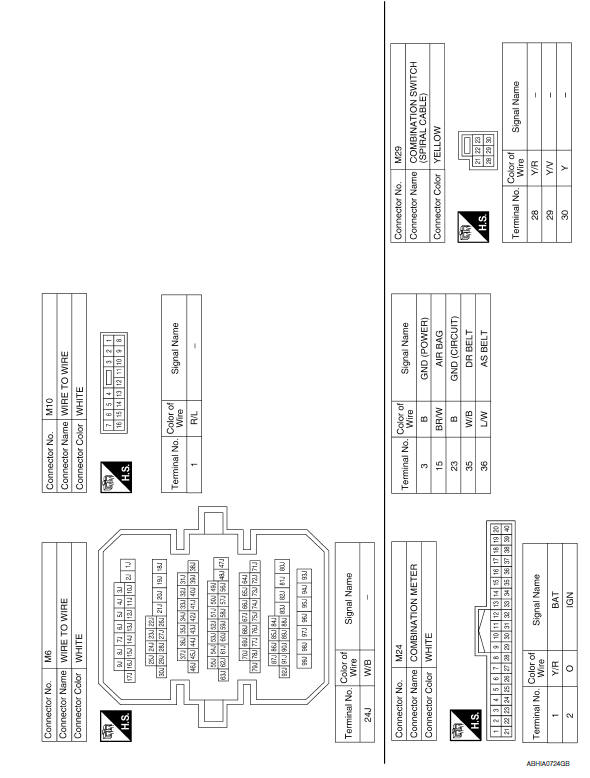

Nissan Maxima. Wiring Diagram - Except Mexico

Nissan Maxima. Wiring Diagram - Except Mexico

Nissan Maxima. Wiring Diagram - Except Mexico

Nissan Maxima. Wiring Diagram - Except Mexico

Nissan Maxima. Wiring Diagram - Except Mexico

Nissan Maxima. Wiring Diagram - Except Mexico

Nissan Maxima. Wiring Diagram - Except Mexico

Nissan Maxima. Wiring Diagram - Except Mexico

Nissan Maxima. Wiring Diagram - Except Mexico

Nissan Maxima. Wiring Diagram - Except Mexico

    ECU diagnosis information
    DIAGNOSIS SENSOR UNIT Trouble Diagnosis with CONSULT DIAGNOSTIC CODE CHART NOTE:Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is elimi ...
