Description
DTC B1049 - B1052, B1054 - B1057 DRIVER AIRBAG MODULE
The driver air bag module is dual stage and wired to the air bag diagnosis
sensor unit through the spiral cable.
The air bag diagnosis sensor unit will
monitor for opens and shorts in detected lines to the driver air bag module
including the spiral cable.
PART LOCATION
DTC Logic

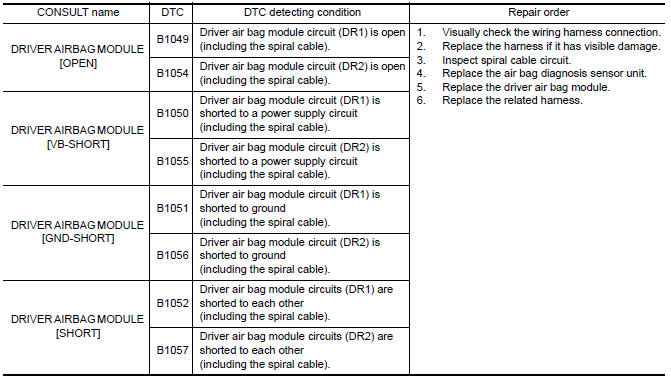

DTC DETECTION LOGIC
With CONSULT

DTC CONFIRMATION PROCEDURE (With CONSULT)
1.CHECK SELF-DIAG RESULT
2.ERASE SELF-DIAG RESULT
Erase the DTC using CONSULT.
DTC CONFIRMATION PROCEDURE (Without CONSULT)
1.CHECK SELF-DIAG RESULT
NOTE:
SRS will not enter diagnosis mode if
no malfunction is detected in user mode.
Diagnosis Procedure
1.HARNESS CONNECTOR
Visually inspect all applicable harness connectors for the following:
NOTE:
All harness connectors should be
inspected from the air bag diagnosis sensor unit to the end component
(including any in-line connectors).
2.CONFIRM DTC
3.WIRING HARNESS
Check the wiring harness for visible damage.
NOTE:
The entire wiring harness should be
inspected from the air bag diagnosis sensor unit to the end component
(including any in-line connectors).

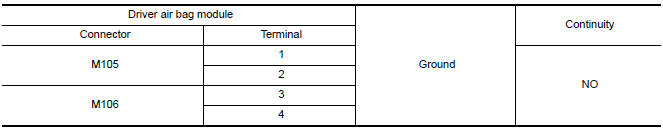

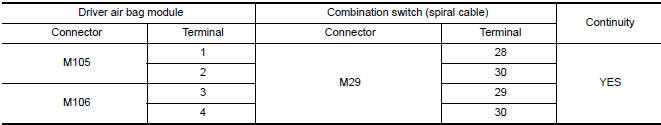

4.CHECK SPIRAL CABLE CIRCUIT


5.CONFIRM DTC
6.AIR BAG DIAGNOSIS SENSOR UNIT
7.FRONT DRIVER AIR BAG MODULE
8.RELATED HARNESS
Replace the related harness.
