Nissan Maxima Service and Repair Manual: Wiring diagram

MONOCHROME DISPLAY

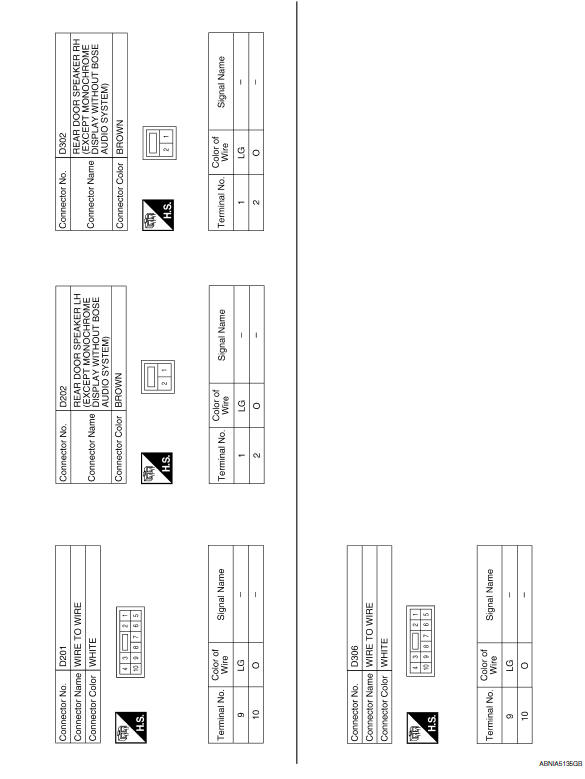

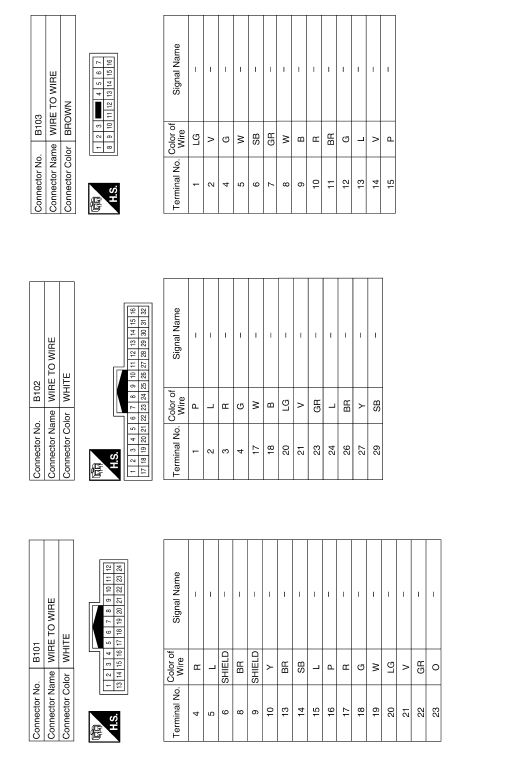

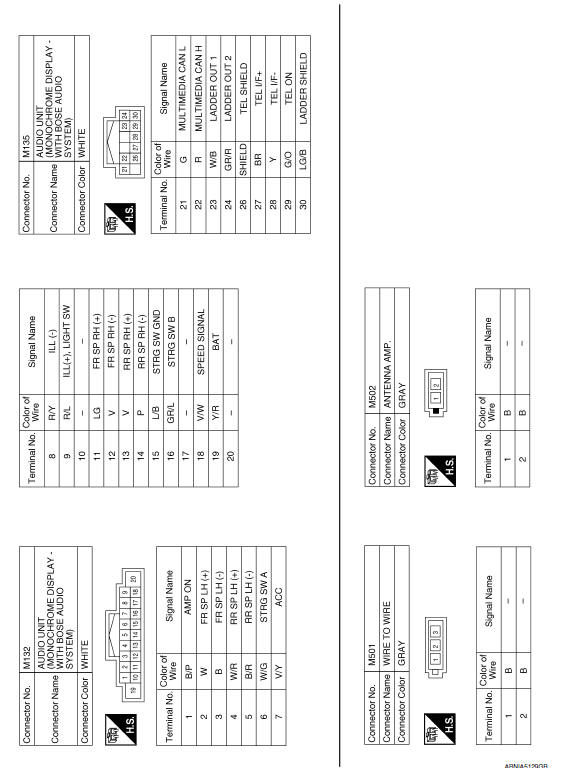

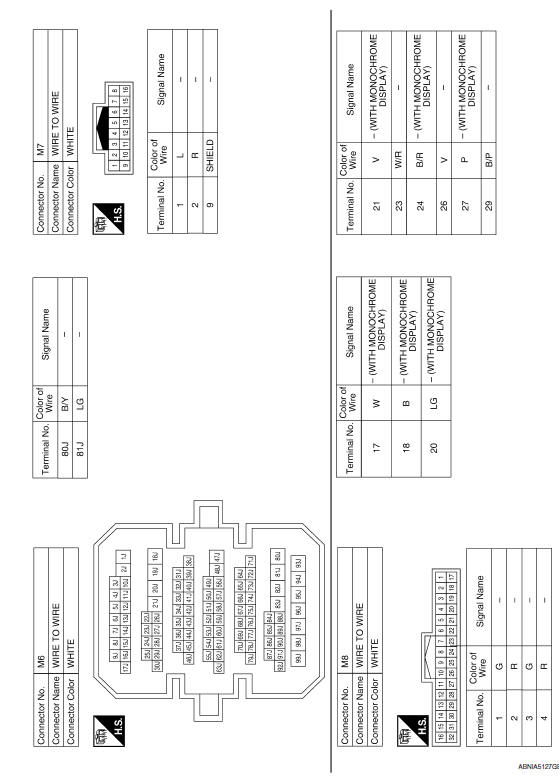

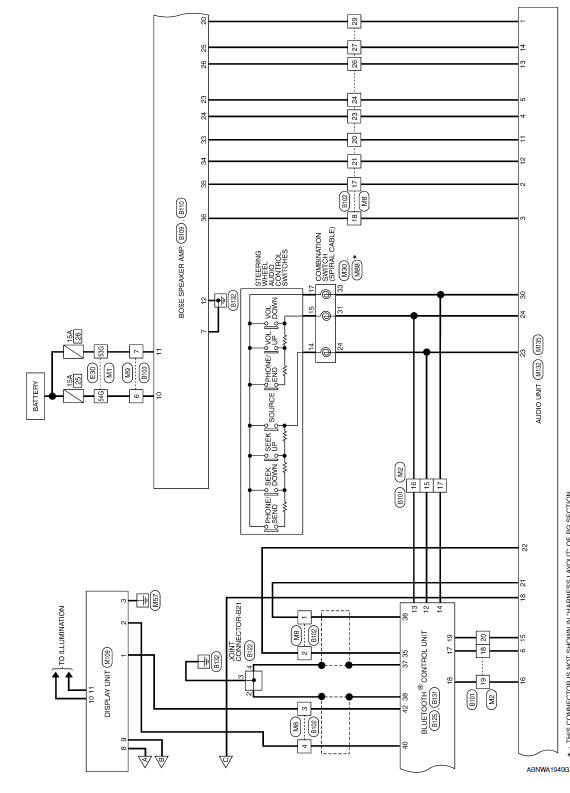

Wiring Diagram - With BOSE Audio System

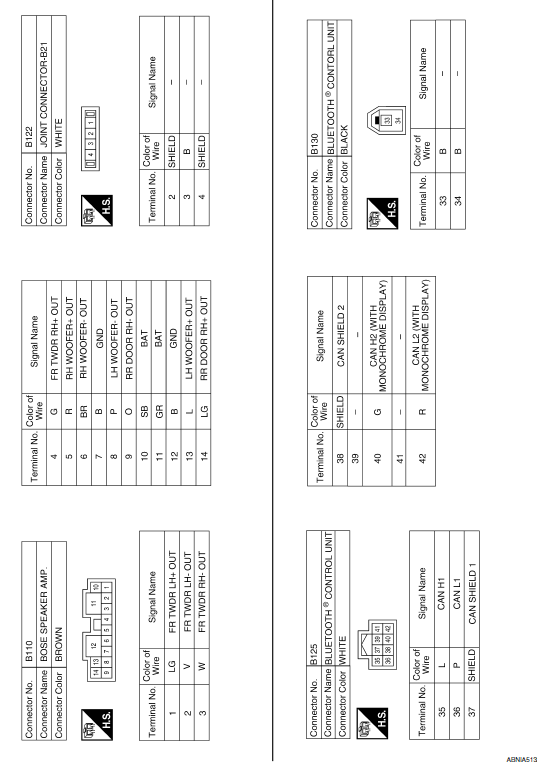

Nissan Maxima. Wiring Diagram - With BOSE Audio System

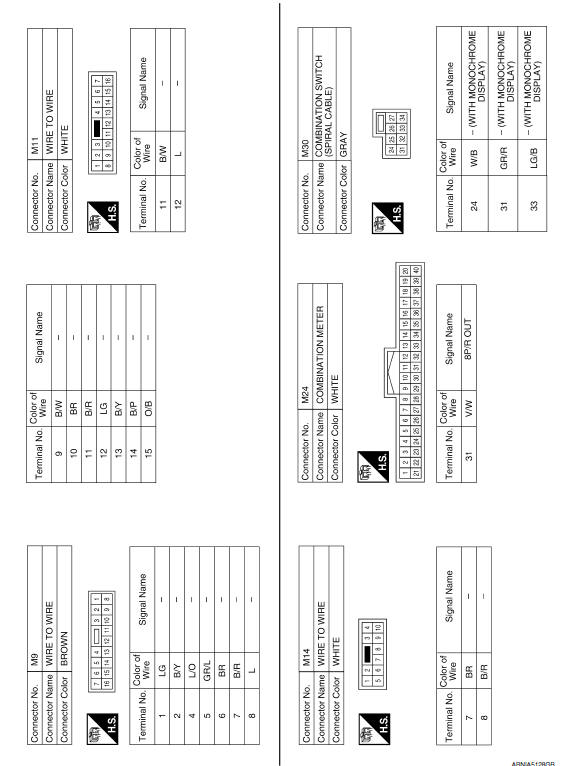

Nissan Maxima. Wiring Diagram - With BOSE Audio System

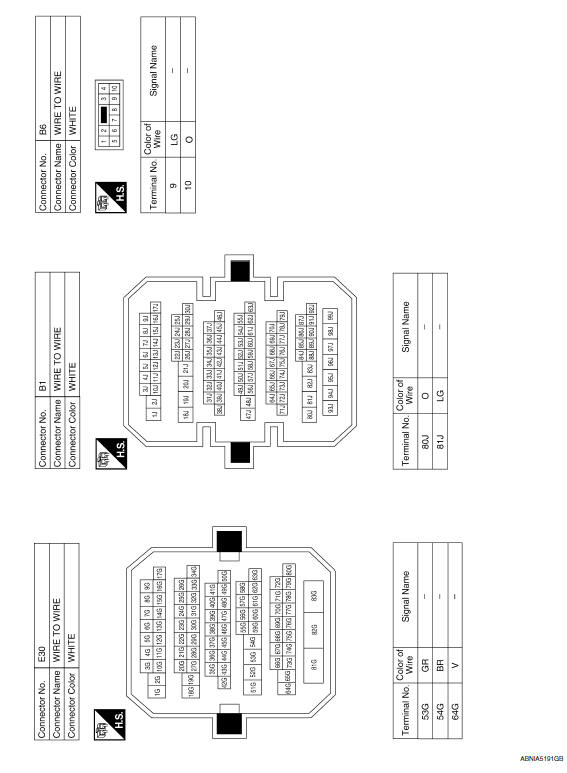

Nissan Maxima. Wiring Diagram - With BOSE Audio System

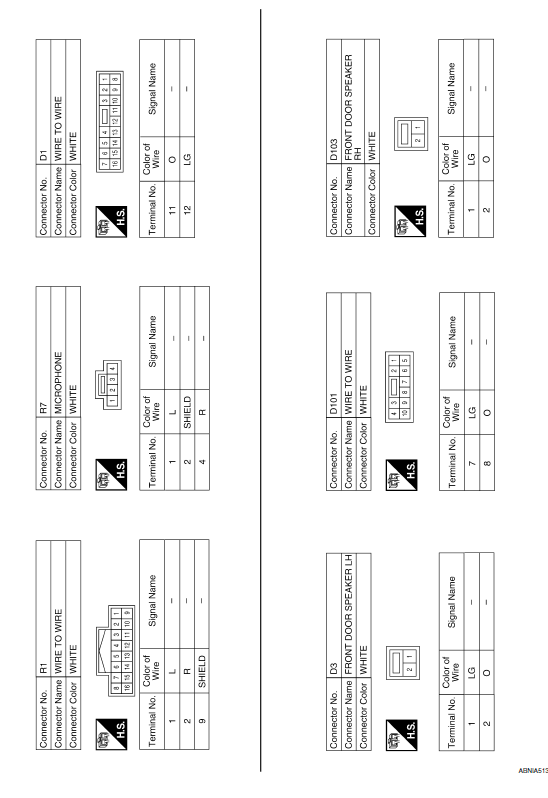

Nissan Maxima. Wiring Diagram - With BOSE Audio System

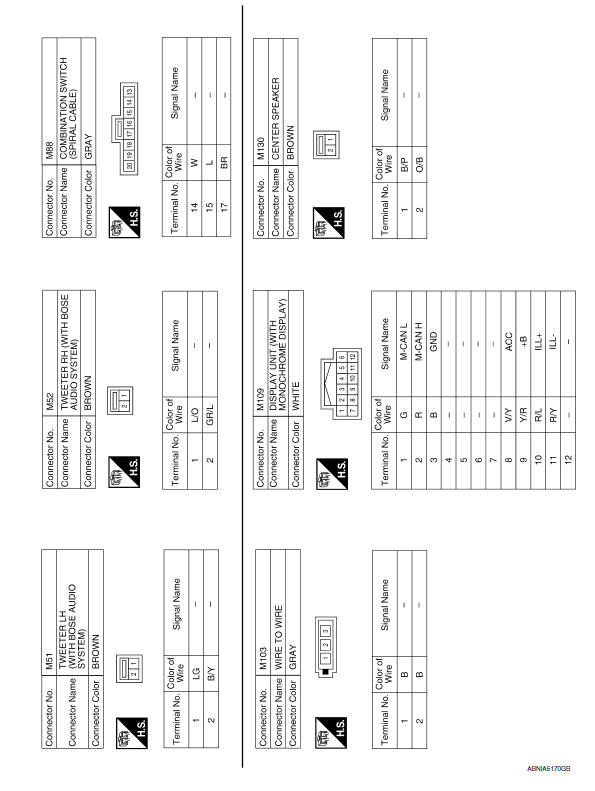

Nissan Maxima. Wiring Diagram - With BOSE Audio System

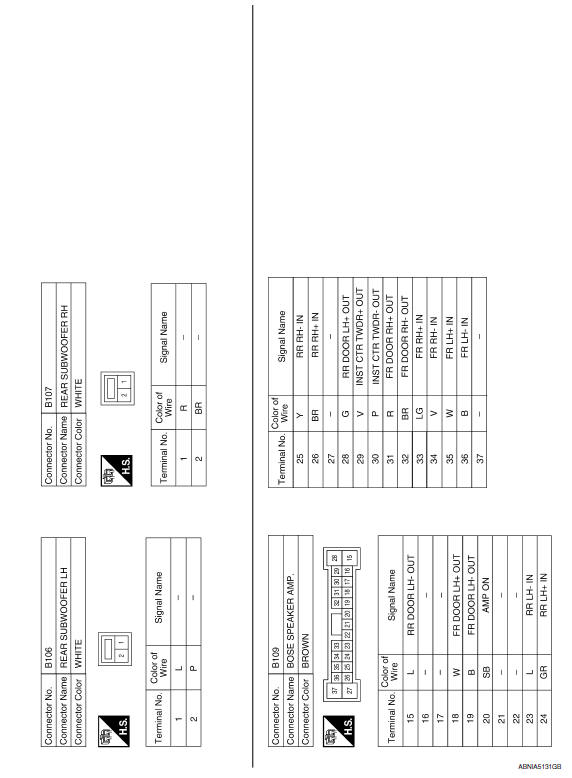

Nissan Maxima. Wiring Diagram - With BOSE Audio System

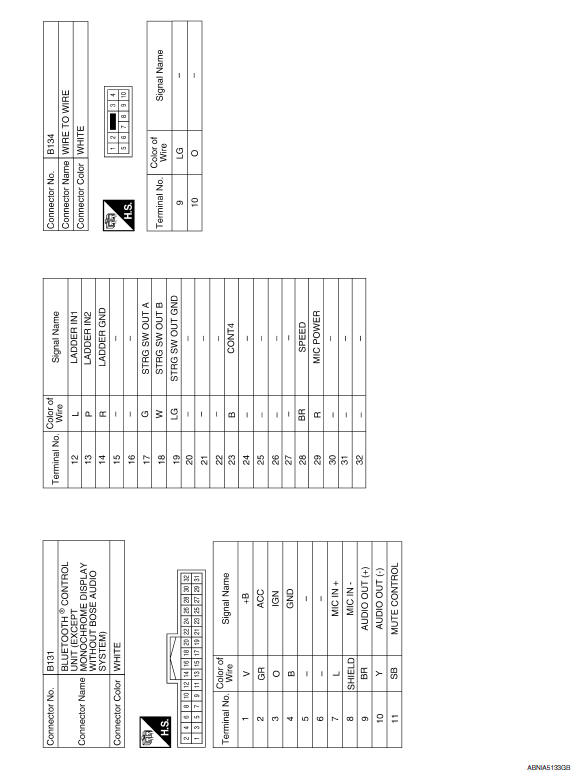

Nissan Maxima. Wiring Diagram - With BOSE Audio System

Nissan Maxima. Wiring Diagram - With BOSE Audio System

Nissan Maxima. Wiring Diagram - With BOSE Audio System

Nissan Maxima. Wiring Diagram - With BOSE Audio System

Nissan Maxima. Wiring Diagram - With BOSE Audio System

Nissan Maxima. Wiring Diagram - With BOSE Audio System

Nissan Maxima. Wiring Diagram - With BOSE Audio System

Nissan Maxima. Wiring Diagram - With BOSE Audio System
