Nissan Maxima Service and Repair Manual: Wiring diagram

COLOR DISPLAY

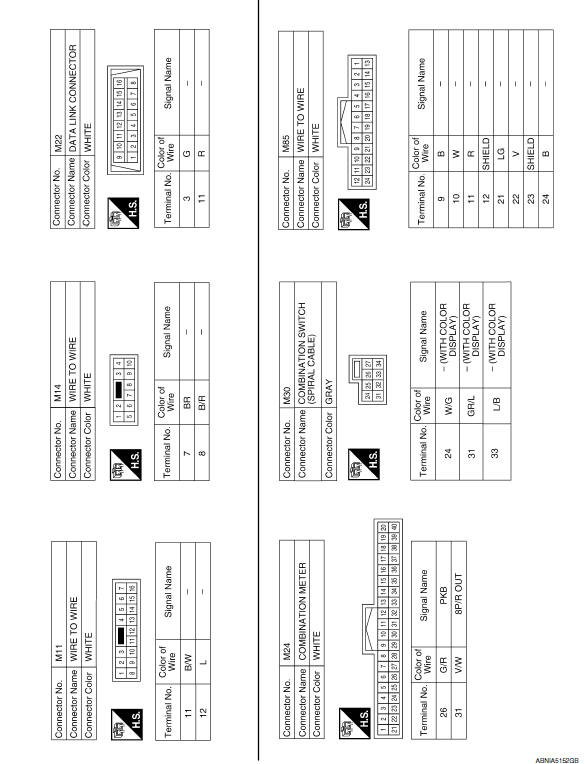

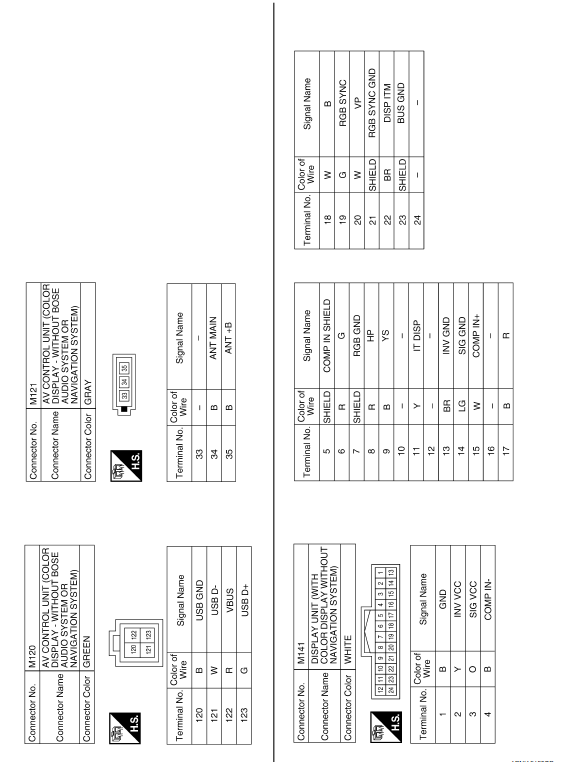

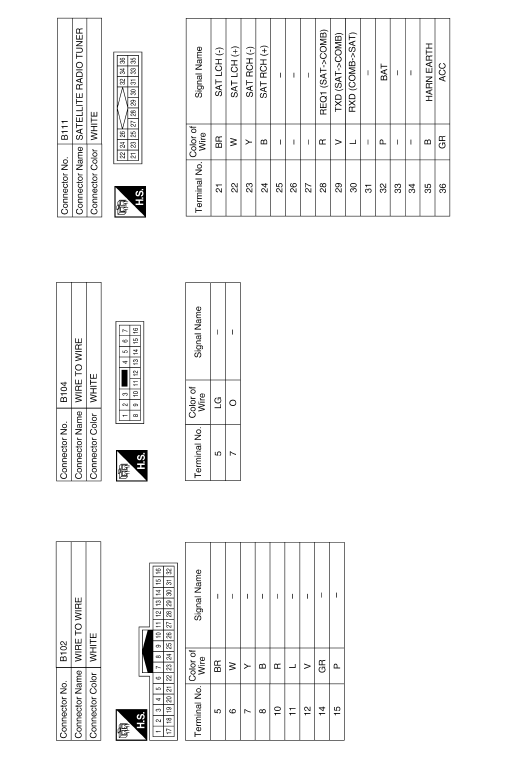

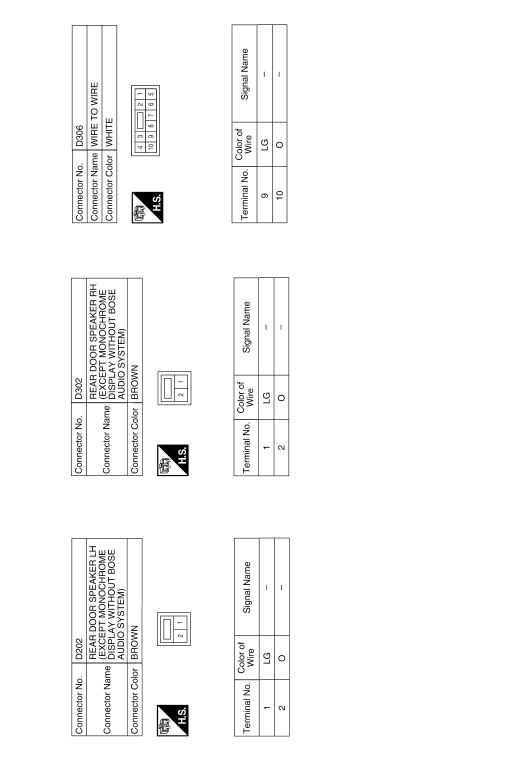

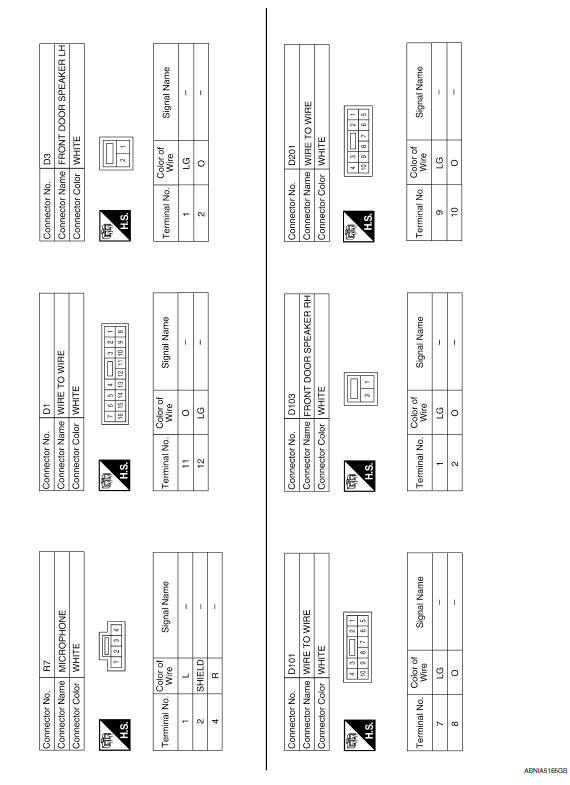

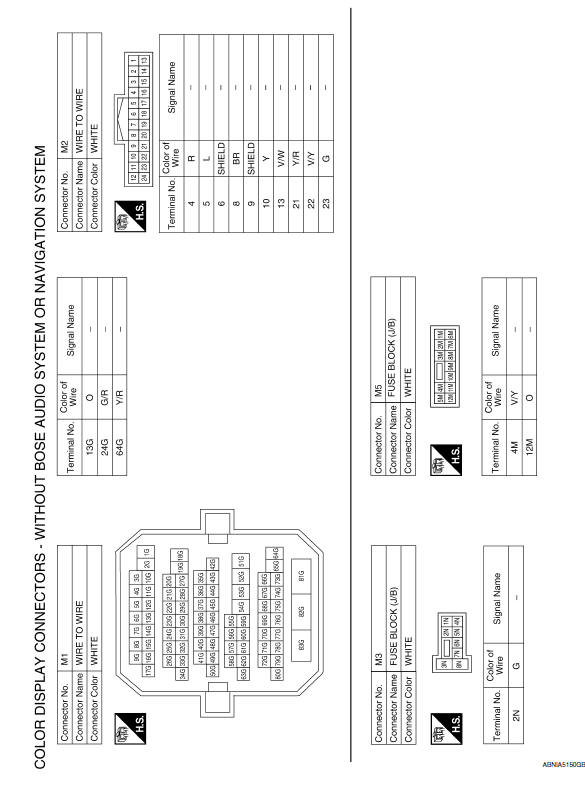

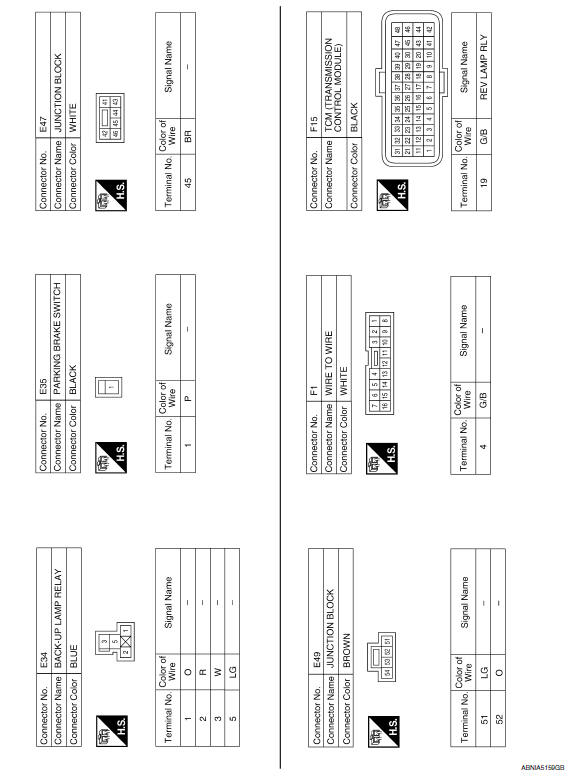

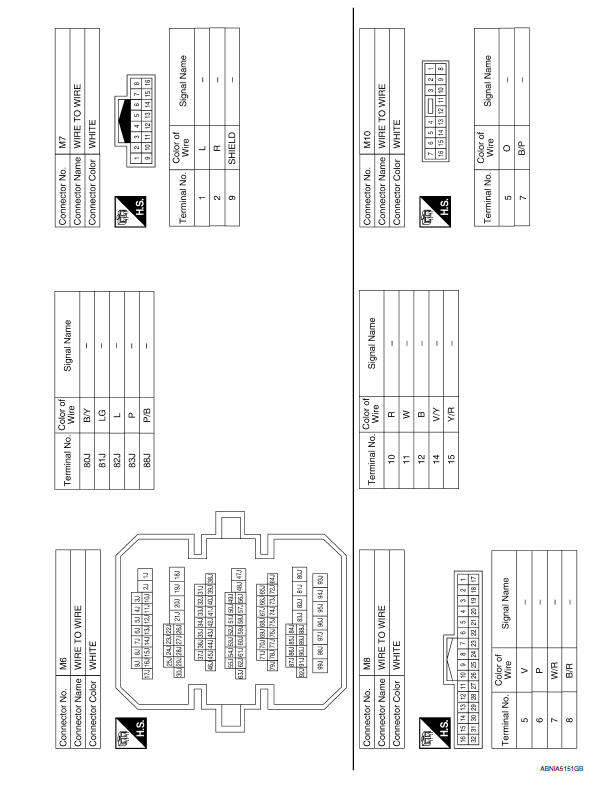

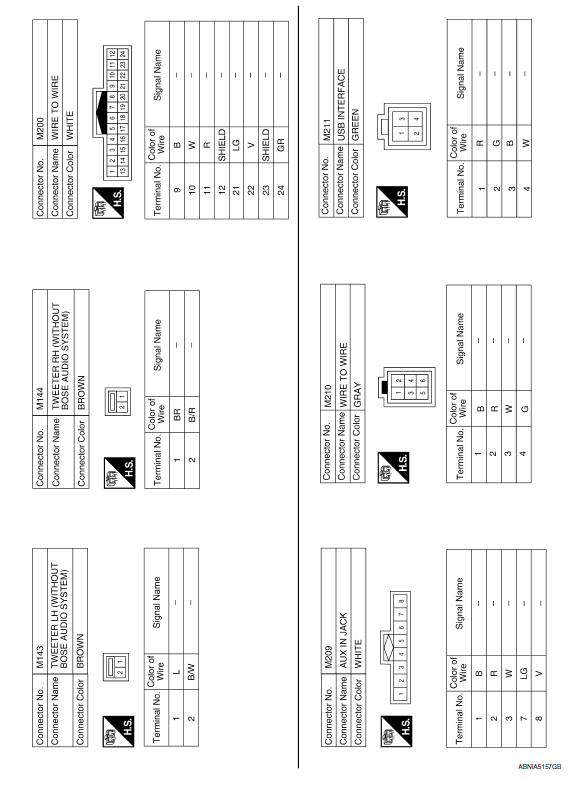

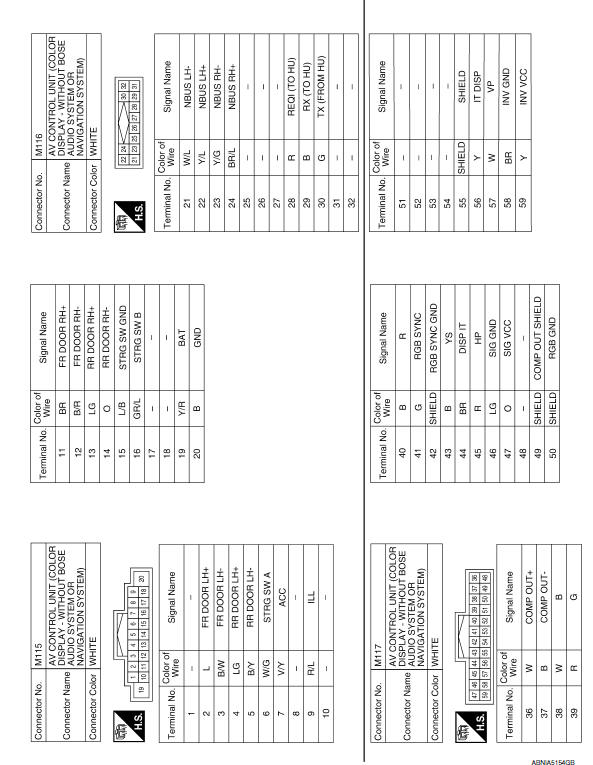

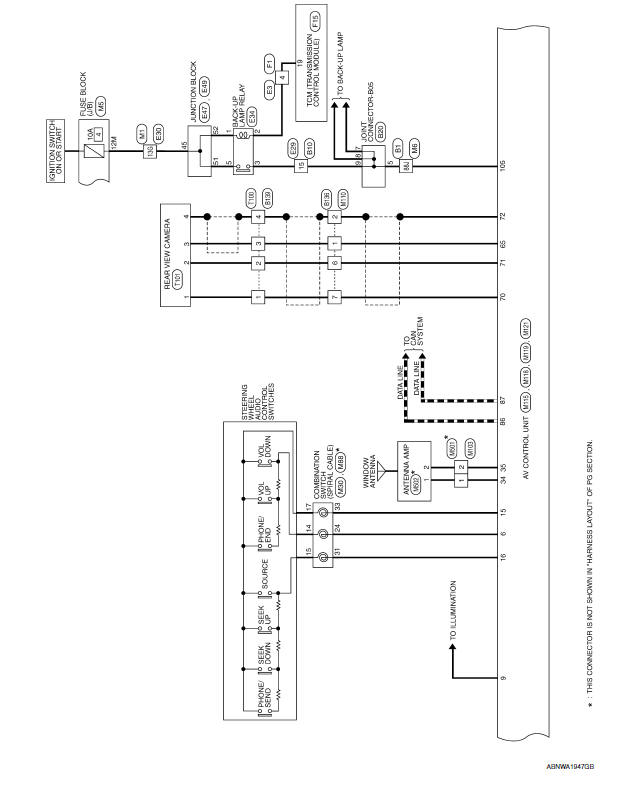

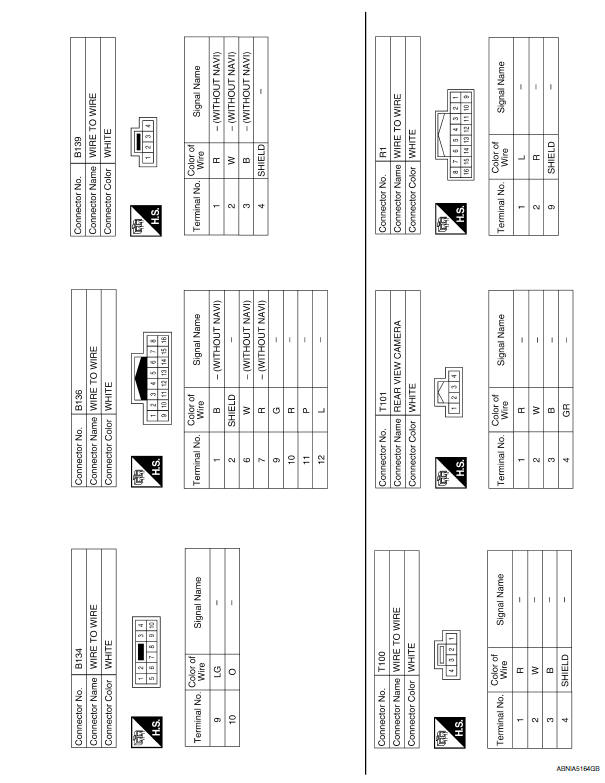

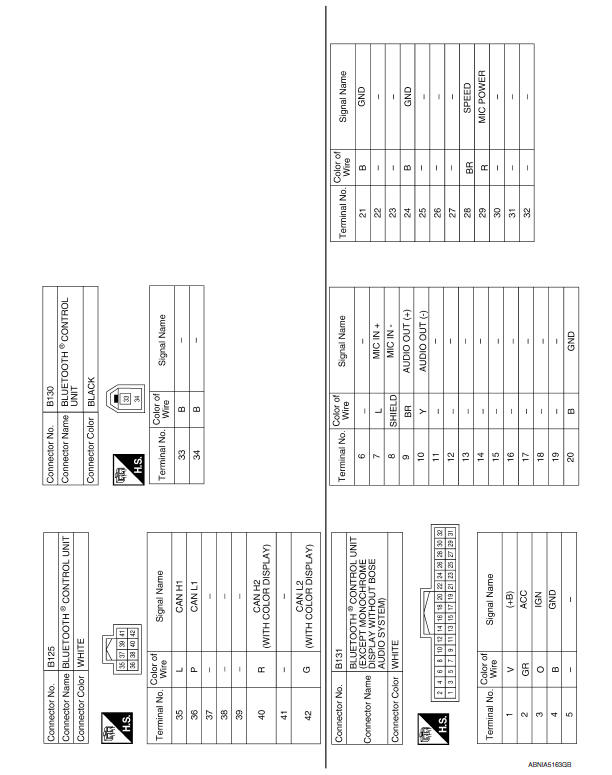

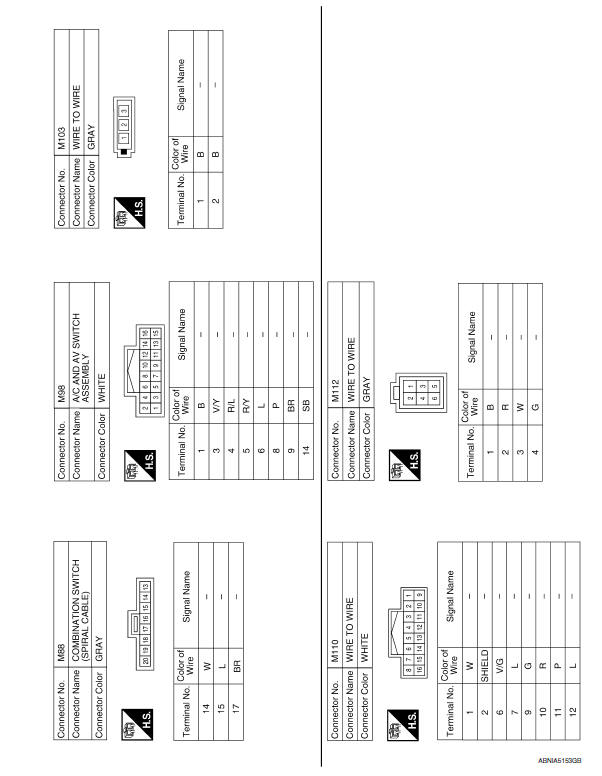

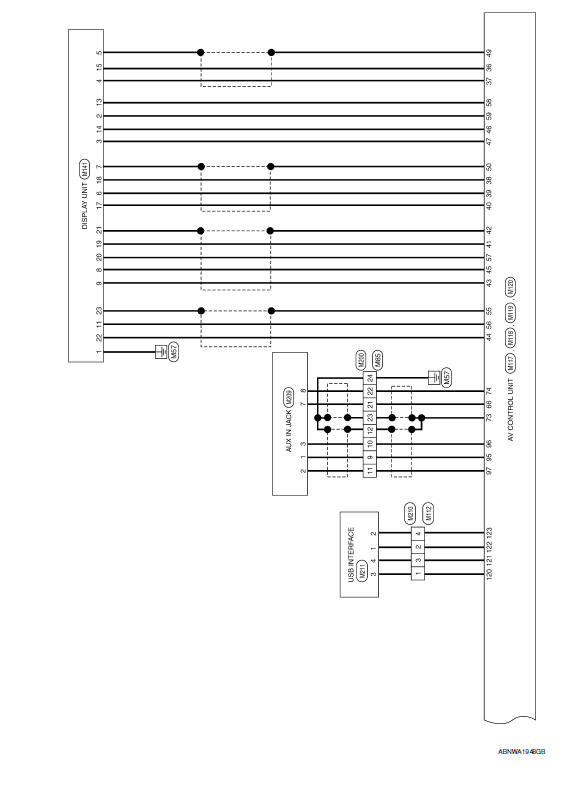

Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

Nissan Maxima. Wiring Diagram - Without BOSE Audio System Without Navigation System

    Bluetooth control unit
    Reference Value TERMINAL LAYOUT PHYSICAL VALUES ...
