Nissan Maxima Service and Repair Manual: Wiring diagram

COLOR DISPLAY

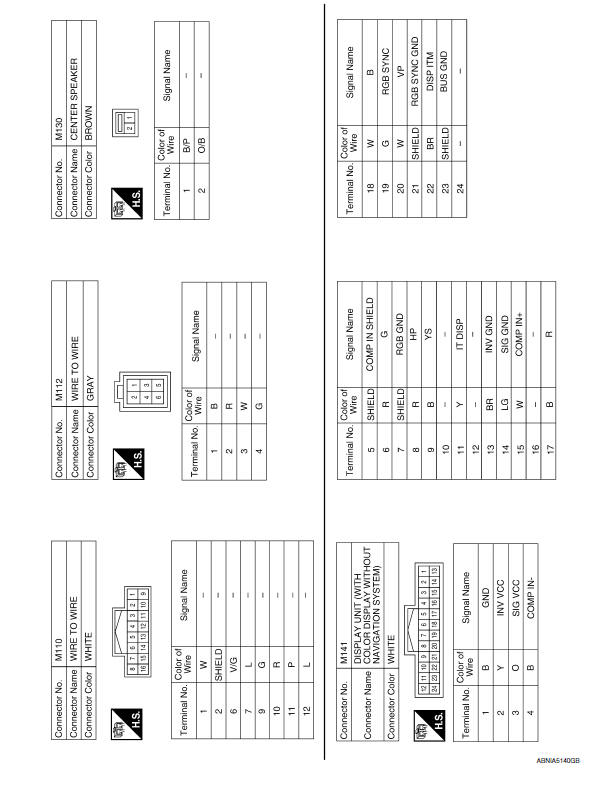

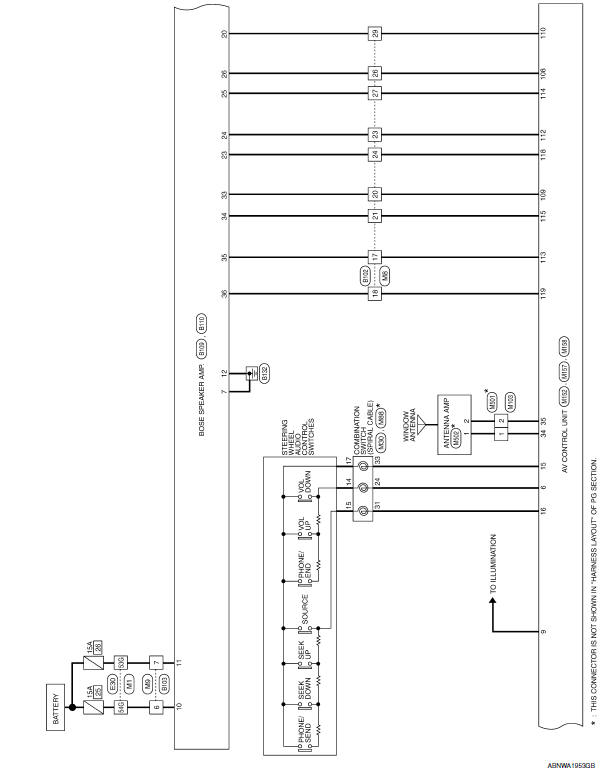

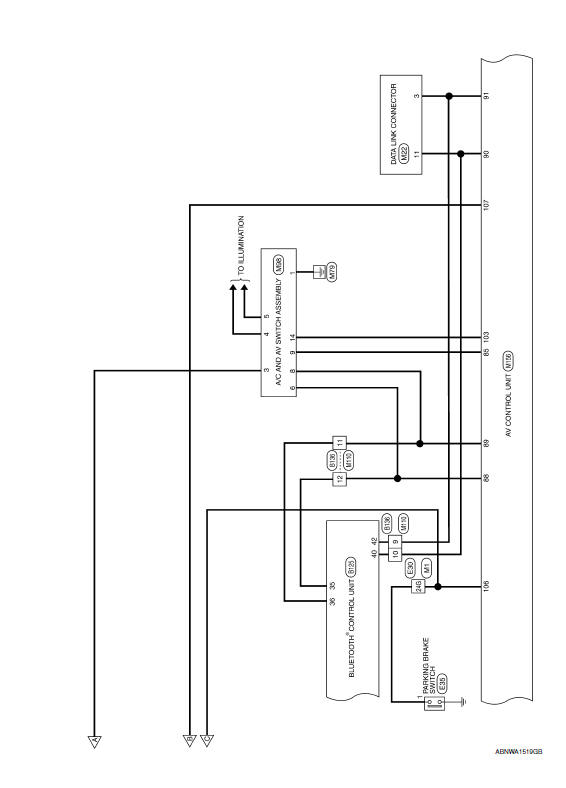

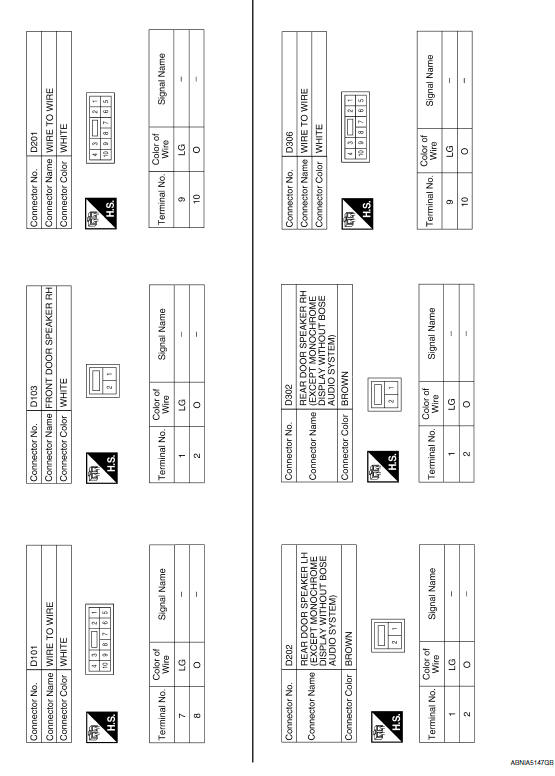

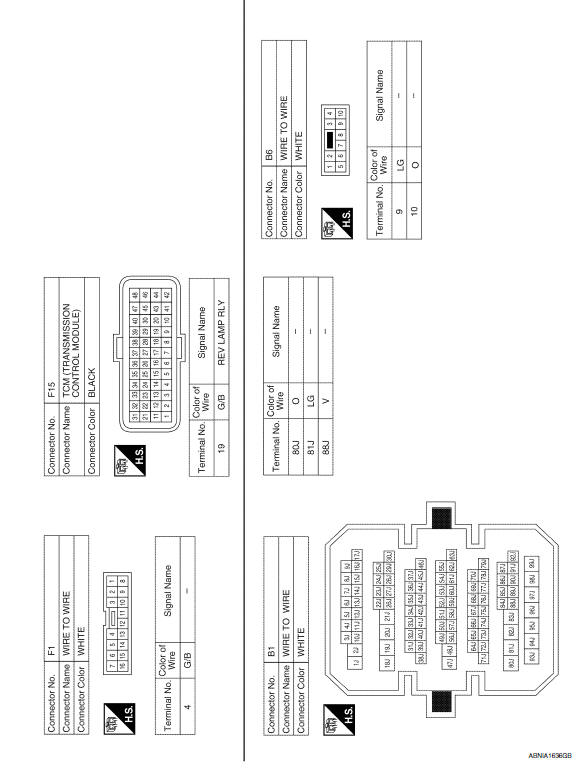

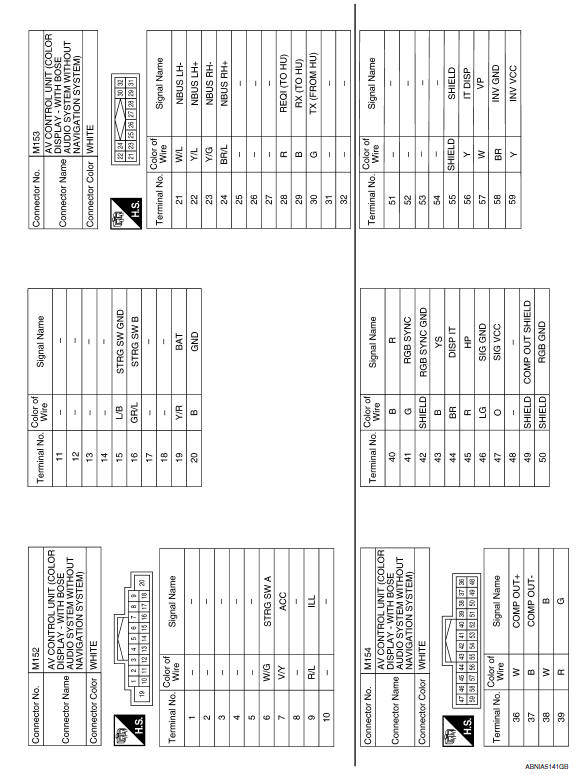

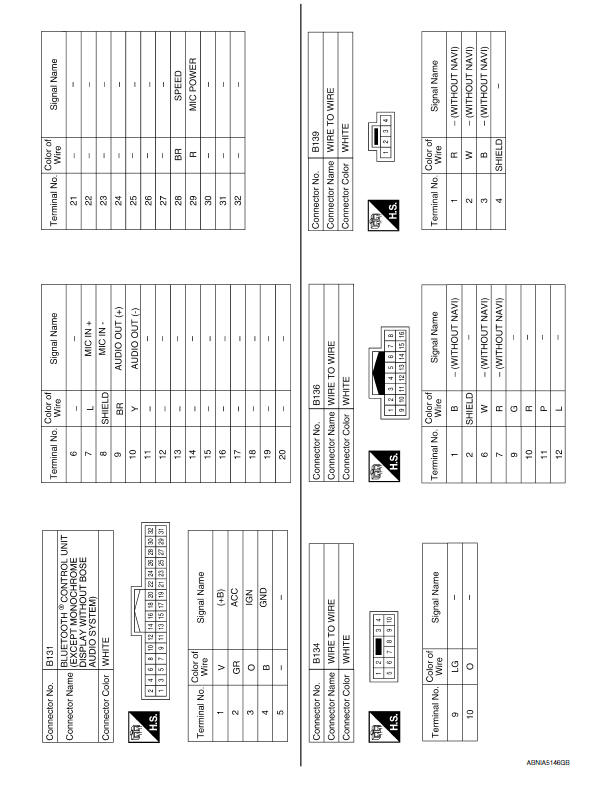

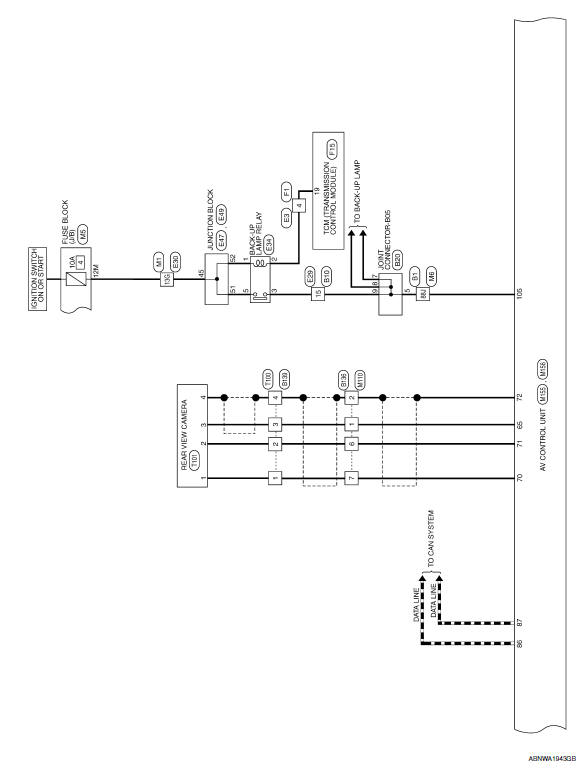

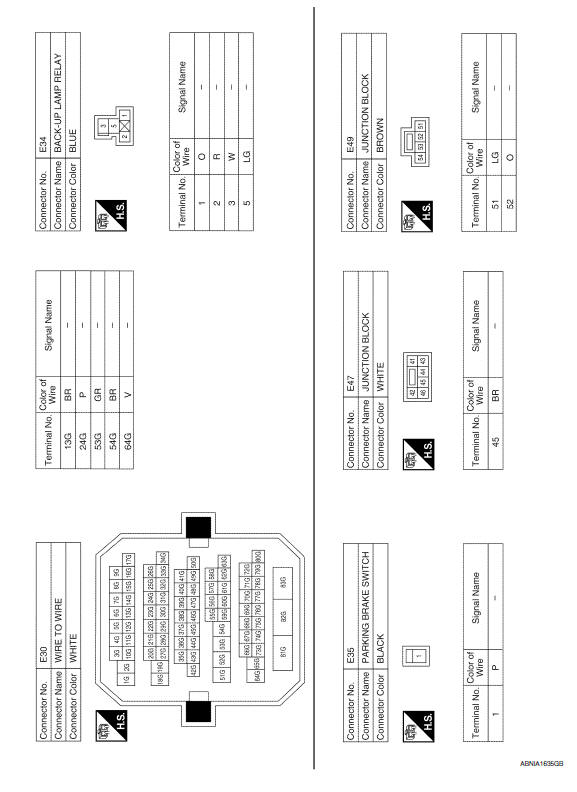

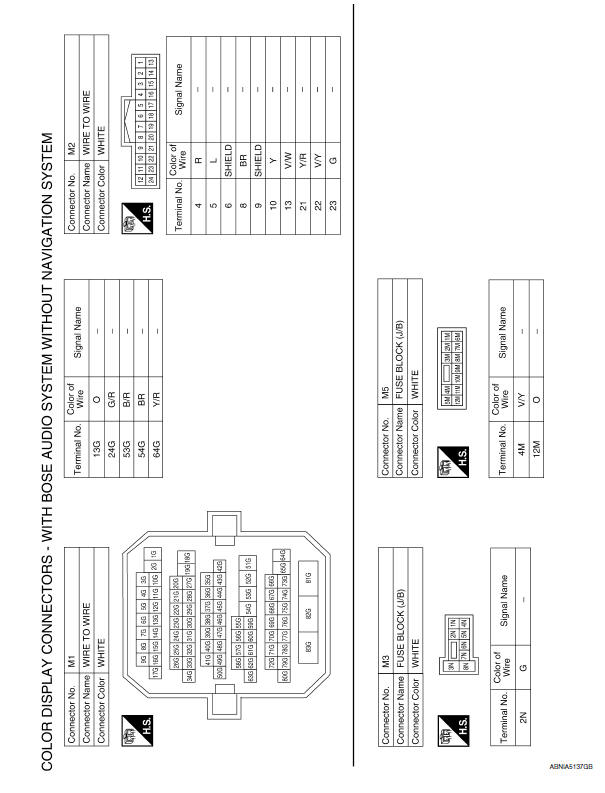

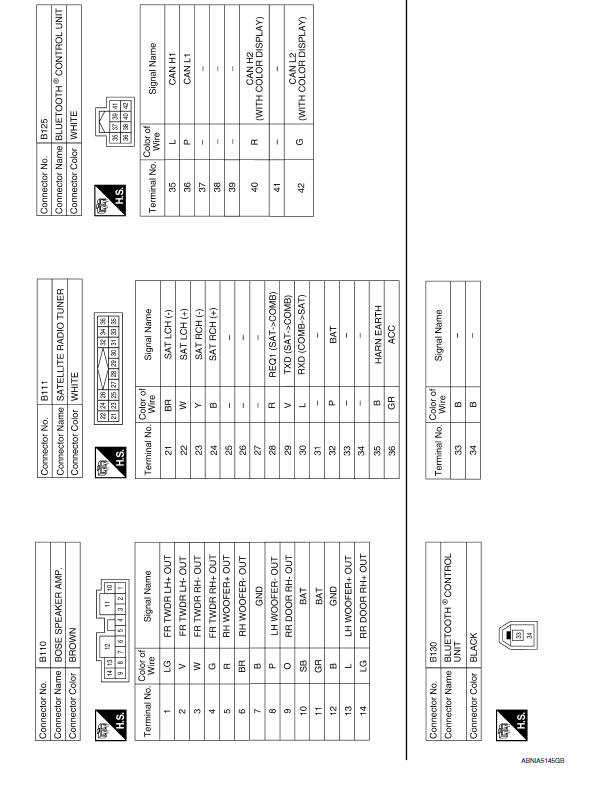

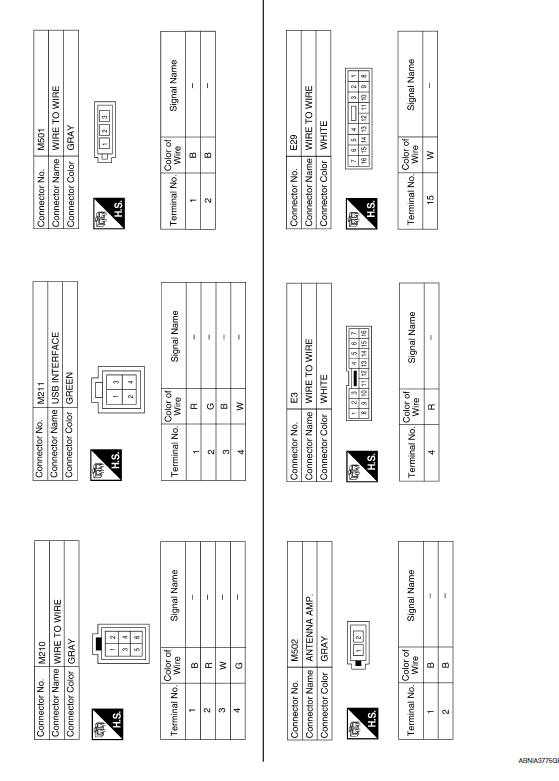

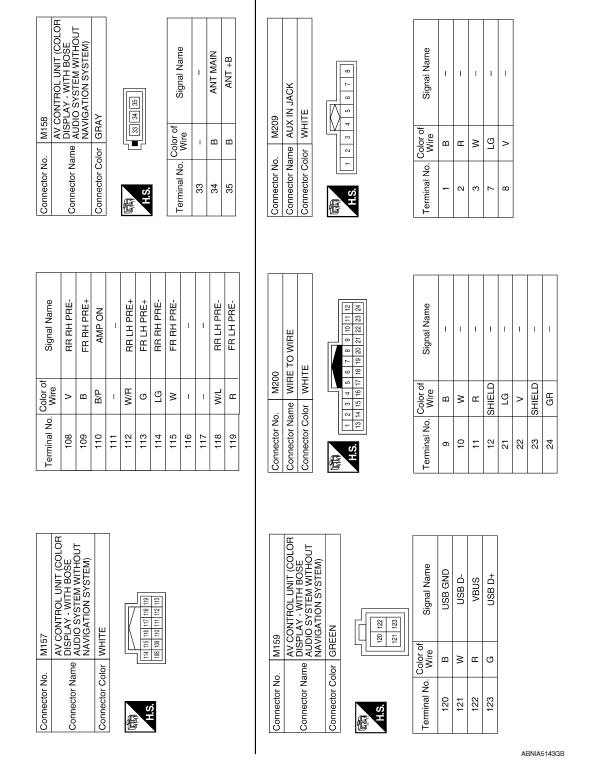

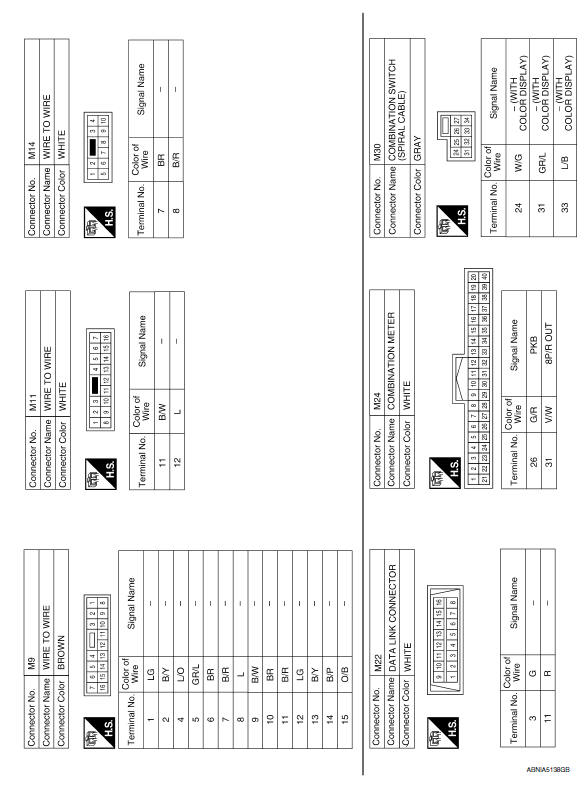

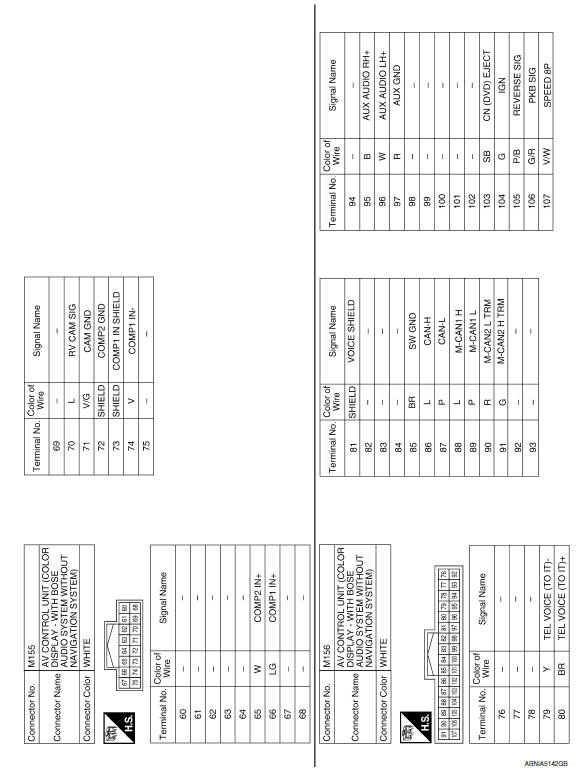

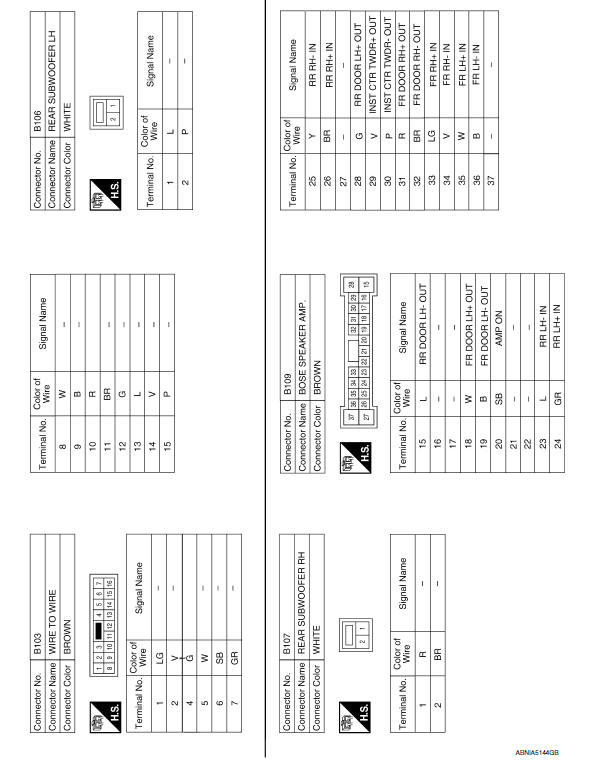

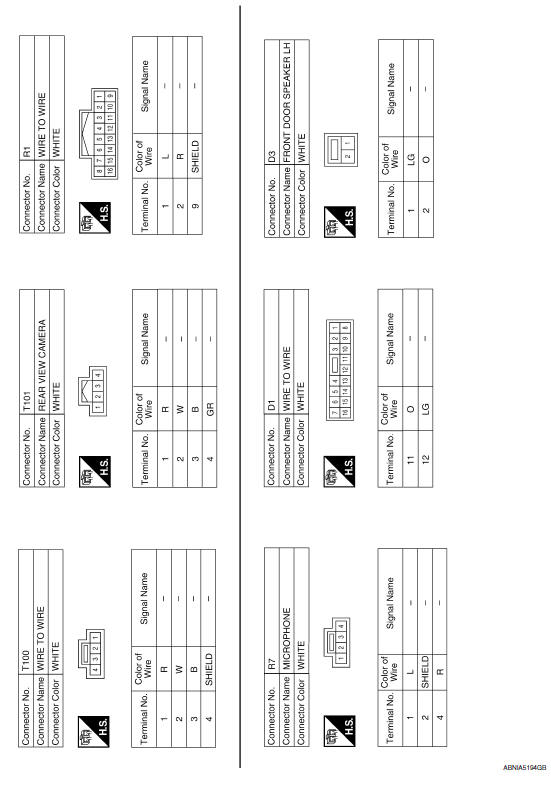

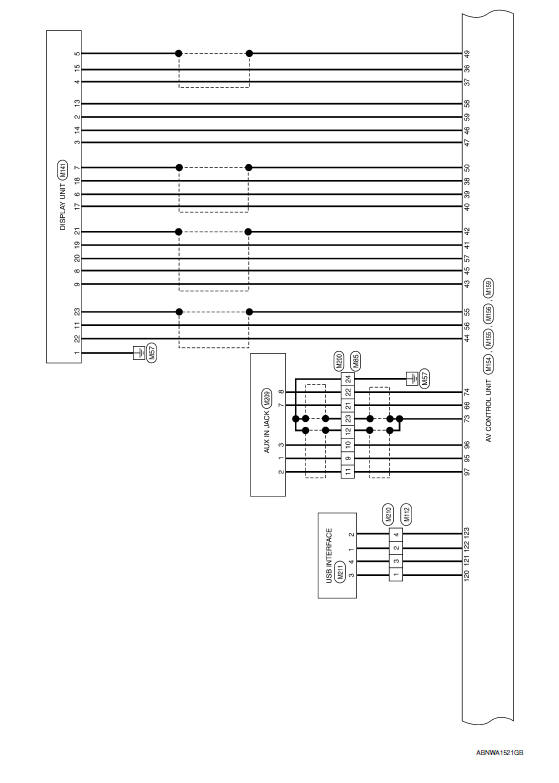

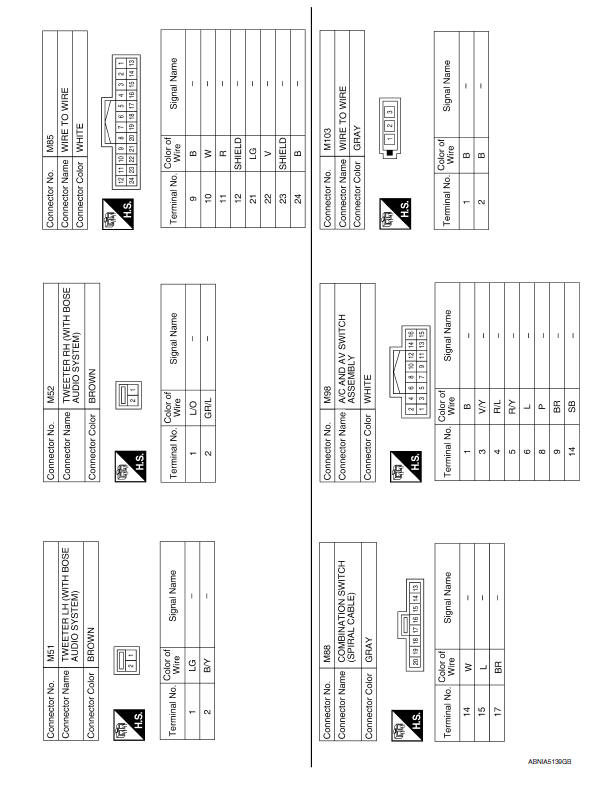

Wiring Diagram - With BOSE Audio system Without Navigation System

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY

Nissan Maxima. COLOR DISPLAY
