Nissan Maxima Service and Repair Manual: Illumination

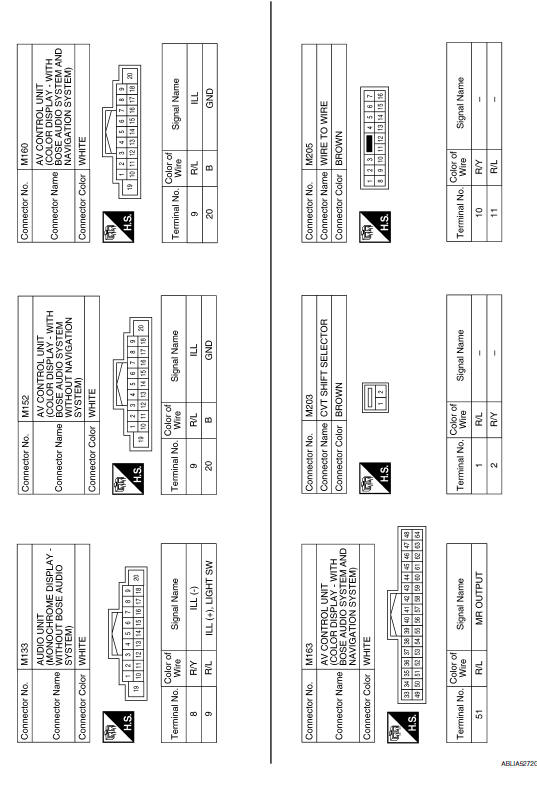

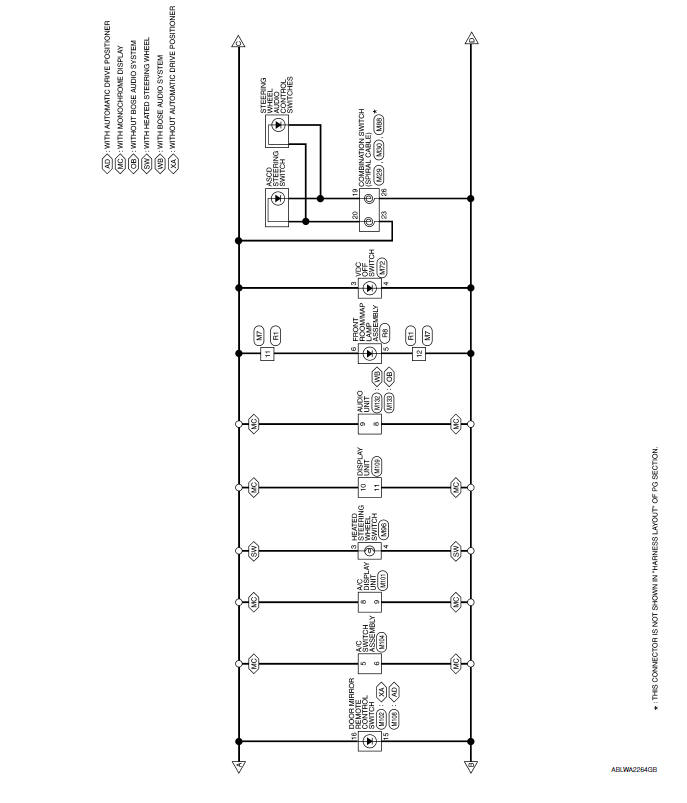

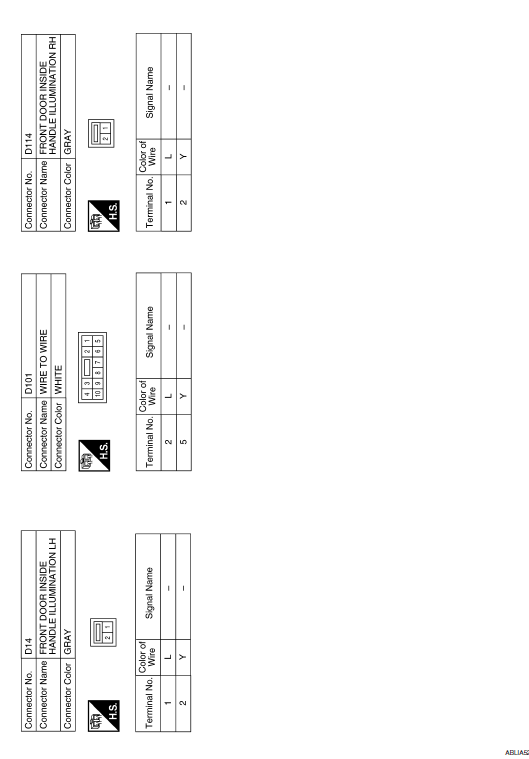

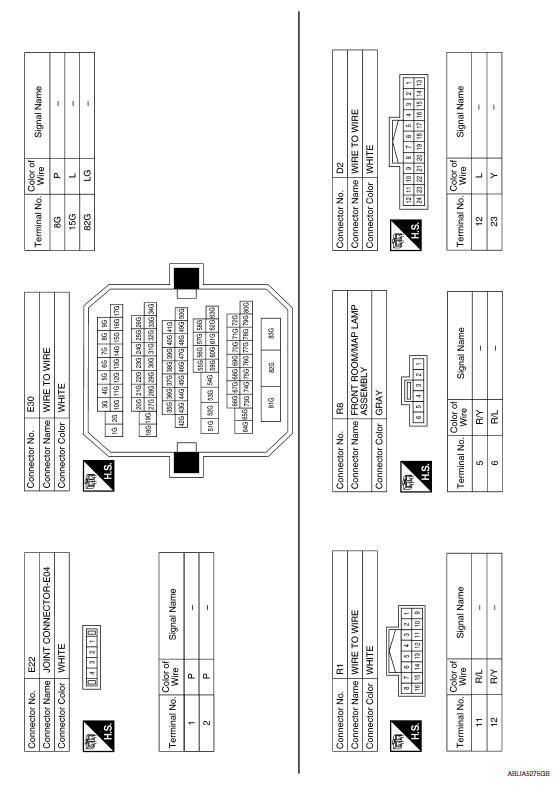

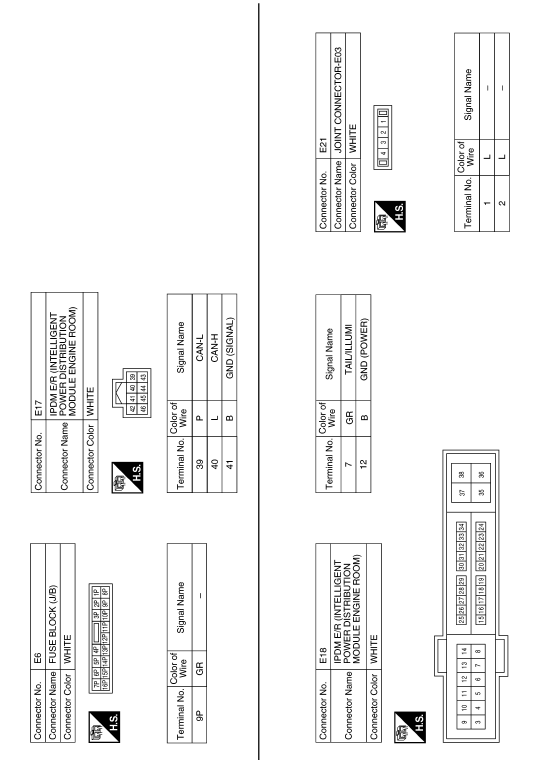

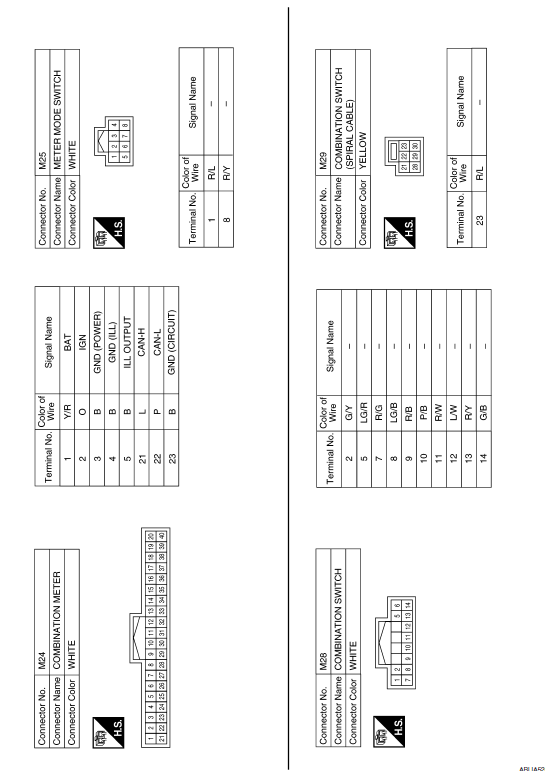

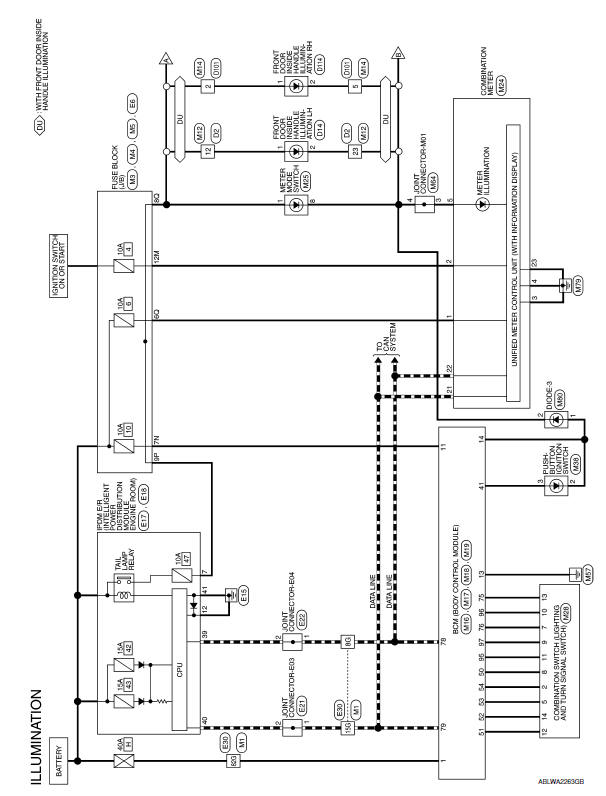

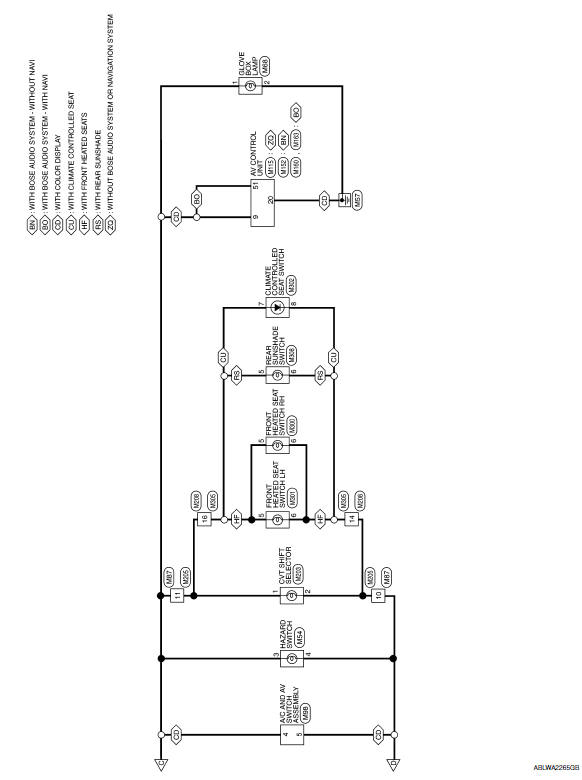

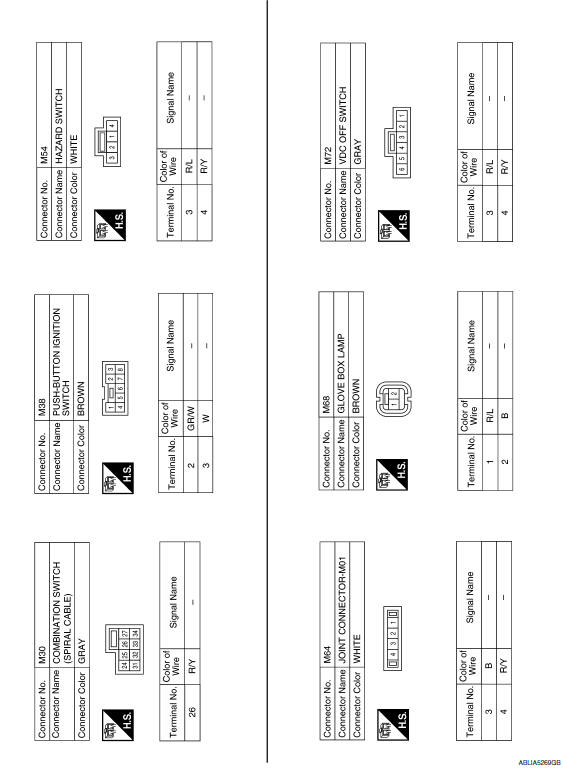

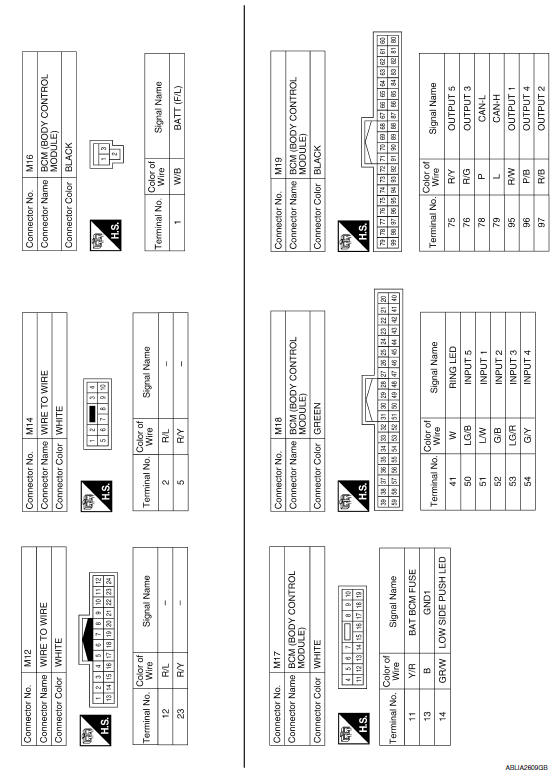

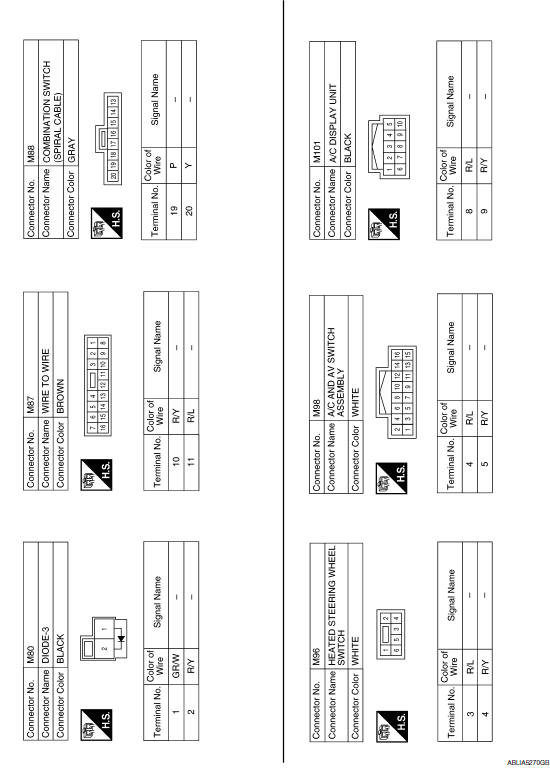

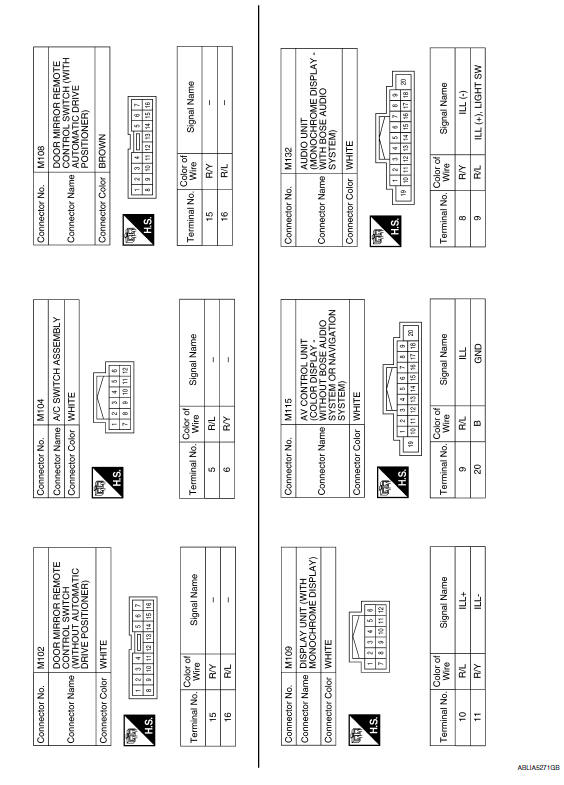

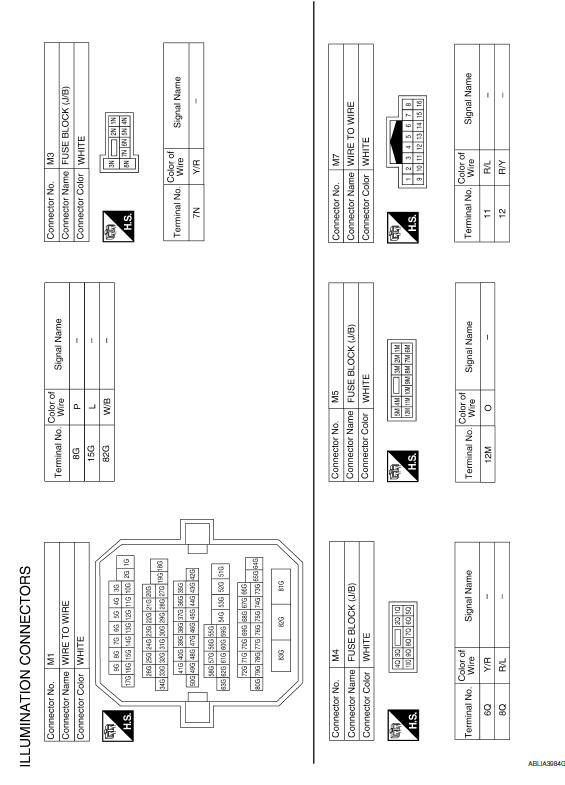

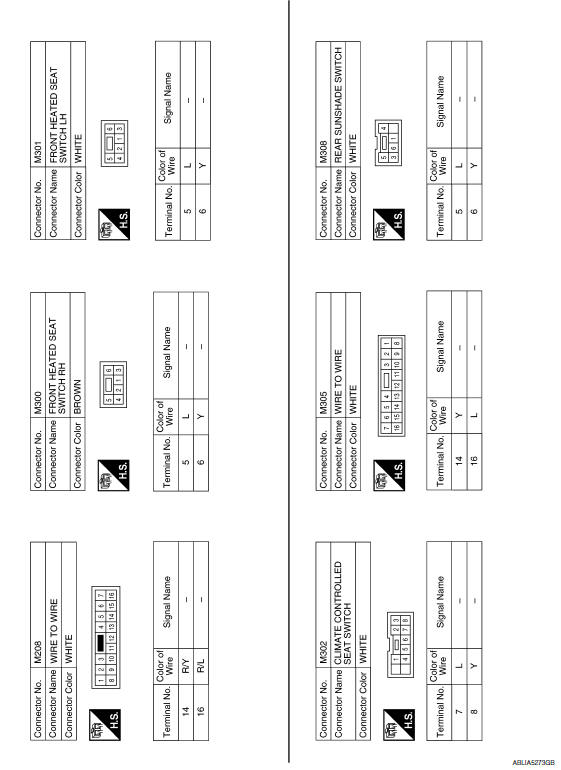

Wiring Diagram

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

Nissan Maxima. ILLUMINATION

    Interior room lamp
    Wiring Diagram ...

    Symptom diagnosis
    INTERIOR LIGHTING SYSTEM SYMPTOMS Symptom Table CAUTION: Perform the self-diagnosis with CONSULT before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected. ...
