Nissan Maxima Service and Repair Manual: Audio display unit

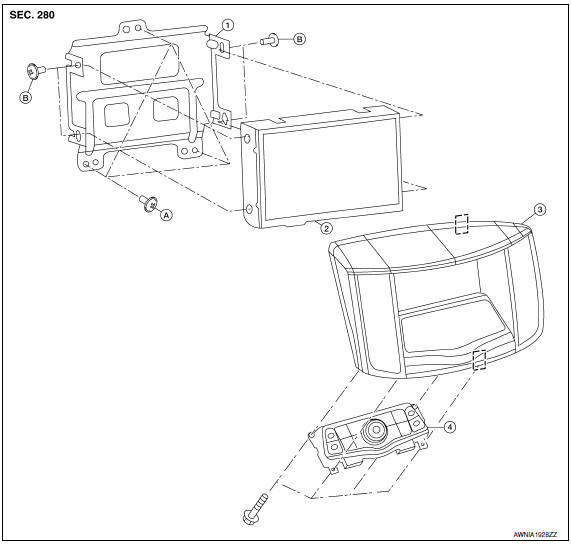

Removal and Installation
- Audio display unit bracket
- Audio display unit
- Cluster lid D
- Multifunction switch
- Audio display unit bracket screws
- Audio display unit screws
Metal Clip
REMOVAL
- Remove cluster lid D. Refer to IP-18, "Removal and Installation".
- Remove the audio display unit bracket screws (A).
- Pull out the audio display unit and bracket assembly (1).
- Disconnect the harness connectors from the audio display unit and bracket assembly (1) and remove.
- Remove the audio display unit screws on the sides and the audio display unit from the audio display unit brackets.
INSTALLATION
Installation is in the reverse order of removal.
Multifunction switch
Removal and Installation
REMOVAL
Remove cluster lid D. Refer to IP-18, "Removal and Installation".
Remove the four multifunction switch screws (A) and the
multifunction
swit ...
USB connector
Removal and Installation
REMOVAL
Remove the center console assembly. Refer to IP-14, "Removal and
Installation".
Release the pawl from the back of the center console to remove
t ...
