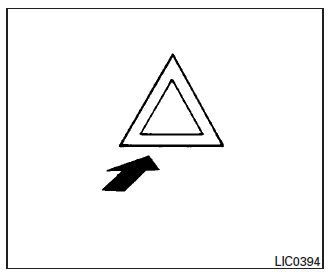

Push the switch on to warn other drivers when you must stop or park under emergency conditions.
All turn signal lights flash.
WARNING
The flashers will operate with the ignition switch placed in any position.
Some jurisdictions may prohibit the use of the hazard warning flasher switch while driving.
