Replace the wiper blades if they are worn.

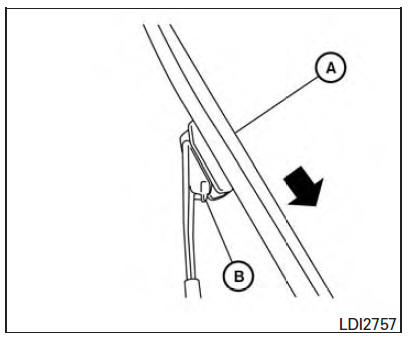

To replace the windshield wiper blades, follow the procedure below: 1. Lift the wiper arm away from the windshield.
2. Push the release tab B .
3. Move the wiper blade A down and remove.
4. Insert the new wiper blade onto the wiper arm until it clicks into place.
5. Push wiper on to windshield.
CAUTION

If you wax the surface of the hood, be careful not to let wax get into the washer nozzle D . This may cause clogging or improper windshield-washer operation. If wax gets into the nozzle, remove it with a needle or small pin C .
